ENGLISH
8

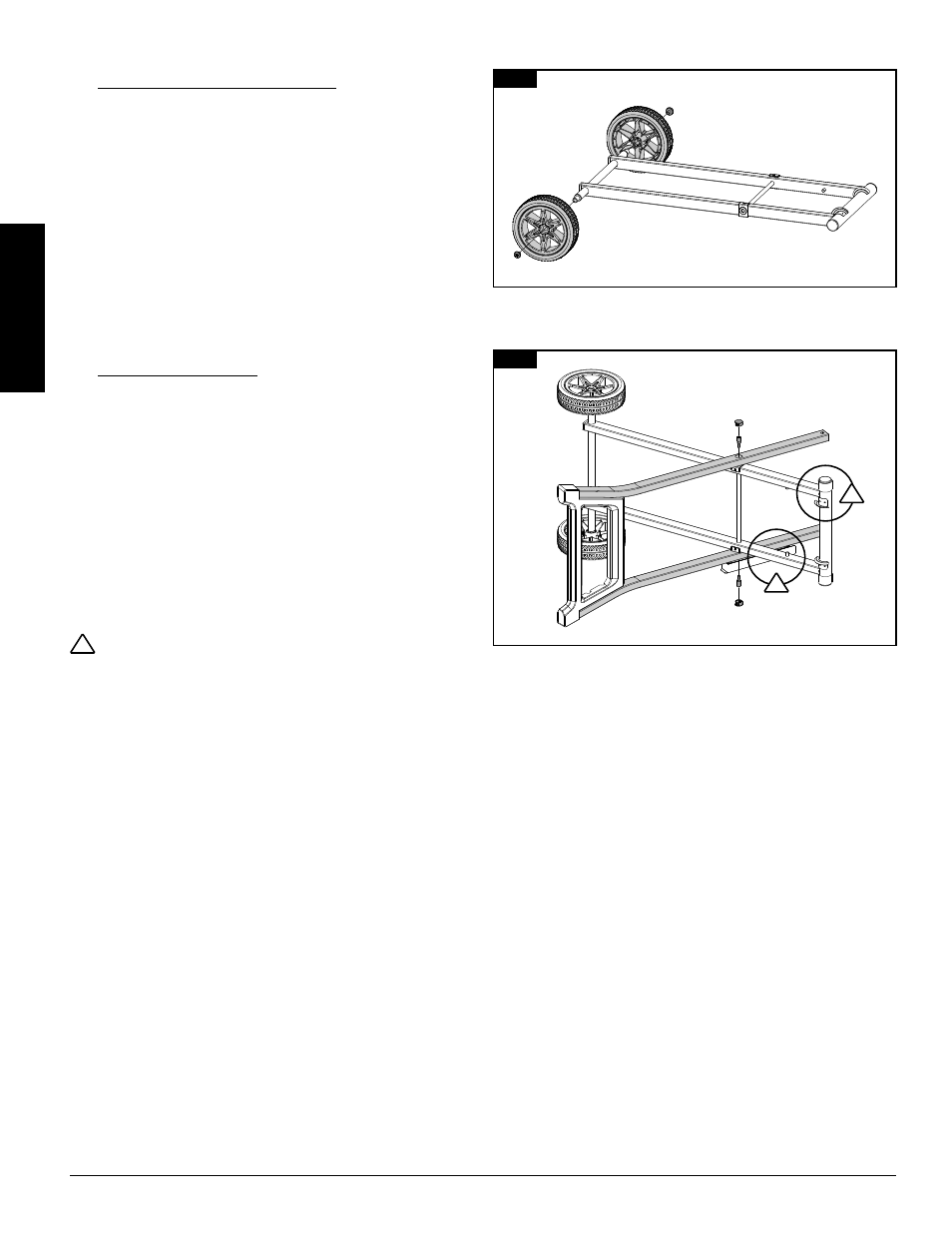

3. ATTACH WHEELS TO CART LEGS
Parts Required:
1 x Left Cart Foot Tube Assembly (#7)
2 x Wheels (#8)
2 x Wheel Lock Screw (#B)
Installation:
• Insert the Wheel into the axle, then insert the Wheel
Locking Screw into the axle hole and fasten into place.
Note illustration 3.
• Repeat for the other wheel on the opposite side.
4. CONNECT CART LEGS
Parts Required:
2 x Cart Lock Screw (#C)
2 x Screw Cap (#D)
Installation:
• Cross the Right Cart Tube Assembly with the Left Cart
Tube Assembly, shown in illustration 4 with the Right
Cart Tube Assembly on the outside.
• Secure the cross-section with a Cart Lock Screw, then
add the Screw Cap over the hole to finish.
• Repeat for the opposite side.
WARNING: When installing the Cart Foot Assembly,
please note that the Cart Foot Tube with strap are near
the ground and the Left Cart Assembly notches are facing
outward. Otherwise, it will cause an incorrect installation.
3
8
8
7
B
B
4
D
C
C
D
!
!
!
