USING THE CONTROL PANEL
EATON Powerware ® 9315 UPS (500–750 kVA) Installation and Operation Manual S 164201691 Rev 1 www.powerware.com 8-8
8.5.4 Event History Log Screen
Select History from the Events menu to display the Event History Log. The Event
History Log lists up to 400 system events in chronological order, with the most recent
event listed last. The end of the log (the most recent events) appears when you
display the screen; scroll upward to view older event listings.
Figure 8-7 shows the Event History Log screen.
Statistics Graphics Setup
Events
History
Active
Uninterruptible Power System
System Normal
Events Meters
Event History Log
Event Description
03
03
03
03
03
03
03 16:41:19.3
16:41:20.1
16:41:22.4
16:41:25.5
16:41:26.8
16:41:27.8
16:41:30.4
16:41:29.1 COMMAND: Keyswitch On
STATUS:
Auto Mode
COMMAND: Rectifier Commanded On
STATUS:
Inverter On
STATUS: Rectifier On
STATUS: Output Breaker (CB3) Closed
STATUS:
Bypass Breaker (CB4) Open
03 STATUS: Inverter Normal
Battery
48.5
Minutes
Date / Time
May
ALARM: NONE
NOTICES: NONE
4 MAY 1999 09:25:42

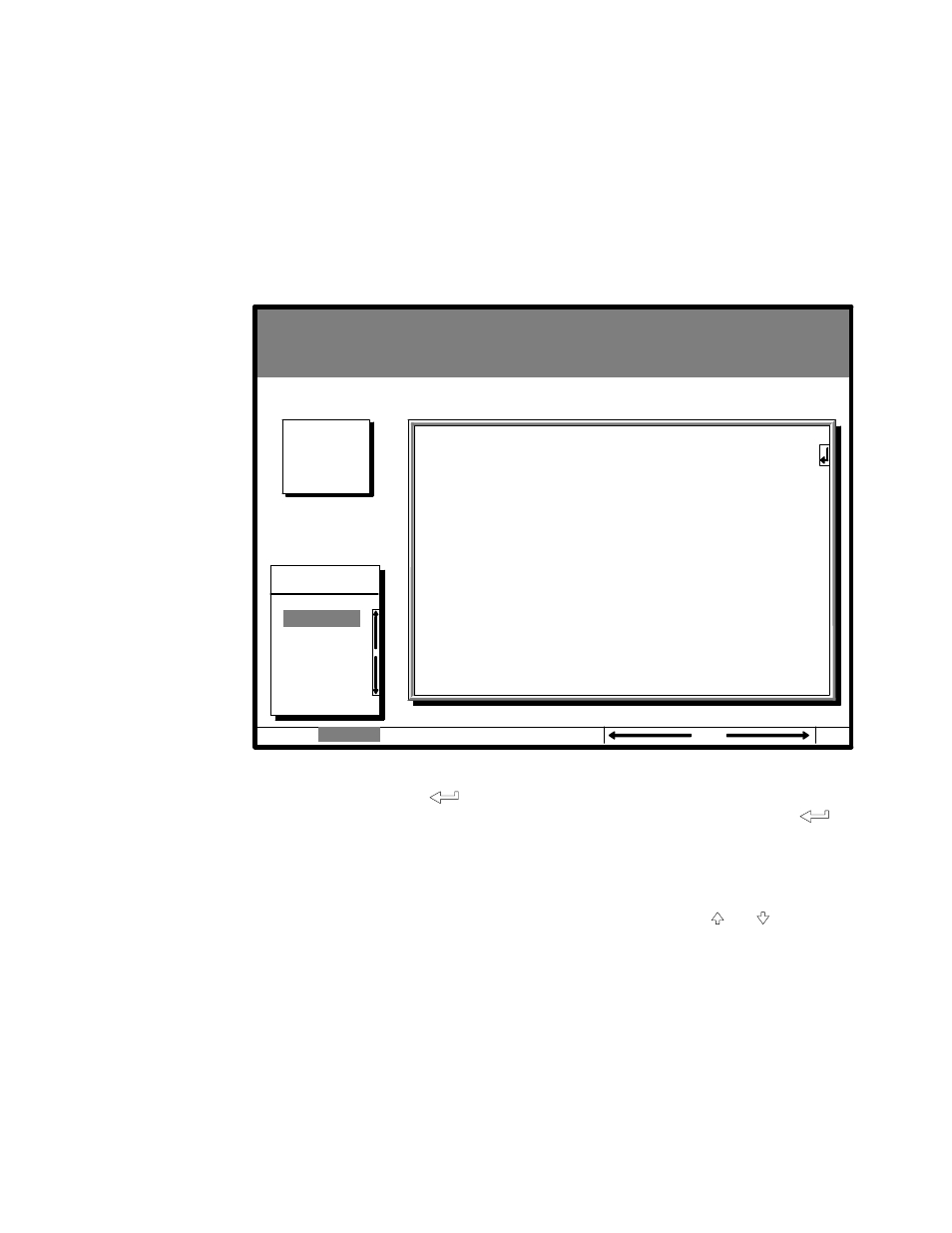

Figure 8-7. Event History Log Screen
A small return arrow ( ) appears in the upper right corner of the information area of
the Event History Log screen. This arrow is a reminder that you can press the
pushbutton on the control panel to toggle the scroll bar between the menu box and
the information area. When the scroll bar is in the information area, the return arrow is
in the menu box. When the scroll bar is in the menu box, the return arrow is in the
information area.
When the scroll bar is in the information area, you can press the and
pushbuttons to scroll through the Event History Log.
