ZENMUSE XT 2

User Manual

1. Spotlight

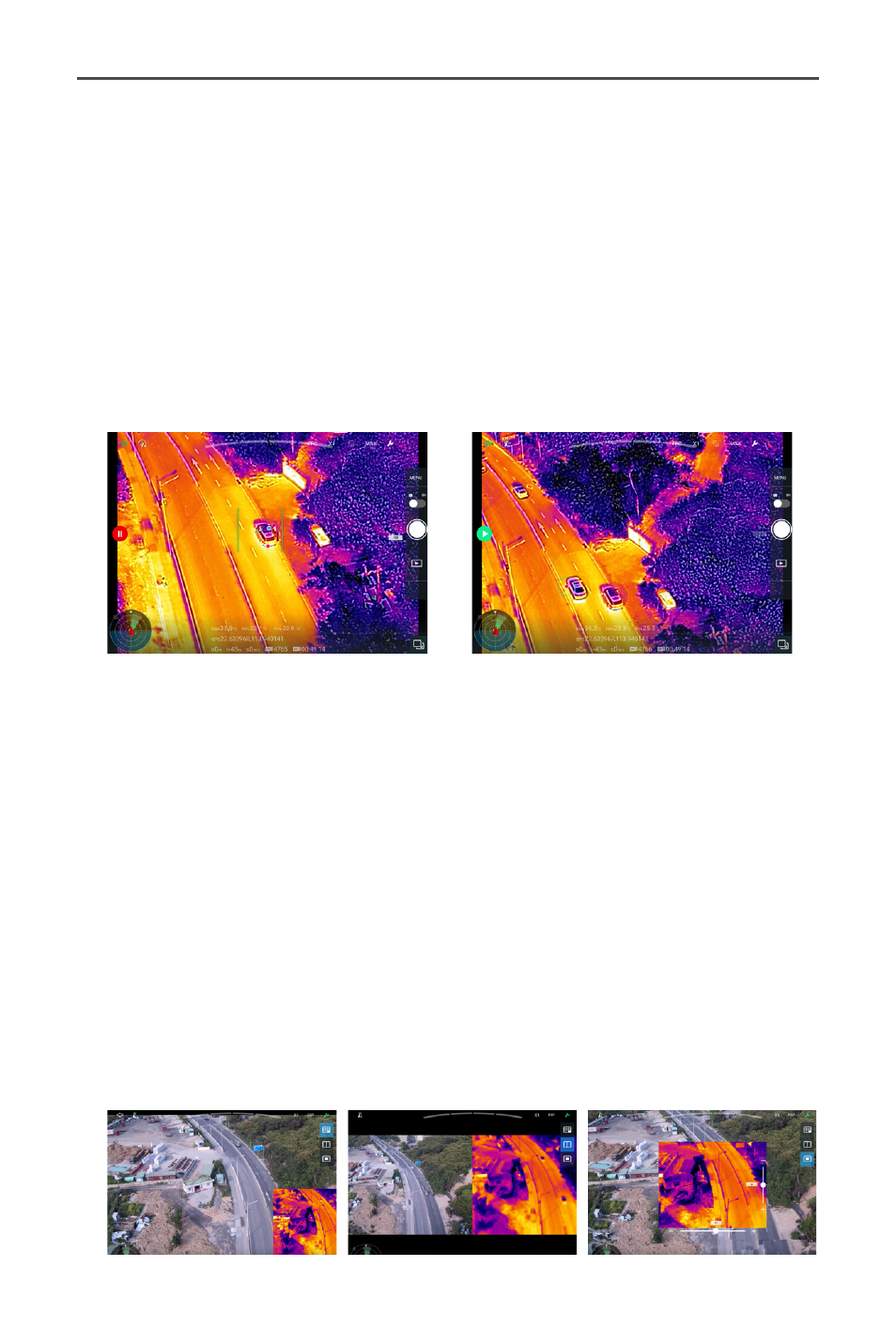

Spotlight provides access to the QuickTrack and HeatTrack features. When using QuickTrack,
drag a box on the screen surrounding the desired subject, which the gimbal will follow. The red
and blue points represent the hottest and coolest points in the selected area, respectively. If the
desired subject is lost during tracking, manually reselect it.
When using HeatTrack, the gimbal automatically recognizes and follows the hottest object on
the screen. The red point represents the hottest point on the screen. If the gimbal recognizes a
hotter point while tracking, the red point will move and a circle will appear around it. Tap on this
point to follow it.

Please note that Spotlight is only available when using the Zenmuse XT 2 with the M200 series
aircraft.

2. Gimbal Mode

The three gimbal modes are Follow, Free, and Recenter.

3. FFC Calibration

Calibration is used to optimize image quality. During calibration, your screen may freeze
momentarily and the camera will make a clicking sound.

4. Digital Zoom

Tap to adjust the digital zoom.

5. Display Mode

Tap to switch between the Vision, PIP, Infrared, and MSX display modes.

Vision mode:

Only displays the footage that visual camera captures.

PIP mode:

PIP mode includes three sub-modes:

1) Visual footage contains embedded infrared footage, whose position can be adjusted;
2) Visual and infrared footage display side by side;
3) Infrared footage lays exactly over corresponding visual footage.
