© 2018 DJI All Rights Reserved. 5

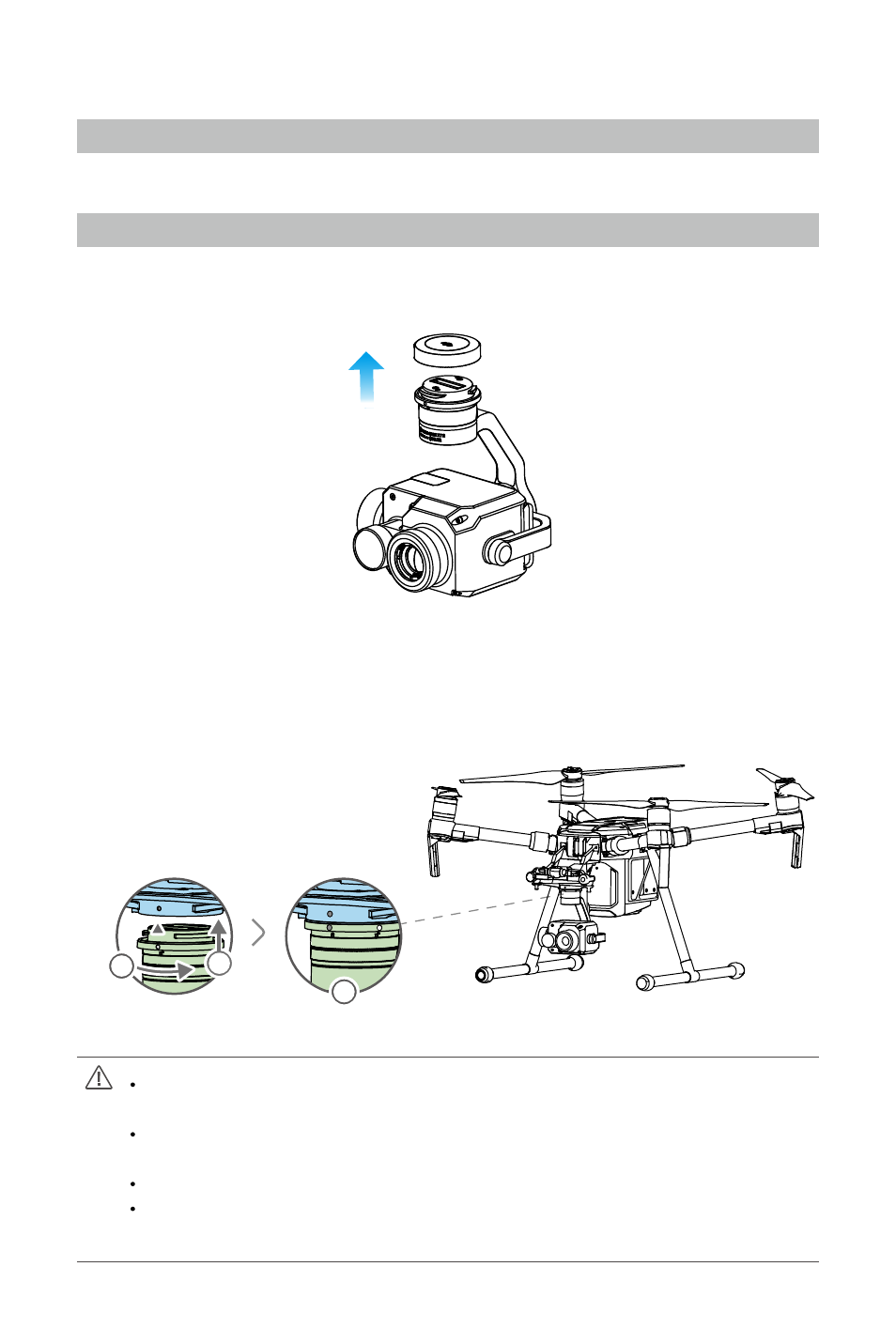

2. Rotate the gimbal connector to the unlocked position and insert the gimbal. Rotate the gimbal
connector to the locked position, as shown below using the Matrice 200 aircraft as an example.
Installation
Supported Aircraft
Matrice 200 Series Matrice 600 Series
Mounting the Zenmuse XT 2
1. Remove the gimbal cap, as shown below.
Ensure that the Zenmuse XT 2 is mounted securely. Hold the gimbal connector firmly and
apply a steady, firm rotating force when attaching or detaching the gimbal.
Ensure that the M200 series aircraft firmware version is 1.01.0900 or later. When mounting on
a M210 or M210 RTK aircraft, ensure that the Zenmuse XT 2 is mounted to gimbal connector I.
Ensure that the microSD card slot cover is firmly in place to prevent dust or moisture damage.
The Zenmuse XT 2 is a sophisticated device. Do not disassemble the gimbal or camera,
as this will cause permanent damage.
12
13
11
