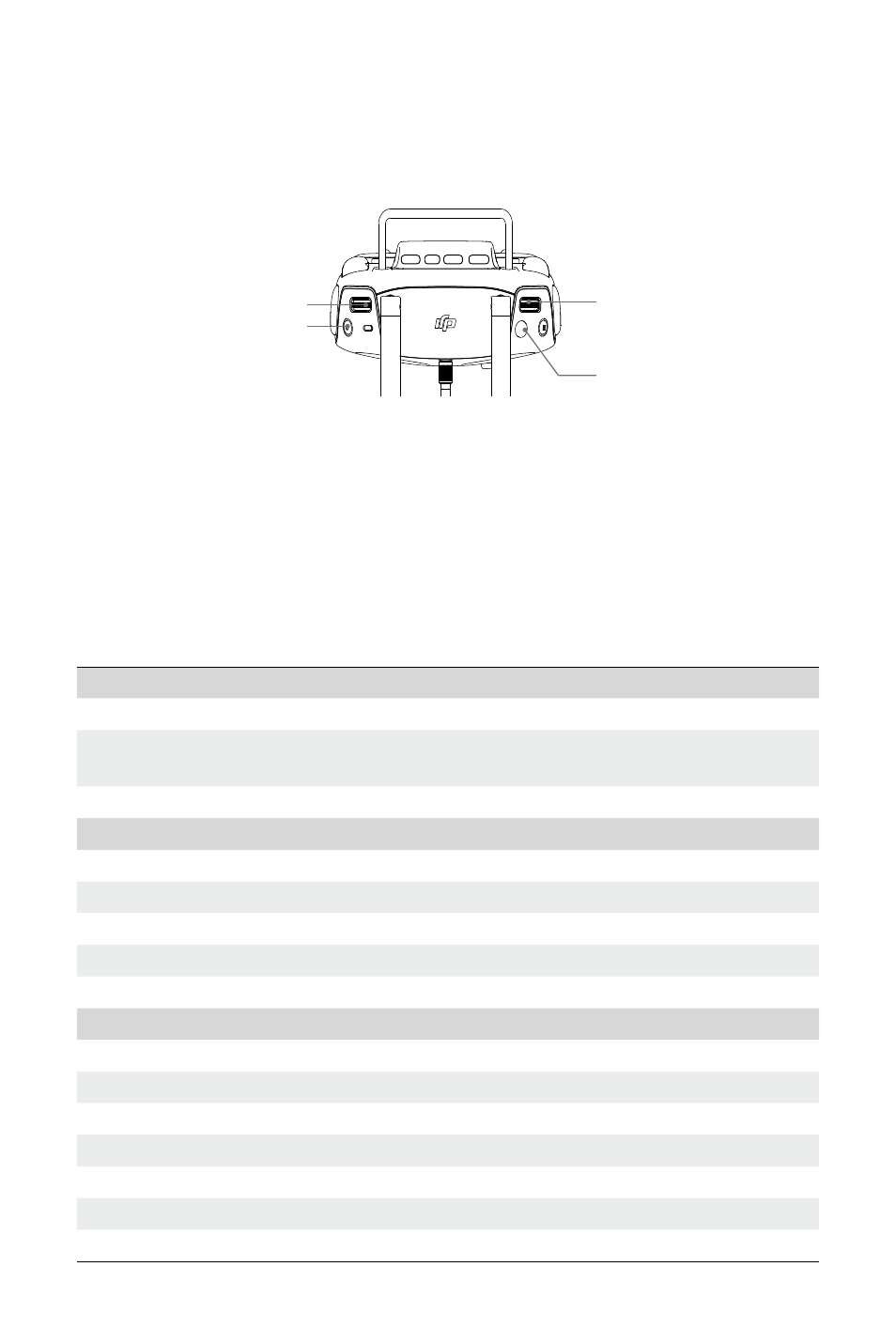

Remote Controller Operation
Press the right dial to select a Palette and press the Shutter or Record button to capture photos or
record video. Adjust the camera’s tilt using the left dial.
3
4 1
2
1. Left Dial
Turn to adjust the camera’s tilt or pan.
2. Record Button
Press to start/stop recording video.
Specifications
General
Name
Zenmuse XT 2
Dimensions
25 mm lens: 123.7Ч112.6Ч127.1 mm
Other lens versions: 118.02Ч111.6Ч125.5 mm
Weight 25 mm lens: 629 g; Other lens versions: 588 g
Gimbal
Angular Vibration Range
±0.01°
Mount Detachable
Controllable Range Tilt: +30° to -90°, Pan: ±320°
Mechanical Range Tilt: +45° to -130°, Pan: ±330°, Roll: -90° to +60°
Max Controllable Speed Tilt: 90°/s, Pan: 90°/s
Camera (Thermal)
Thermal Imager
Uncooled VOx Microbolometer
FPA/ Digital Video Display Formats 640Ч512; 336Ч256
Digital Zoom 640×512: 1x, 2x, 4x, 8x; 336×256: 1x, 2x, 4x
Pixel Pitch 17 μm
Spectral Band 7.5-13.5 μm
Full Frame Rates 30 Hz
Exportable Frame Rates <9 Hz
3. Shutter Button
Press to take photos.
4. Right Dial
Press to select a palette.
