Installation Procedure
8
Attaching the Mount to the Projector
Attaching the Rotating Unit
a

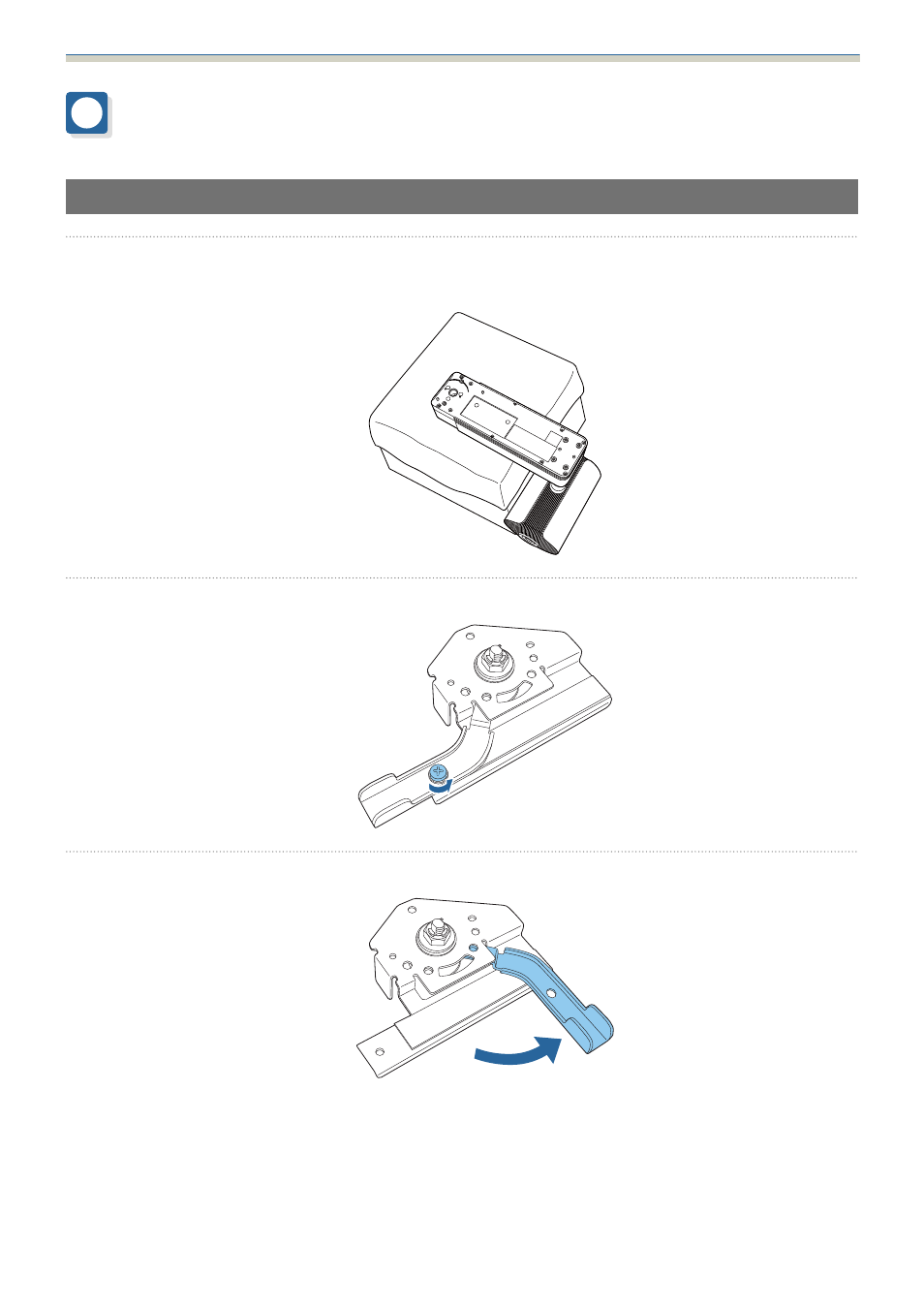

Place the projector on your workbench.
Place the projector on a soft cloth on a workbench (330 mm (13 inches) high).
b
Remove the M4 x 10 mm screw securing the lever of the rotating unit.
c
Rotate the lever 90 degrees counterclockwise.
