Page 10
Installation Procedure
9
d

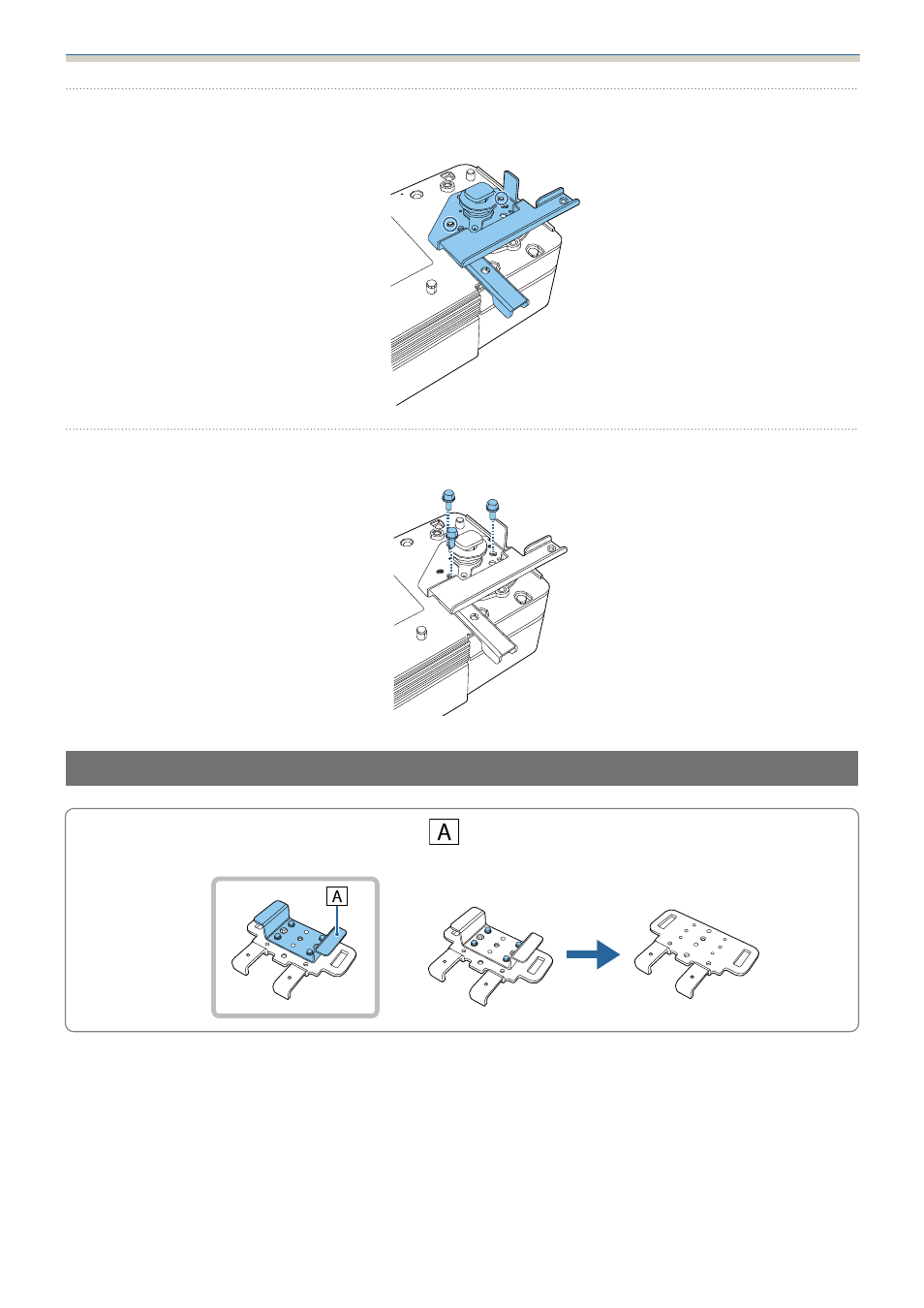

Place the rotating unit on the projector.
Align the pins (2 points) on the projector with the holes on the rotating unit.
e
Secure the rotating unit to the projector using the M4 x 10 mm screws supplied (x3).
Attaching the Plate Unit
c
The plate unit includes a support bracket (
) that braces against the ceiling to minimize projector
vibration. If your ceiling is not strong enough for direct contact, remove the support bracket.
