Ar99m receiver features rear panel – Samson AirLine AWXm Micro UHF Wind Instrument Wireless System (D: 542 to 566 MHz) User Manual
Page 12
12
1. DC Input - Connect the supplied power adapter here.
WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe
damage to the AR99m and will void your warranty.
2. UNBALANCED OUTPUTS - Use these unbalanced 1/4” and 1/8” jacks when connecting
the AR99m to consumer (-10 dBV) audio equipment. Wiring is as follows: tip hot, sleeve
ground.
3. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm) XLR jack
when connecting the AR99m to professional (+4 dBu) audio equipment. Pin wiring is as
follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

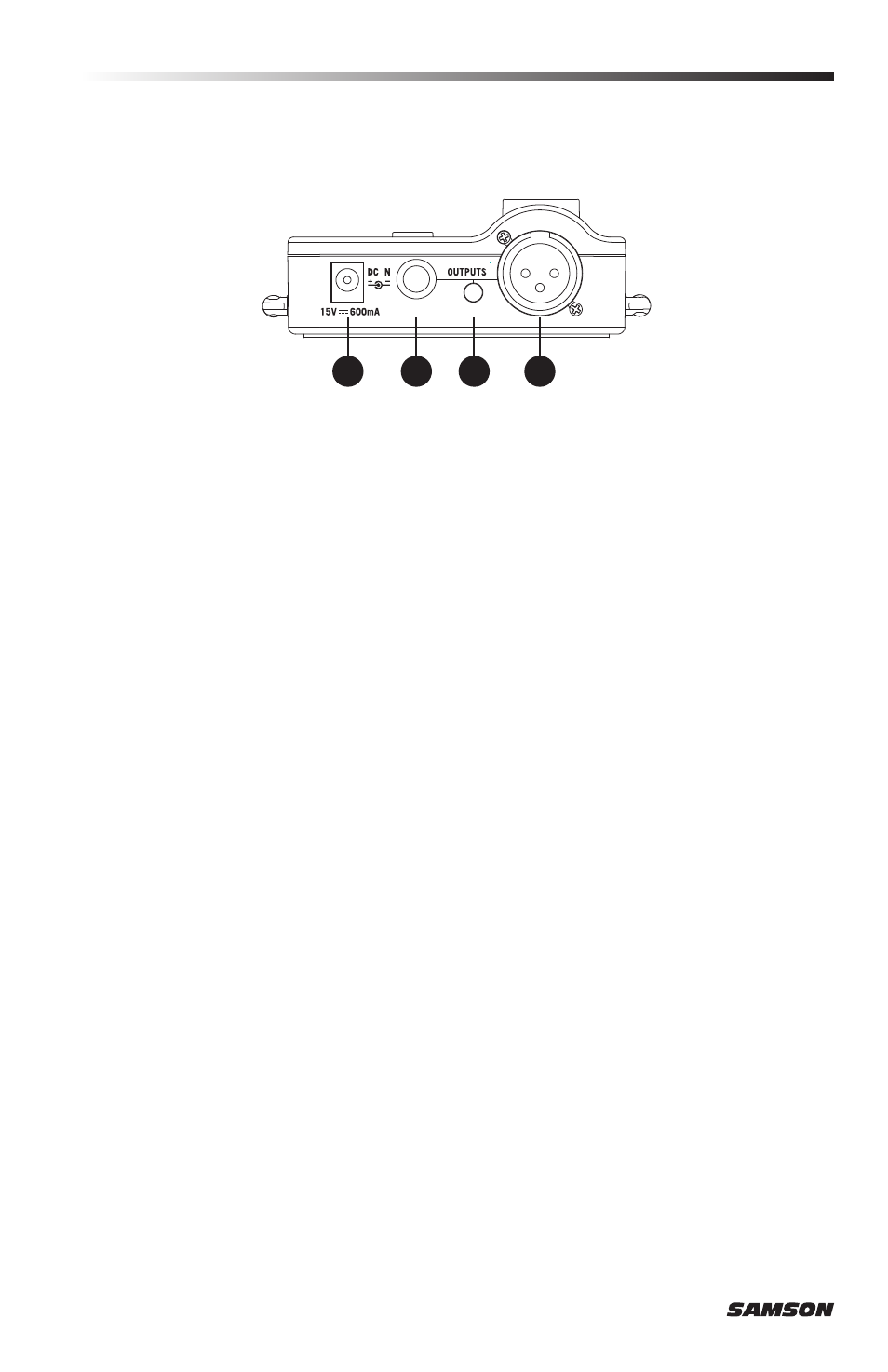

AR99m Receiver Features Rear Panel
1
2
2
3
