Caution:
❏ You must remove the yellow tape seal from the cartridge
before installing it otherwise, a fatal error will occur and
the cartridge will become unusable.
❏ Do not remove the blue portion of the tape seal from the
top of the cartridge; otherwise, the print head may
become clogged and will be unable to print.
❏ Do not remove the tape seal from the bottom of the
cartridge; otherwise, ink will leak.

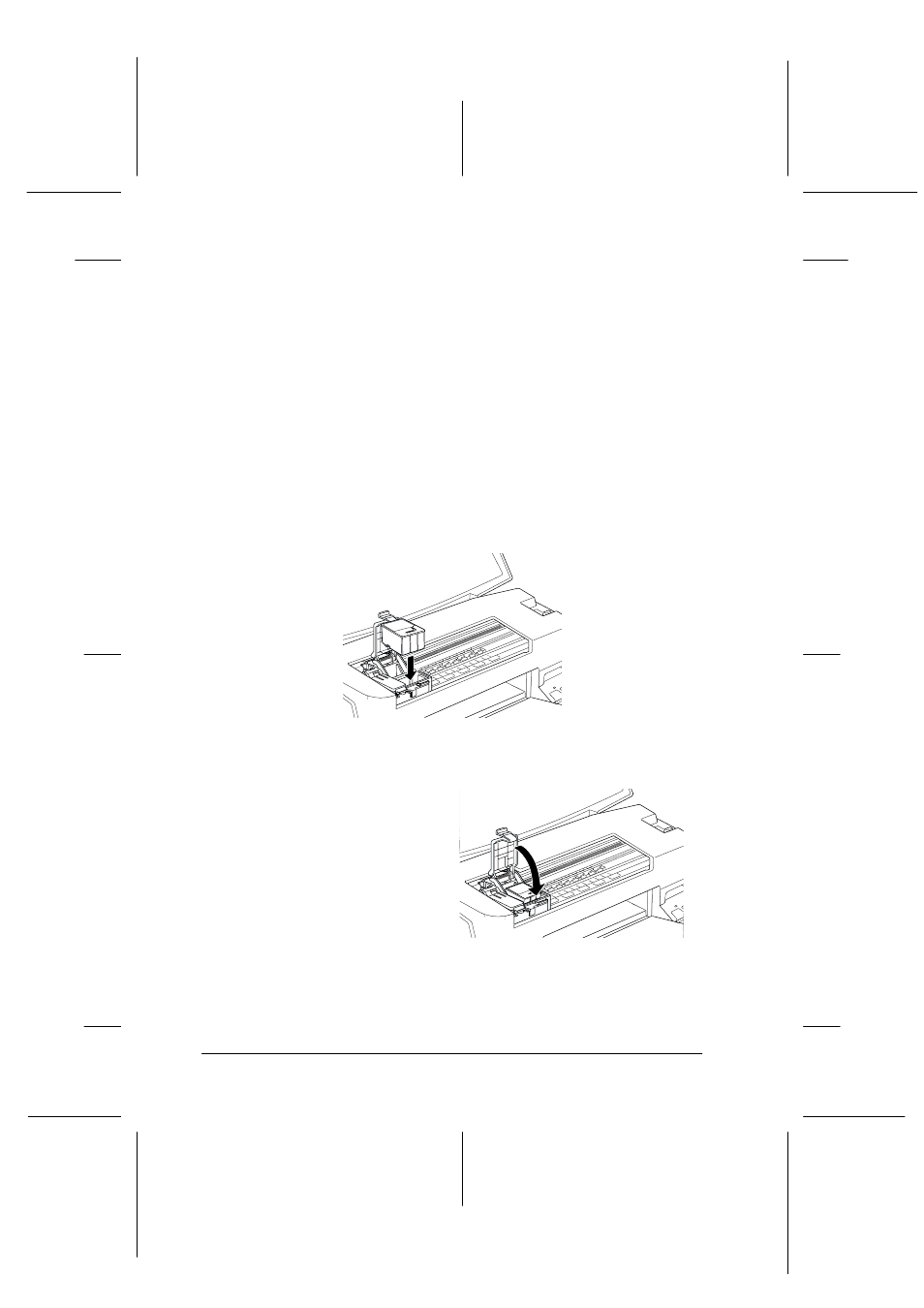

7. Place the ink cartridge gently into the cartridge holder with
the label on the cartridge facing up. Do not press down on the
cartridge.
8. Press the ink cartridge clamp down until it locks in place.
The illustration shows color ink
cartridge replacement. To
replace the black ink cartridge,
lift up only the smaller clamp on
the left.
