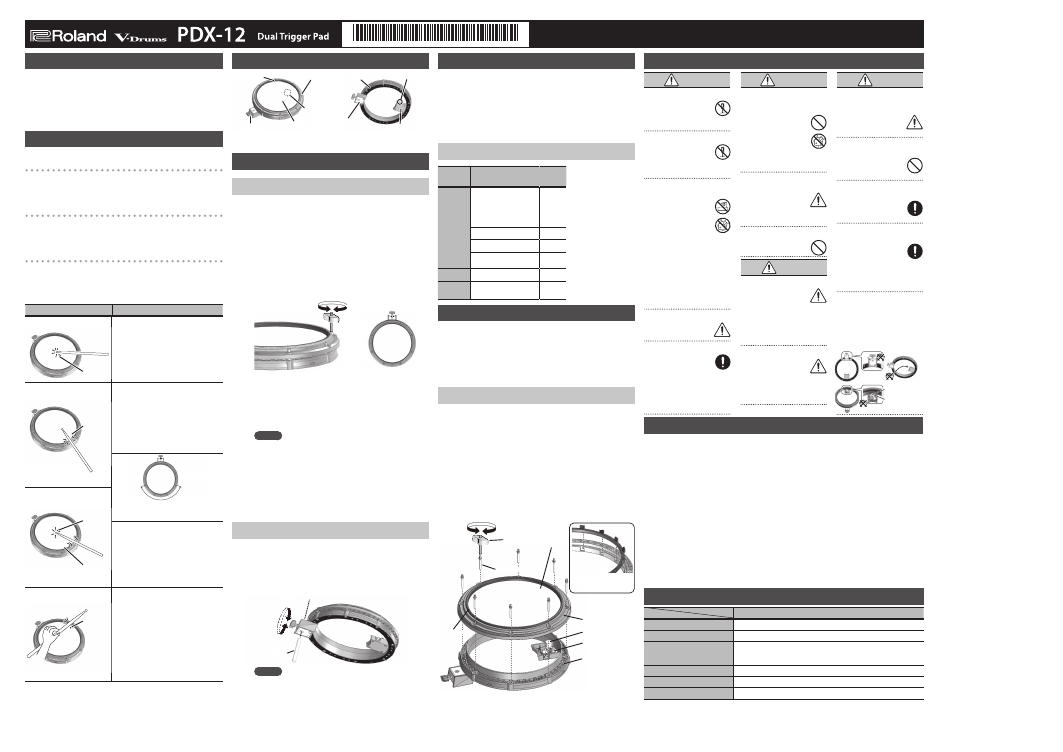

Roland PDX-12 Dual-Trigger Mesh V-Pad - Manual

Main Specifications
Roland PDX-12: Dual Trigger Pad
Pad size 12 inches
Trigger 2 (Head, Rim)
Dimensions
430 (W) x 360 (D) x 105 (H) mm
16-15/16 (W) x 14-3/16 (D) x 4-3/16 (H) inches
Weight 2.1 kg 4 lbs 11 oz
Accessories Owner’s Manual, Connection cable, Knob bolt, Drum key
Options (sold separately) Pad mount (MDH series), Drum stand (MDS series)
* This document explains the specifications of the product at the time that the document was issued.
For the latest information, refer to the Roland website.
Check the Included Items
After opening the package, check that all of the included items
are present. If anything is missing, contact your dealer.
5 PDX-12
5 Owner’s Manual
5 Connection cable
5 Knob Bolt
5 Drum key
Main Features
Pad for 12-Inch Snare/Tom
Equipped with a mesh head that provides a natural strike feel and
minimal acoustic noise. The 12-inch size allows a natural head rebound
that's close to that of an acoustic drum, ensuring high play ability.
Structure and Materials That Take Advantage of the Sensor
Highly rigid formed material and newly designed hoop rubber provide
the playing feel of an acoustic drum, giving you a stable playing
experience.
Differentiate Head Shots and Rim Shots
Since independent sensors are provided for the head and the rim, you
can play the head and rim independently.
In addition, using the PDX-12 with a Roland sound module (*1) allows it
to support open rim shots and cross stick playing.
Playing method Explanation
Head Shot
Hit only the head of the pad.
Rim Shot Hit only the Rim of the pad.
A sound (rim sound) different
than the head shot will be heard.A
proprietary structure provides a
rim height that's the same as on an
acoustic drum, allowing natural-
feeling rim shots to be played.
* To play rim shots, strike the rim in the
area shown in the diagram.
Open Rim Shot (*1)
Simultaneously strike the center
of the head and the rim.
A proprietary structure provides a
rim height that’s the same as on an
acoustic drum, allowing natural-
feeling open rim shots to be played.
Cross stick (*1) Only strike the rim of the pad.
Depending on the instrument
assigned to the rim, you can
play rim shots and/or cross stick
sounds.
* To play the cross stick, be sure that
you only strike the rim of the pad.
Placing your hand on the head of the
pad might prevent the cross stick
sound from being played properly.
Head
Rim
Suitable position
for rim shots
Player
Head
Rim
Rim
*1 Only when used with a compatible sound module such as the
Roland TD series.
IMPORTANT NOTES
USING THE UNIT SAFELY
Copyright © 2018 ROLAND CORPORATION
Connections
Use the included stereo cable to make connections with
the drum sound module. Connect the L-shaped plug of the
included cable to the PDX-12’s TRIGGER OUTPUT jack.
* If you use a mono cable, you won’t be able to employ rim shot and
cross stick playing techniques.
* To prevent malfunction and equipment failure, always turn down the
volume, and turn off all the units before making any connections.
Sound Module Settings
Sound
module Value
TD-50/
TD-30/
TD-25/
TD-15/
TD-11/
HPD-20/
SPD-30/
SPD-SX/
TM-2
“Trig Type,”
“Pad Type,”
“Type”
PDX-8
“Sensitivity” 6
“Rim Gain” 1.1
“Head/Rim Adjust” 20
TD-17 “Pad Type” PDX-12
TM-6
PRO
“Trig Type” PDX-12
When Should You Replace the Head?
The head and hoop rubber are consumable item that will gradually
decline in performance during years of use. If the head becomes torn,
or if the surface of the head sags even after you've correctly adjusted
the tension, you should replace the head. If the hoop rubber becomes
damaged, contact a nearby dealer or Roland service outlet.
Replacement head (sold separately): MH2-12 (Roland Power
Ply series)
Replacing the Head
1. Remove all tuning bolts from the PDX-12.
* Do not apply excessive force to the sensor and cushion located under
the head. Doing so can interfere with accurate detection, and may
damage it.
2. Remove the old head.
3. Place the new head on the shell.
4. Attach the tuning bolts to the head and shell.
5. Adjust the tension of the head.
* Do not firmly tighten a single tuning bolt by itself. Doing so will make
it impossible to tension the head evenly, and will cause malfunctions.
Tighten
Drum key
Tuning Bolts
Head Sensor
From the back, fit the hoop
rubber into the groove of
the hoop
Hoop
Hoop
Head
Shell
Rim Sensor
Hoop Rubber
Hoop Rubber Loosen
* Do not touch the sensor section or allow foreign objects to enter it.
Doing so might cause malfunction or faulty operation.
* Use Sensitivity (Sens)
to adjust the pad
sensitivity to your
preference.
* If double triggering
occurs, adjust
the sensitivity by
increasing the
sound module’s
“Threshold” value.
Descriptions
TRIGGER OUTPUT jack Tuning Bolts
Knob Bolt
Hoop Rubber
Head Sensor
Rim Sensor
Head Holder
Shell
* Do not touch the sensor section or allow foreign objects to enter it.
Doing so might cause malfunction or faulty operation.
Setup
Adjusting the Head Tension
When the unit is shipped from the factory, this is adjusted
fairly loosely. Before use, adjust the head to a fairly high
tension.
* Looseness in the head tension may result in problems such as failure
of the PDX-12’s rim shots to sound or double triggering. Striking the
head when the head tension is loose may damage the sensor.
1. Adjust each tuning bolt a little at a time,
moving in order from one side to the
opposite side as shown in the illustration
below.
1 8
7 2
3 6
5 4
Tighten Loosen
* Do not firmly tighten a single tuning bolt by itself.
Doing so will make it impossible to tension the head
evenly, and will cause malfunctions.
2. Fine-tune the adjustment while continuing to
check the pad feel and response.
MEMO
5 Adjusting the head tension affects only the head
response, and does not change the pitch of the
sound as it would on an acoustic drum. Pitch
adjustments are made by editing the sound in your
drum sound module. For details, refer to the owner’s
Manual of the drum sound module you’re using.
5 Head tension may slacken with the passage of time.
Readjust the tension as needed.
Attaching the Pad to a Stand
Using the included knob bolt, attach the pad to the pad mount
of the stand (MDS series).
* When attaching the pad to the stand, take care not to pinch your
fingers.
* Be sure to tighten the knob bolt securely. If it remain loose, double
triggering may occur.
Loosen
Rod
Tighten
MEMO
When attaching the PDX-12 to a commercially
available tom stand, check the dimensions of the
rod. Depending on the dimensions of the rod, it may
not be possible to attach the pad to the stand.
Acceptable rod diameters: 9–13 mm (3/8 to 9/16 inches)
English Owner’s Manual
Before using this unit, carefully read “USING THE UNIT SAFELY” and “IMPORTANT NOTES.” After reading,
keep the document(s) including those sections where it will be available for immediate reference.
WARNING
Do not disassemble or modify by yourself
Do not carry out anything
unless you are instructed to
do so in the owner’s manual.
Otherwise, you risk causing
malfunction.
Do not repair or replace parts by yourself
Refer all servicing to
your retailer, the nearest
Roland Service Center,
or an authorized Roland
distributor, as listed on the
“Information.”
Do not use or store in the following types
of locations
• Subject to temperature
extremes (e.g., direct
sunlight in an enclosed
vehicle, near a heating
duct, on top of heat-
generating equipment);
or are
• Damp (e.g., baths, washrooms,
on wet floors); or are
• Exposed to steam or smoke;
or are
• Subject to salt exposure; or are
• Exposed to rain; or are
• Dusty or sandy; or are
• Subject to high levels of
vibration and shakiness; or are
• Placed in a poorly ventilated
location.
Use only the stand that is recommended
This unit should be used
only with a stand that is
recommended by Roland.
Do not place in a location that is unstable
When using the unit with
a stand recommended by
Roland, the stand must be
carefully placed so it is level
and sure to remain stable. If not
using a stand, you still need to make
sure that any location you choose
for placing the unit provides a level
surface that will properly support
the unit, and keep it from wobbling.
WARNING
Do not allow foreign objects or liquids to
enter unit; never place containers with
liquid on unit
Do not place containers
containing liquid (e.g., flower
vases) on this product.
Never allow foreign objects
(e.g., flammable objects,
coins, wires) or liquids (e.g.,
water or juice) to enter this
product. Doing so may cause short
circuits, faulty operation, or other
malfunctions.
Be cautious to protect children from
injury
Always make sure that an
adult is on hand to provide
supervision and guidance
when using the unit in
places where children are present, or
when a child will be using the unit.
Do not drop or subject to strong impact
Otherwise, you risk causing
damage or malfunction.
CAUTION
Use only the specified stand(s)
This unit is designed to
be used in combination
with specific stands
(MDH series/MDS series)
manufactured by Roland. If used
in combination with other stands,
you risk sustaining injuries as the
result of this product dropping
down or toppling over due to a lack
of stability.
Evaluate safety issues before using stands
Even if you observe the
cautions given in the
owner’s manual, certain
types of handling may allow
this product to fall from the stand, or
cause the stand to overturn. Please
be mindful of any safety issues
before using this product.
CAUTION
Route all power cords and cables in such a
way as to prevent them from getting
entangled
Injury could result if
someone were to trip on a
cable and cause the unit to
fall or topple.
Avoid climbing on top of the unit, or
placing heavy objects on it
Otherwise, you risk injury
as the result of the unit
toppling over or dropping
down.
Disconnect all cords/cables before
moving the unit
Damage or malfunction
may result if you fail to
disconnect all cables before
moving the unit.
Keep small items out of the reach of
children
To prevent accidental
ingestion of the parts listed
below, always keep them
out of the reach of small
children.
• Removable Parts
Spring
Washer
Do not insert your hand or fingers
Do not insert your hand or fingers
into the areas indicated by the arrow
in the diagram. Doing so might
cause injury or damage. When
replacing the head, take care not to
touch parts such as the sensor, or
allow foreign objects to enter them.
Doing so might cause malfunctions.
Head Sensor
Rim Sensor
Placement
• When moved from one
location to another where the
temperature and/or humidity
is very different, water droplets
(condensation) may form inside
the unit. Damage or malfunction
may result if you attempt to
use the unit in this condition.
Therefore, before using the
unit, you must allow it to stand
for several hours, until the
condensation has completely
evaporated.
• Do not paste stickers, decals, or
the like to this instrument. Peeling
such matter off the instrument
may damage the exterior finish.
• Do not place containers or
anything else containing liquid
on top of this unit. Also, whenever
any liquid has been spilled on
the surface of this unit, be sure
to promptly wipe it away using a
soft, dry cloth.
Maintenance
• Never use benzine, thinners,
alcohol or solvents of any
kind, to avoid the possibility of
discoloration and/or deformation.
Additional Precautions
• Use a reasonable amount of
care when using the unit’s
buttons, sliders, or other controls;
and when using its jacks and
connectors. Rough handling can
lead to malfunctions.
• When disconnecting all cables,
grasp the connector itself—never
pull on the cable. This way you
will avoid causing shorts, or
damage to the cable’s internal
elements.
• This instrument is designed to
minimize the extraneous sounds
produced when it’s played.
However, since sound vibrations
can be transmitted through floors
and walls to a greater degree
than expected, take care not to
allow these sounds to become a
nuisance others nearby.
Trademarks
• Roland and V-Drums are
either registered trademarks
or trademarks of Roland
Corporation in the United States
and/or other countries.
• Company names and product
names appearing in this
document are registered
trademarks or trademarks of their
respective owners.
* 5 1 0 0 0 6 0 8 3 3 - 0 1 *
