Block diagram, Pre amp, Pm-200 – Roland PM-100 Personal Monitor for V-Drums User Manual

Page 7

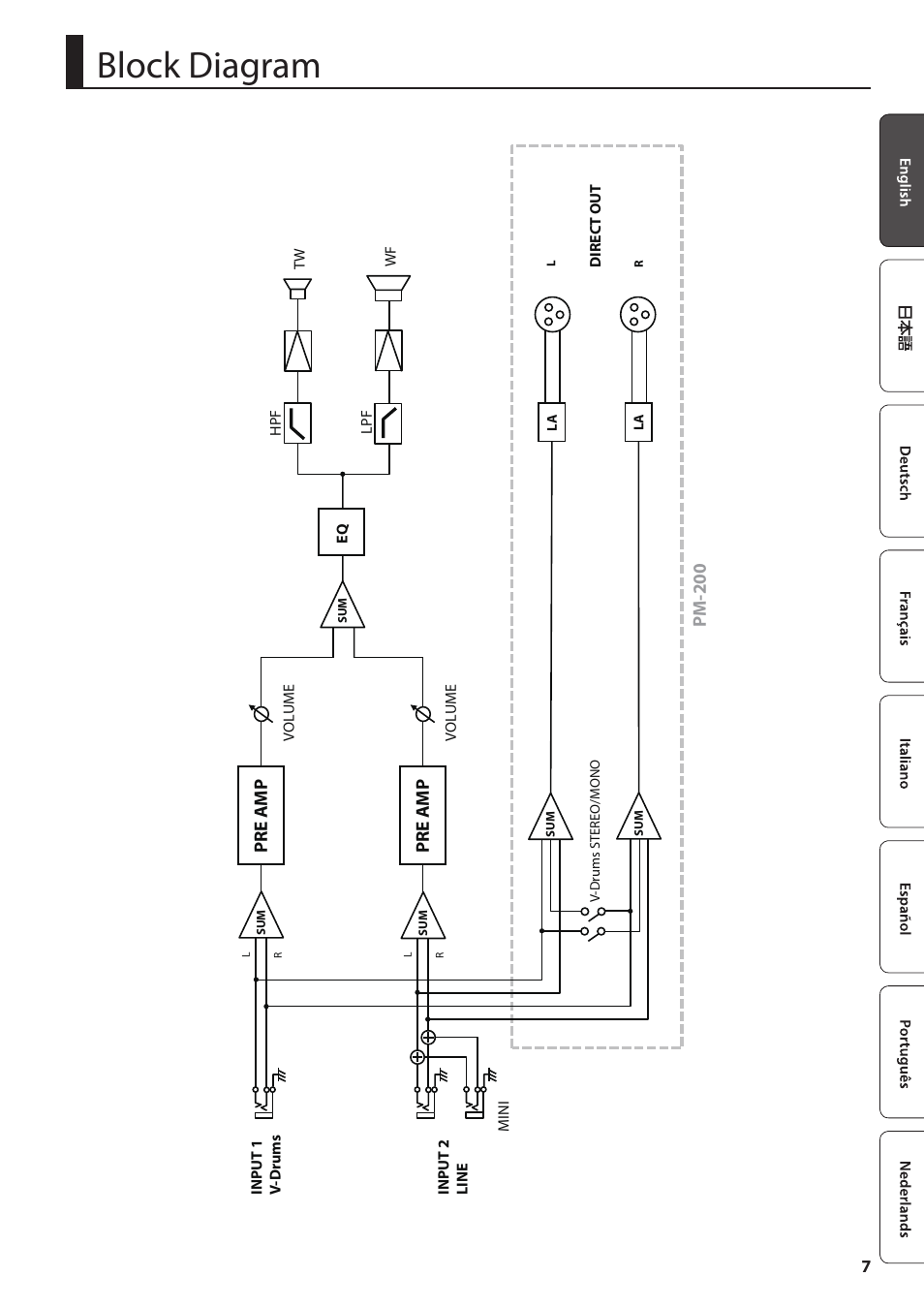

Block diagram, Pre amp, Pm-200 | Roland PM-100 Personal Monitor for V-Drums User Manual | Page 7 / 8

Block diagram, Pre amp, Pm-200 | Roland PM-100 Personal Monitor for V-Drums User Manual | Page 7 / 8
