Setting Up the SpectroProofer | 15
Connecting the Cables
The 44" SpectroProofer has a secondary USB port that can be used to
connect the optional Auto Take-up Reel (available for the EPSON Stylus
Pro 9890 and 9900 only). The 24" SpectroProofer does not have this port.

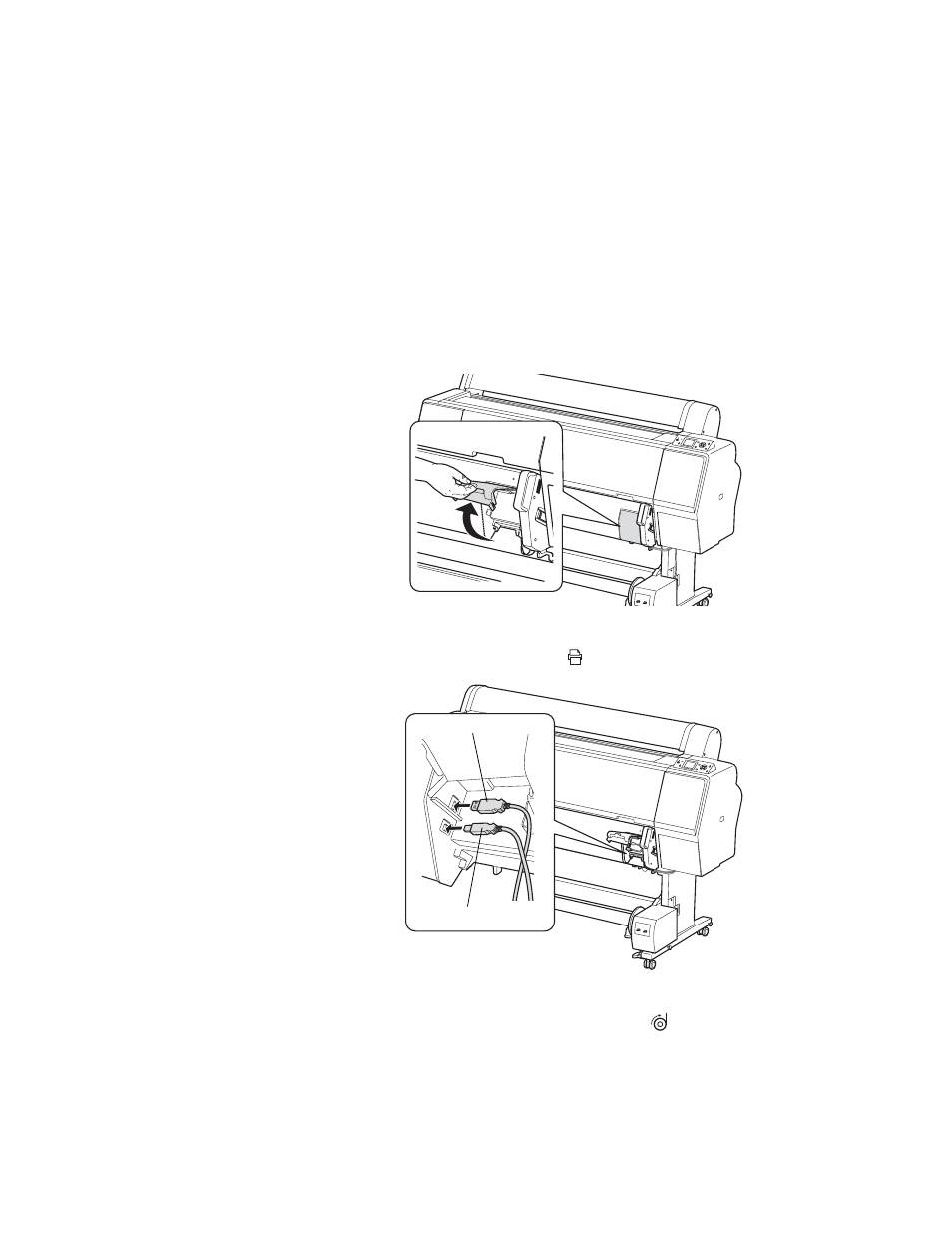

1. Open the cover on the right side of the SpectroProofer.
2. Plug the square end of the SpectroProofer’s USB cable (included) into
the square port marked with the printer symbol.
If you’ve also installed the optional Auto Take-up Reel, plug its
USB cable into the flat port marked with the
take-up reel symbol
(44" model only).
Auto Take-up Reel
SpectroProofer
Note:
To install the SpectroProofer,
you must disconnect the
Auto Take-up Reel from the
option port on the back of
the printer.
