Installing the Hardware
28
Enterasys Xpedition 2000 Getting Started Guide
Connecting Power to the Chassis
AC
To attach the unit to AC power, simply plug the chassis into a grounded power source. For
information about the AC power requirements, see Hardware Specifications
DC
To attach the unit to the DC power supply, connect the ground, negative, and positive leads to their
respective terminals at the rear of the unit. For information about the DC power requirements, see
Hardware Specifications
.
Installing an Expansion Module
Warning
: Before performing any upgrade or installation procedures, ensure that the
XP-2000 is powered off and that you are properly “grounded” to avoid electrostatic discharge
while working inside the XP-2000’s chassis.
Note:
A hardware restriction prevents the Xpedition 2000 from supporting configurations
consisting of:
– Two (2) 1000Base-SX or 1000Base-LX Gigabit modules.
– Two (2) 100Base-FX modules.
However, the router does support a configuration consisting of one (1) Gigabit module and
one (1) 100Base-FX module.
To install a 1000BASE-SX or 1000BASE-LX gigabit expansion module:
1.
Ensure that the XP-2000 is powered off.
2.
If your XP-2000 is equipped for rack mounting, use the phillips-head screwdriver to remove
the mounting brackets from each side of the XP-2000.
3.
Take off the XP-2000’s top cover.
a.
Use the phillips-head screwdriver to remove the four mounting screws (two on each side
of the router, front and back) that hold the top cover on the XP-2000.

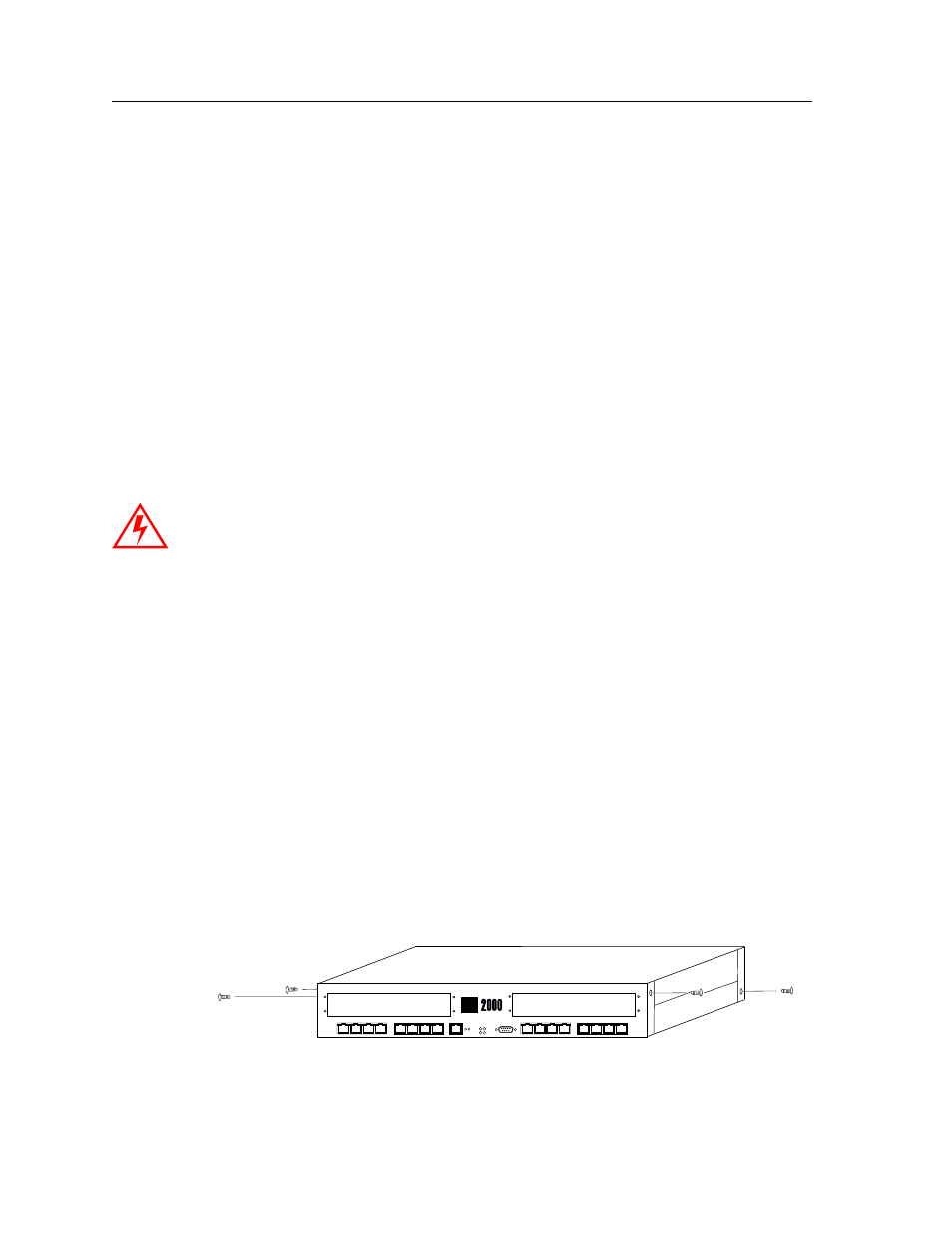

Figure 10. Removing the XP-2000’s cover
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
1
3
2
4
CONSOLE
10/100 MGMT
OK
ERR
DIAG
HBT
RST
10/100BASE-TX
10/100BASE-TX
SYS
Enterasys Networks
