PH 10
PAGING HORN
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 888.337.7404
TEL outside US 425.892.6503 | FAX 425.485.1152 | Page 2 of 2
SPECIFICATIONS
SYSTEM
Freq. Range (–10 dB): 380 Hz–9 kHz
Freq. Range (–20 dB): 340 Hz–11 kHz
Dispersion @ 1 kHz/4 kHz: 180°/45º
SPL (1W): 106 dB @ 1m
Rated Maximum SPL (10W): 116 dB @ 1m
System Input Power Rating: 10W rms long term
Transformer Taps
70V: 5W, 2.5W, 1.25W, 0.625W, OFF, 8Ω
100V: 10W, 5W, 2.5W, 1.25W, OFF, 8Ω
Impedance: 1 kΩ @ 10W, 2 kΩ @ 5W, 4 kΩ @
2.5W,
8 kΩ @ 1.25W, OFF, 8Ω
Water Protection: IEC529 and IP66 (protected from dust
and strong jets of water)
PHYSICAL
Material: High-impact ABS
Color/Finish: Light grey (RAL 7035)
Dimensions (Diameter x Length): 5.6 in/142 mm x 8.2 in/208 mm
Net Weight: 3.8 lb/1.7 kg
Mounting: U-type stainless steel bracket

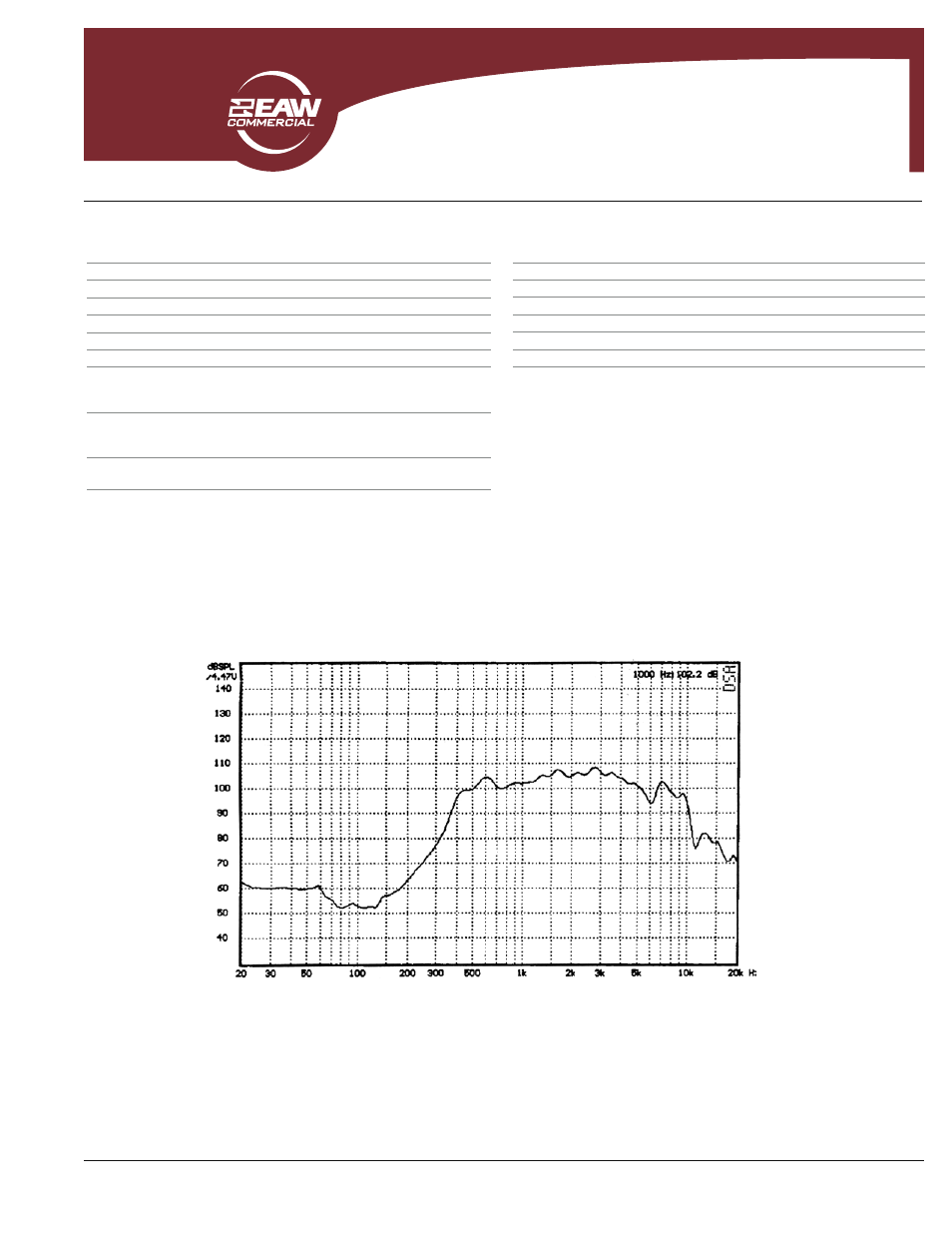

PH10 FrEquENCy rESPONSE
