4-Port SIP Internet Telephony Gateway
VGW-400 Series
Disable: Send silence packets as normal voice packet (no
silence detection)
RTP Basic Port
The RTP starting port. Each channel will be added additional
10. For example, the RTP basic port is 16384 and thus call 1
will use 16384 while call 2 will use 16394, etc.
RTP QoS Type
IP QoS tag for RTP stream
DiffServ: The differentiated service QoS tag will be used.
Input DSCP value 0-63 for DSCP.
TOS: Type of Service which include IP precedence value
and TOS.

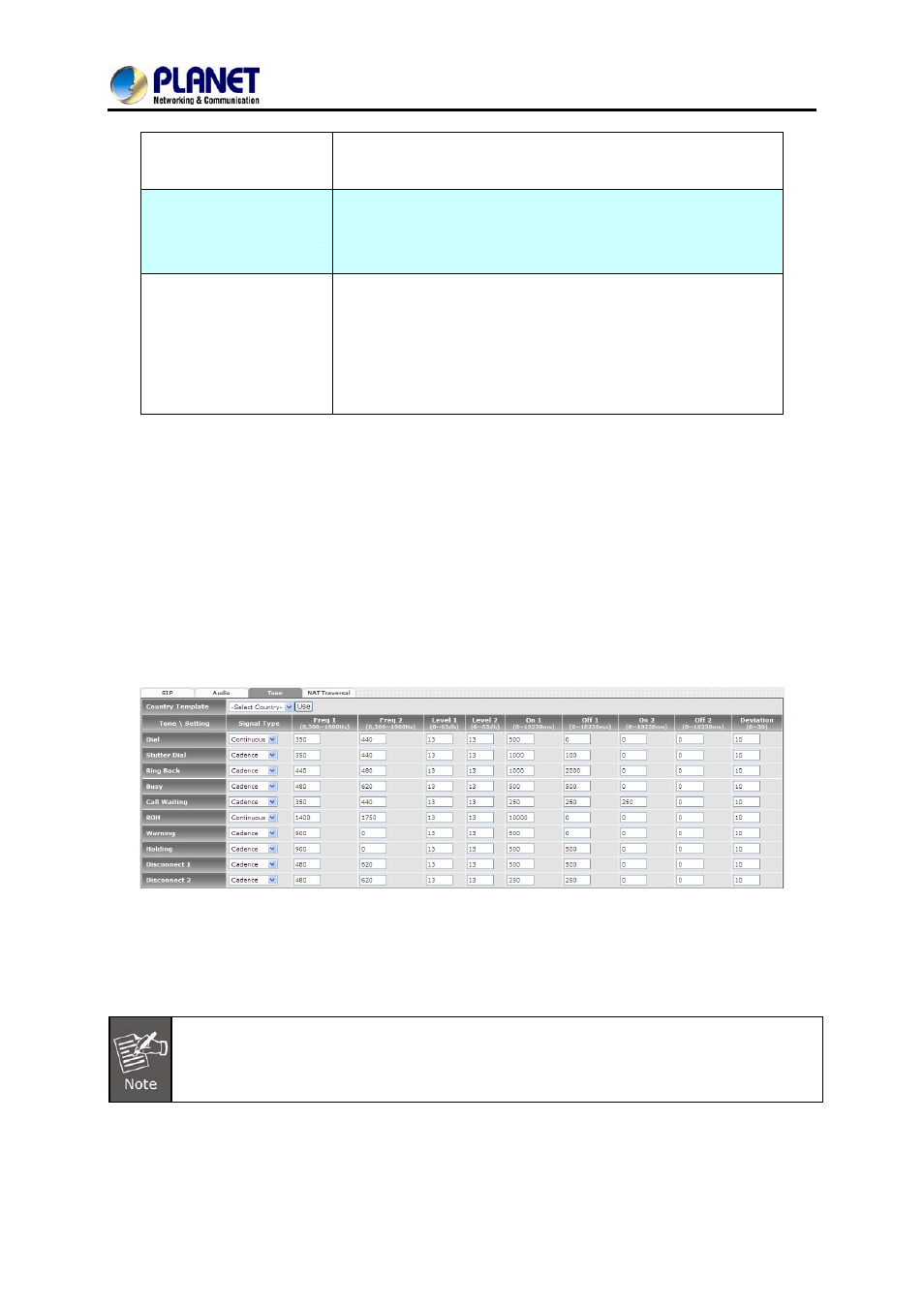

5.3 Tone
The setting page is used to set up the tone to be generated (FXS) or detected (FXO). The detected
tone is the Disconnect 1 & 2 (for FXO use) and the others are for generating (when FXS receives the
“bye” from IP side or waits time out by analog phone which keeps picking up the handset, it will
send busy tone to analog phone). To recognize the correct disconnect tone is very important for
PSTN status supervision to release FXO port after call is dropped.
Please use Country Template to select your local country profile which will be applied. Click to load
those country tone parameters to system and change if it is necessary.
For those countries which are not shown in the list, please select a closed country and edit
tone parameters to match your country. You can send an email with the tone definition to
Planet if you would like to put your country tone in the list.
