6. Connect telephone to the PHONE port.
7. Connect Ethernet port to PC Network Interface Card (NIC) via
regular Cat. 5 cable.

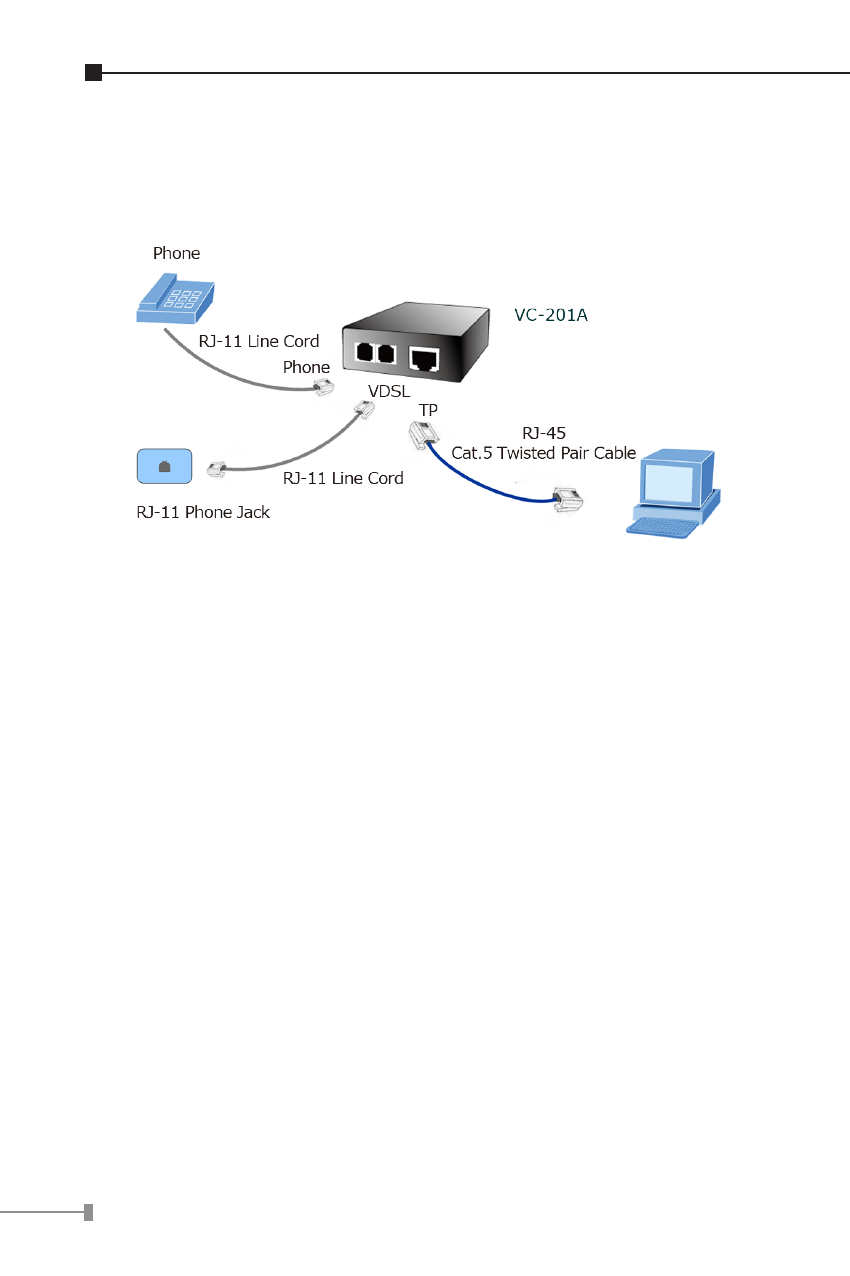

Figure 3-3: Connecting Standalone PC
3.2.2 Connecting Multiple PCs to an Ethernet LAN
Refer to the following procedures to setup the VC-201A / VC-
204 to an Ethernet LAN.
1. Set the VC-201A / VC-204 to be CO mode or CPE mode from
the DIP switch at the rear panel.
2. Power on the VC-201A / VC-204 by connecting its power
source.
3. Power LED will illuminate.
4. Connect VDSL line from another VDSL device to VDSL port of
the VC-201A / VC-204.
5. LNK LED will illuminate.
6. Connect telephone to the PHONE port.
7. VC-201A: Connect Ethernet port to Ethernet Switch (or Broad-
band Router) via regular Cat. 5 cable.
VC-204: Connect per Ethernet port to each network device via
regular Cat 5. cable
