SCHEMATIC DIAGRAMS AND COMPONENT LAYOUTS
SECTION 8 SCHEMATIC DIAGRAMS AND COMPONENT LAYOUTS
C4
Q1
C1
R8
R9
HC2
C5
C17
Q2
C2
C9
R1
R4
R5
HR1
C16
R13
R6
R15
R12
R2
HR2
R3
C15
R7
FIN
GND
PLLSK
PLLSO
PLLST
TA
LD
LO
GND
RF5V
LV
GND

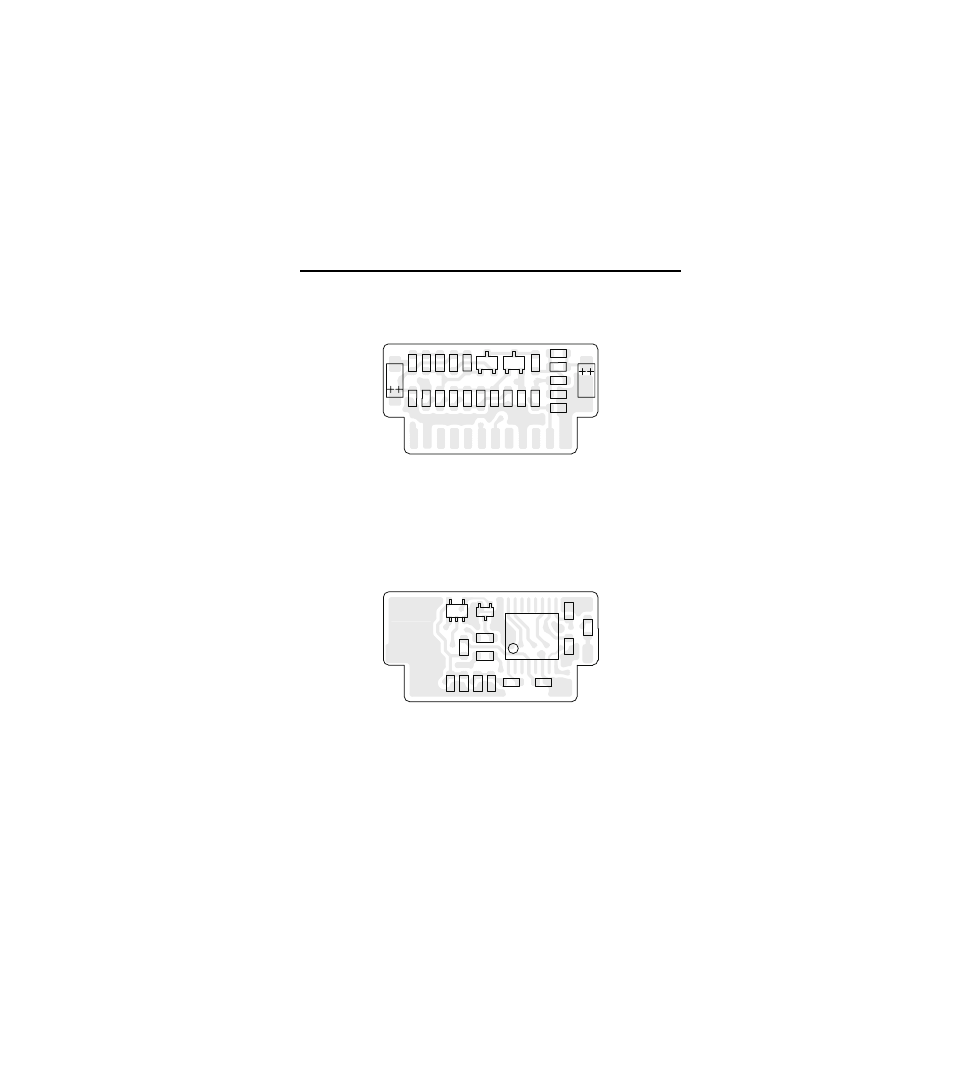

PLL BOARD TOP VIEW
IC2
Q3
IC1
R16
HC1
C10
C12
GND
C14
C13
L1
C11
R10
C8
C7
CPV
R14
PLL BOARD BOTTOM VIEW
