6 Wiring the power supply
6.1 Wire the power supply
A user-supplied switch may be installed in the power supply line. For compliance with low-
voltage directive 2006/95/EC (European installations), a switch in close proximity to the
transmitter is required.
1.
Remove the transmitter housing cover.
2. Open the warning flap.
3. Connect the power supply wires to terminals 9 and 10.
Terminate the positive (line) wire on terminal 10 and the return (neutral) wire on
terminal 9.

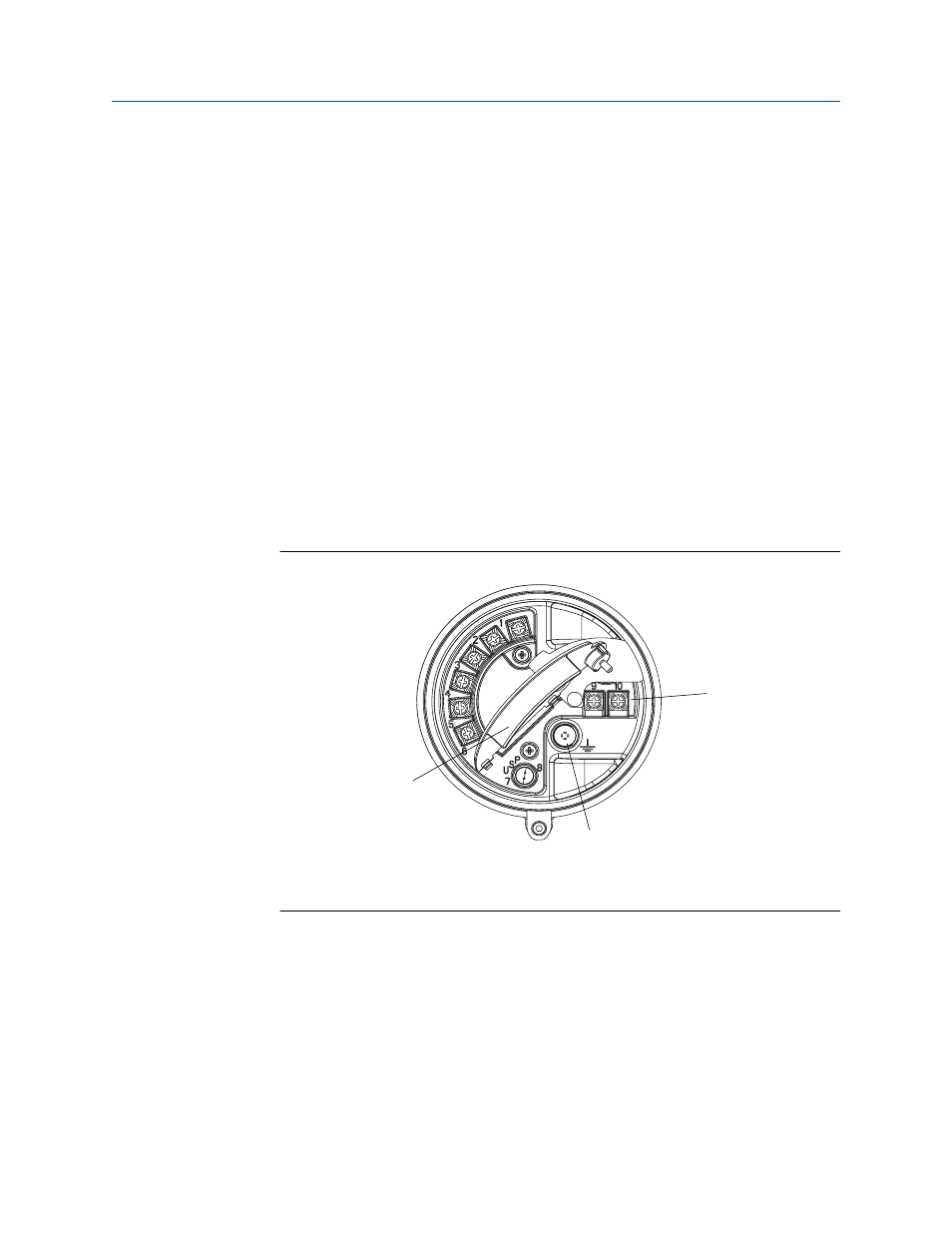

Power supply wiring terminals Figure 6-1:
A
B
C
A. Warning flap
B. Equipment ground
C. Power supply wiring terminals (9 and 10)
4. Ground the power supply using the equipment ground, also under the warning flap.
Wiring the power supply
Installation Manual 77
