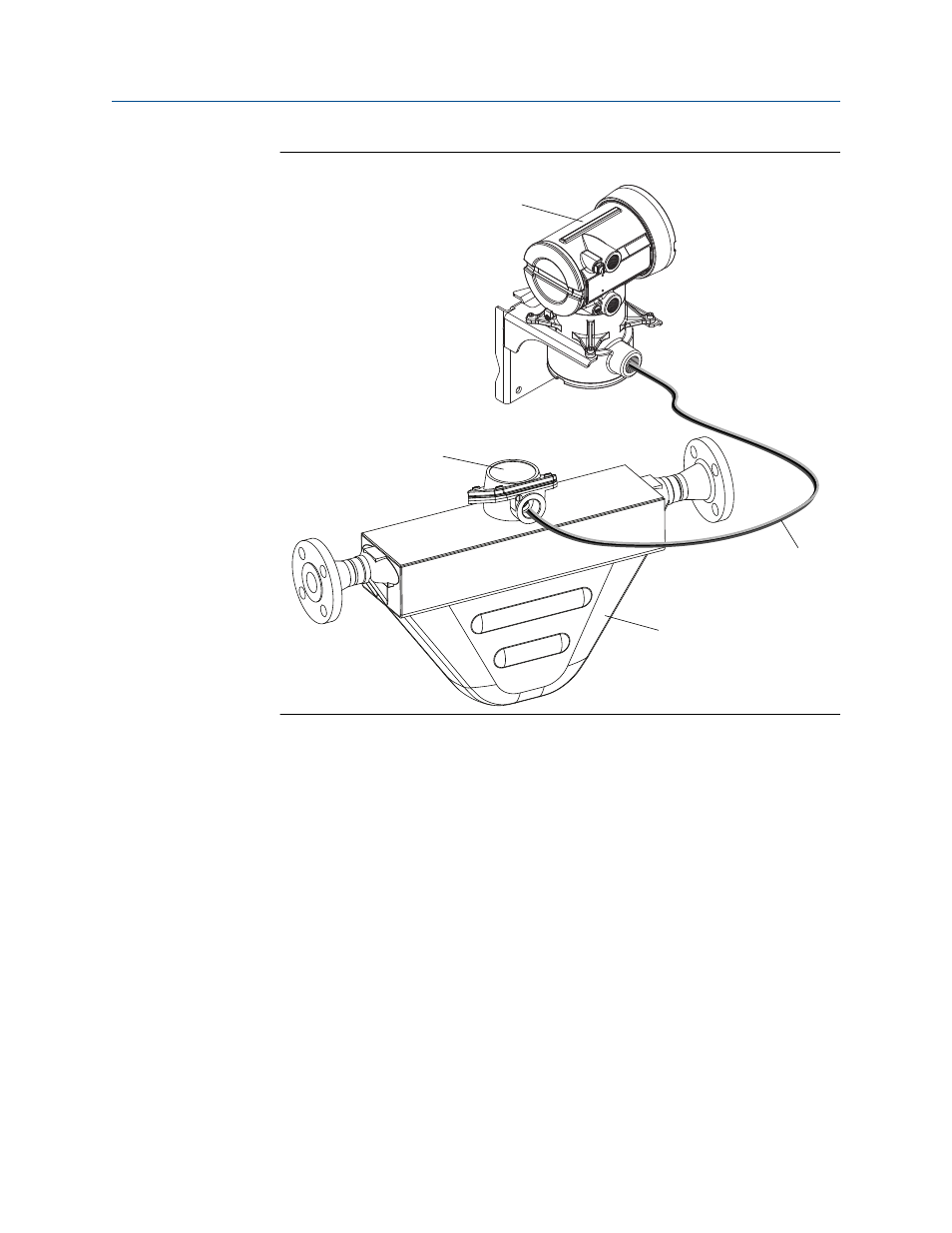

9-wire remote installation type Figure 1-5:
Transmitter
Junction box
Sensor
9-wire cable
• Remote core processor with remote sensor – A remote core process with remote
sensor installation separates all three components – transmitter, core processor,
and sensor – all of which are installed separately. A 4-wire cable connects the
transmitter to the core processor, and a 9-wire cable connects the core processor to
the sensor.
