Bend radii of armored cable Table 5-5:
Jacket material Outside diameter Minimum bend radii
Static (no load) condition Under dynamic load
PVC 0.525 inches (14 mm) 4–1/4 inches (108 mm) 8–1/2 inches (216 mm)
Teflon FEP 0.340 inches (9 mm) 3–1/4 inches (83 mm) 6–3/8 inches (162 mm)
Cable illustrations

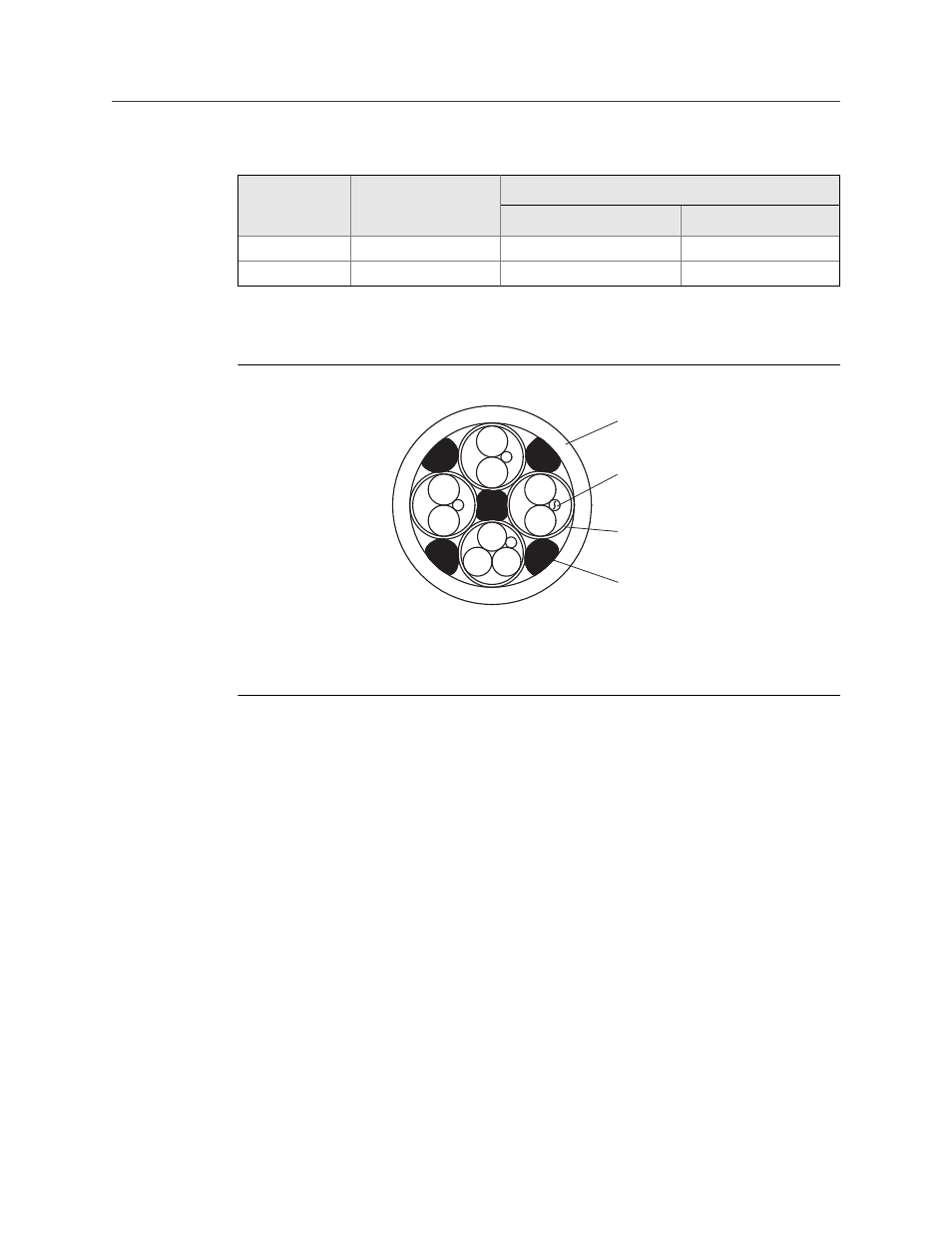

Cross-section view of jacketed cable Figure 5-13:
A
C (4)
B (4)
D (5)
A. Outer jacket
B. Drain wire (4 total)
C. Foil shield (4 total)
D. Filler (5 total)
Mounting and sensor wiring for remote core processor with remote sensor installations
Installation Manual 63
