9.4 Discrete output wiring
9.4.1 Internally powered discrete output wiring on Channel B

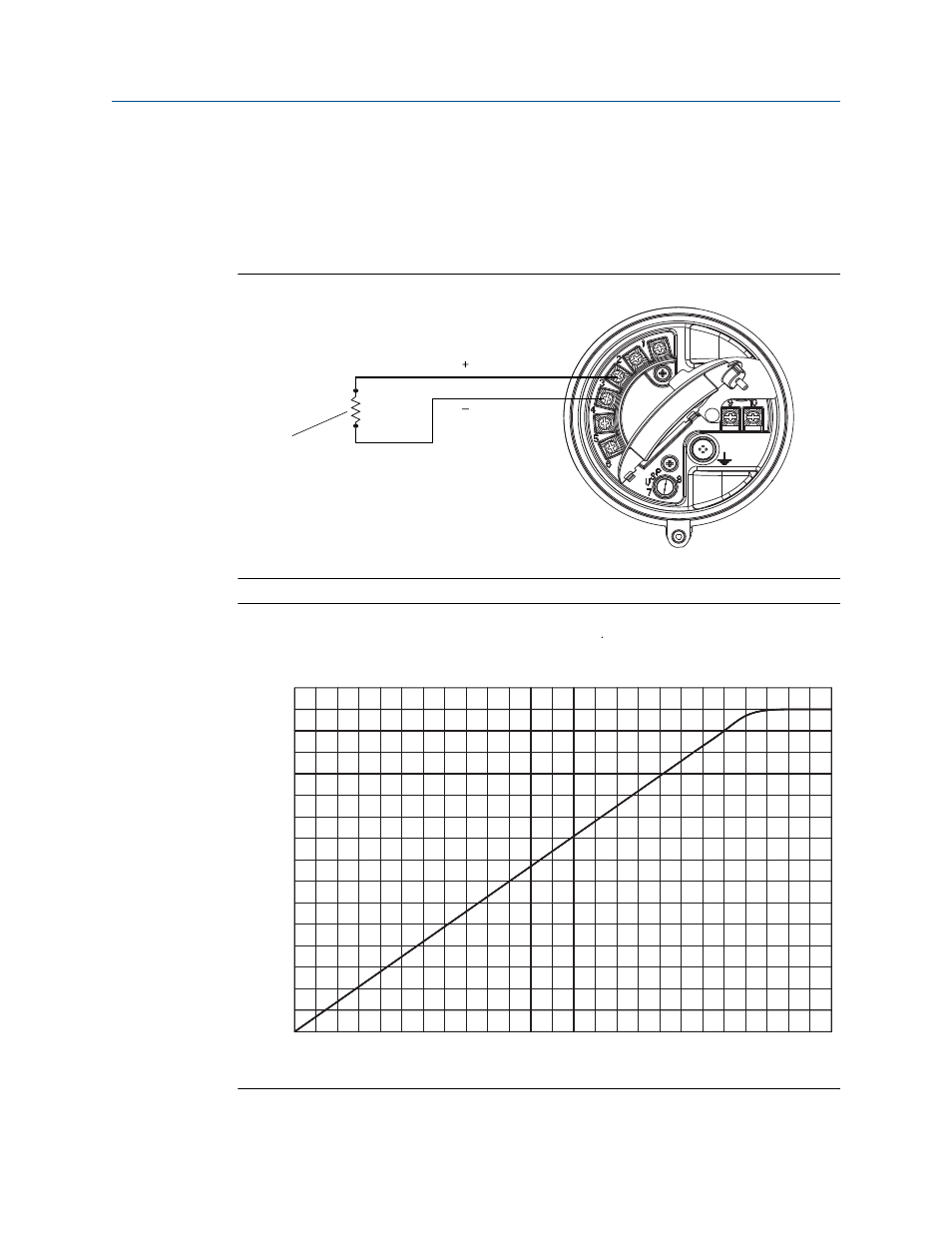

Internally powered discrete output wiring on Channel B Figure 9-12:
A
A. Total load
Output voltage versus load resistance Figure 9-13:
16
14
12
10
8
6
4
2
0
0 500 1000 1500 2000 2500
Load resistance (Ohms)
High level output voltage (Volts)
Maximum output voltage = 15 VDC ± 3%
I/O wiring for Model 2700 transmitters with configurable input/outputs
Installation Manual 103
