EAW DCT2 - Manual (Page 2)

SPECIFICATIONS DCT2

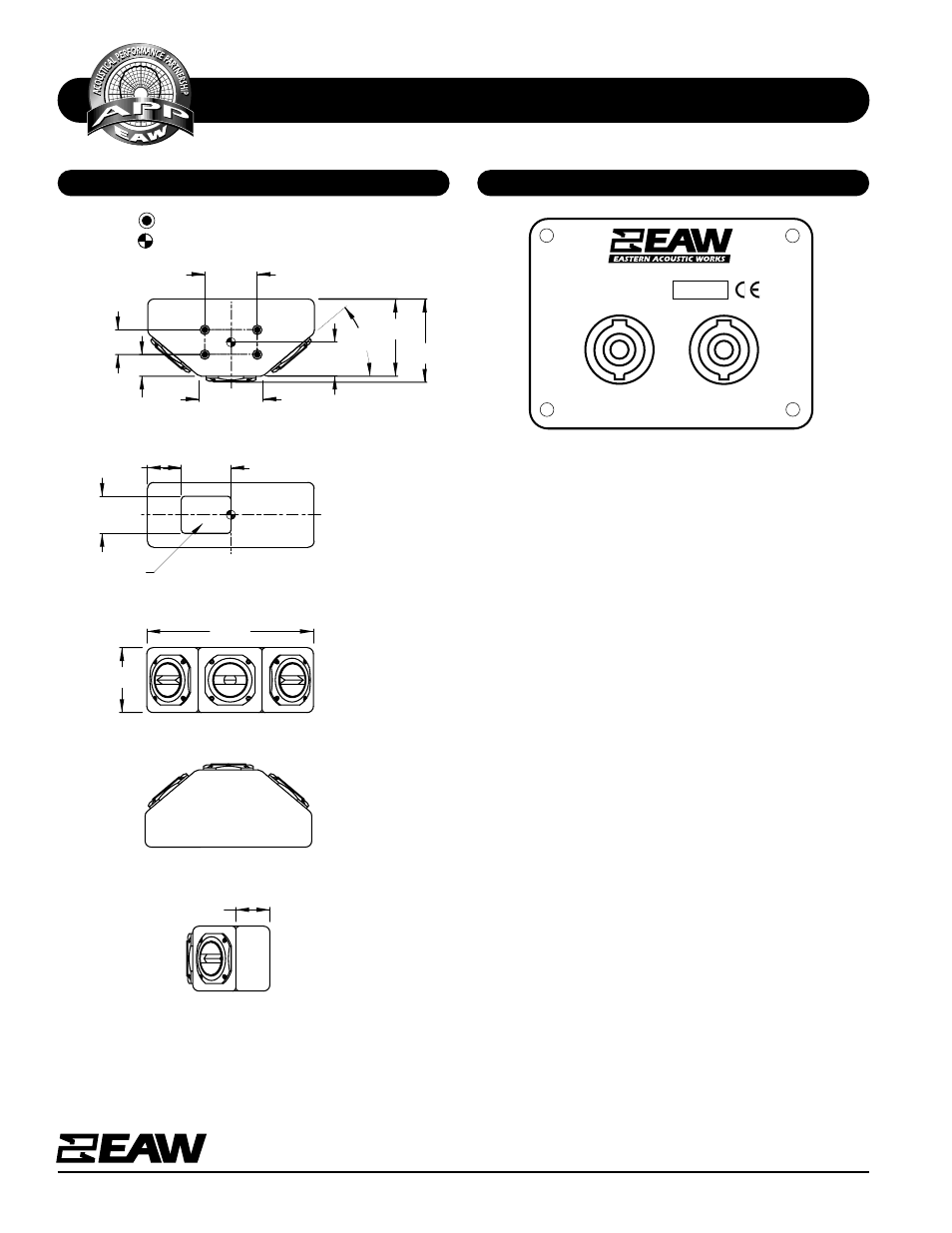

DIMENSIONAL DRAWING INPUT PANEL
One Main Street, Whitinsville, MA 01588 508 234 6158 Toll Free 800 992 5013 FAX 508 234 8251 [email protected] www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. DCT2/2 pp October 2001 Printed in USA
510943 (A)
7/31/01
Manufacturing tolerances are +/- 0.13 and +/- 1°
INDICATES MOUNTING POINT,
1/4-20 THREADED HOLE (T-NUT).
INDICATES CENTER OF BALANCE.
L
1.75
6.25
2.75
2.00
C
TOP
5.17
4.25
6.75
40¡
CL
BACK
2.75 4.00
INPUT
L
C 3.00
FRONT
13.50
5.25
BOTTOM
(2.75)
RIGHT SIDE
PIN 1--...--
PIN 1+...+
WHITINSVILLE, MA USA
S/N DCT2
NL4 MP NL4 MP NL4 MP NL4 MP
