Page 28
HDMI 201 Tx/Rx • Reference Information
Reference Information, cont’d
A-8
Adapters
Accessories
Part number
HDMIF-DVIDM
HDMI female to DVI-D male adapter
26-616-01
HDMIM-DVIDF
HDMI male to DVI-D female adapter
26-617-01

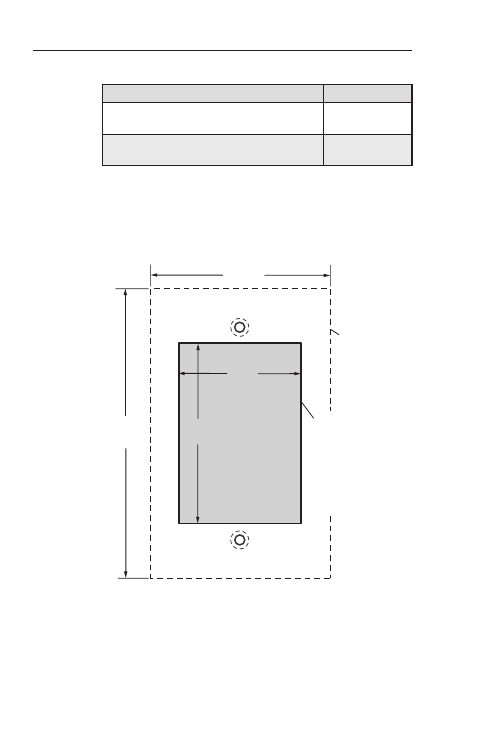

Decora Template Dimensions
If you need to create a template, use the dimensions shown on
figure A-1, below.
N
The drawing is not full size or to scale. Do not scale up
or print to use as a template.
4.50"
(11.43 cm)
Top
Panel
SURFACE CUT-OUT
AREA FOR
FURNITURE MOUNT
2.79"
(7.09 cm)
1.9"
(4.83 cm)
2.8"
(7.1 cm)
To install a
1-gang
HDMI 201 A D Tx or
HDMI 201 A D Rx
directly into
furniture or
wall, cut along
this line.
Figure A-1 — Decora Template Dimensions
