2-16 HDMI 201 Tx/Rx • Installation and Operation 2-17
HDMI 201 Tx Rear Panel
POWER
12V
0.4A MAX
RS-232
PASS THRU
Tx Rx 1 2
HDMI INPUT
HDMI 201 Tx
PO
WE
R
12V 0.4A MA
X
DO NOT
CONNECT
TO LAN
1
2
O
U
T
P
U
T
S
HDMI 201 A D Tx
L
A
U D
IO
OUTPU
T
R
4
6
HDMI 201 A D Tx Rear Panel
5
4 1 2 5

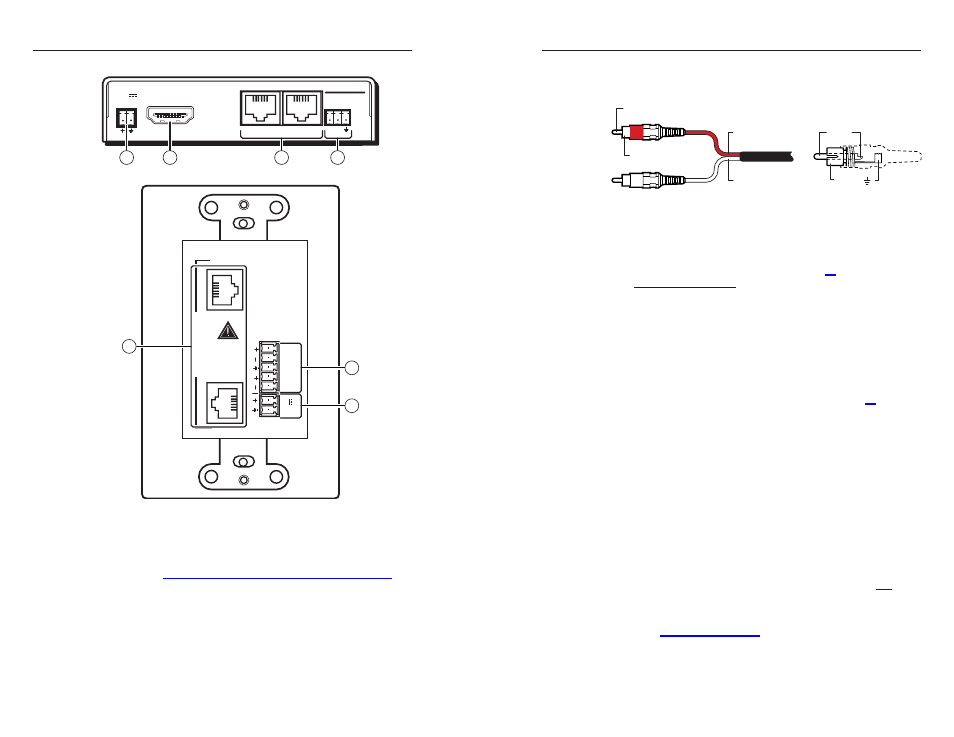

Figure 2-13 — HDMI 201 Tx rear panel connectors
N The RS-232 connector can also transmit one-way
modulated infrared (IR) signals. See "Modulated IR
pass through" on page 2-32.
c
Input Audio — Plug an unbalanced stereo audio input into this
pair, left and right, of female RCA connectors (figure 2-14).
Sleeve (Gnd )
Tip (+)
Sleeve ( )
Right Channel
(Red Jacket)
Left Channel
(White Jacket)
Tip (Signal)
Figure 2-14 — RCA connector wiring
d
DC power input connector — Plug the included external
12 VDC power supply into either this 2-pole connector or the
power input connector on the receiver (item g on page 2-20).
See "Power supply wiring," on page 2-25, to wire the connector.
e
Transmitter output connector — Connect one end of two
separate TP cables to these RJ-45 female connectors on the
transmitter.
C Do not connect these devices to a computer data or
telecommunications network.
Connect the free ends of the same TP cables from the transmitter
to the receiver’s Input RJ-45 female connectors (item h on
page 2-20).
N Connect transmitter output 1 to receiver input 1.
Connect transmitter output 2 to receiver input 2.
N If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit‘s “2” connector.
If the unpowered unit’s Power LED is lit, the
connection is correct.
If the unpowered unit’s Power LED is not lit,
unplug the connector on the unpowered end and
connect the other cable to the “2” connector.
See "TP cable termination," on page 2-22, to properly wire
the RJ-45 connectors.
