Troubleshooting, Application examples, Audio conversion – Extron electronic Digital Video Transmitter and Receiver HDMI 201 Tx/Rx User Manual

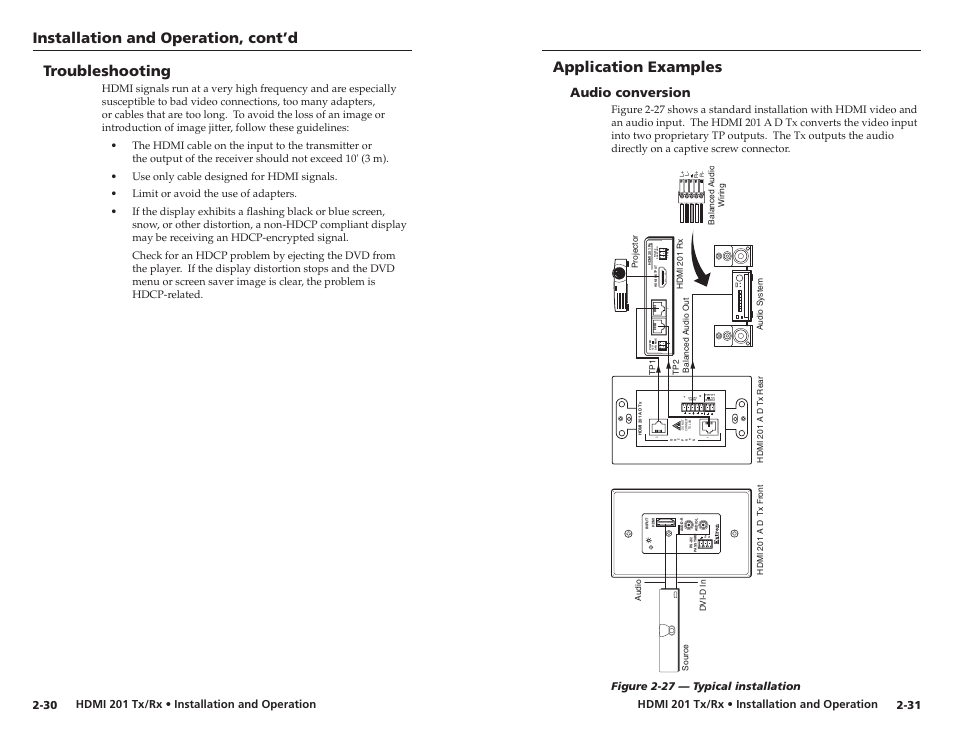

Page 23: Audio conversion -31, Installation and operation, cont’d, Hdmi 201 tx/rx • installation and operation, Figure 2-27 — typical installation
