RIGOL
Quick Guide for DSA1000 Series 1
Front Panel

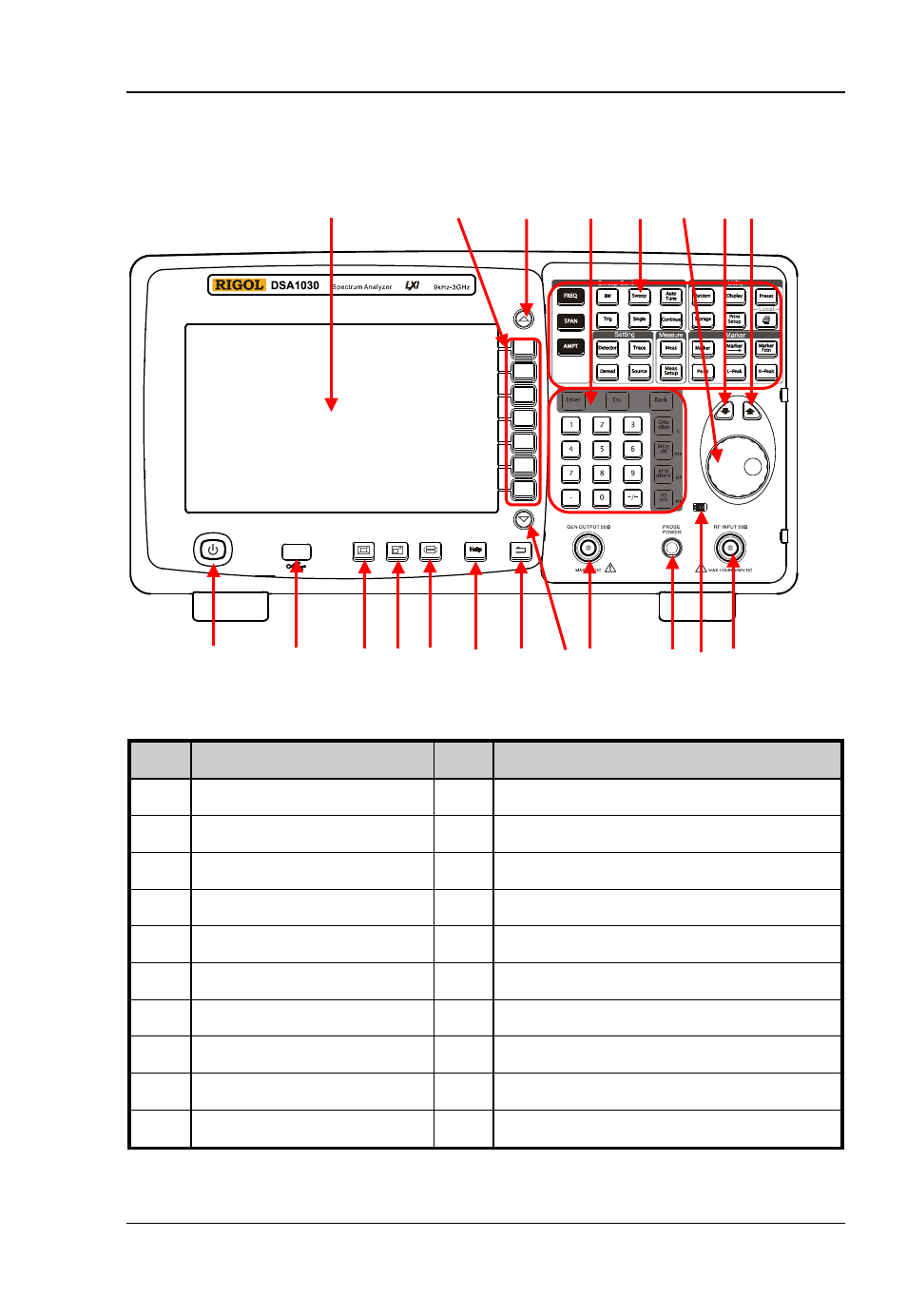

Figure 1 Front panel overview
Table 1 Front Panel Description
No. Description No. Description
① LCD ⑪ Full screen
② Menu keys ⑫ Zoom window
③ Page up ⑬ Switch window
④ Numeric keyboard ⑭ One-button help
⑤ Function key area ⑮ Back
⑥ knob ⑯ Page down
⑦ Down ⑰ Tracking generator output*
⑧ Up ⑱ Probe power output
⑨ Power key ⑲ Battery status indicator (China only)
⑩ USB Host interface ⑳ RF input
Note: *For DSA1030-TG only.
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳
