Powerfix Tile Cutter User Manual
Page 3
3
쎲 Notes regarding use
Preparation:
If you have never used a tile cutter before,
practise a few times on some old tiles before
using the tile cutter on new tiles.
Please, keep the tool away from
children!

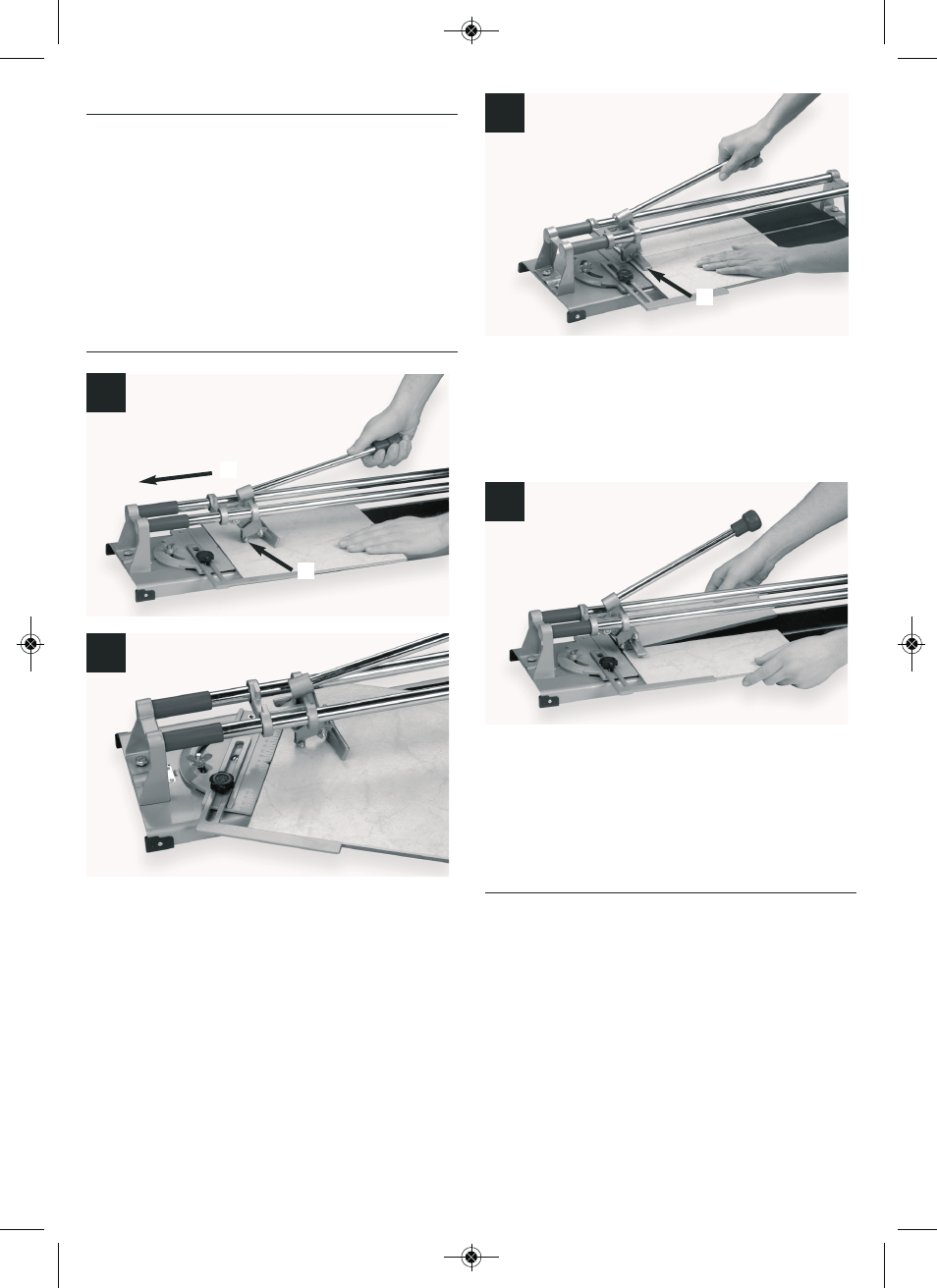

쎲 Instructions for use
At the angle stop, set the cutting width and
cutting angle. Place the required tile section up
against the measuring table. PUSH the cutting
wheel (1) across the glazed surface of the tile
with even pressure on the lever (3).
After cutting through the glaze of the tile, use the
breaking head (2) and push down on the lever
to break the tile at the cutting line. Caution:
The cutting wheel should not touch the tile whilst
you are breaking it (see the figure)!
Remove the tile pieces by pulling out to the
sides. Worn cutting wheels may be replaced
easily. Remember the cutting wheel has a
diameter of 22mm!
