Edelbrock E-Force Supercharger System for

the 2010-2013 Camaro SS

Installation Instructions

Page 19

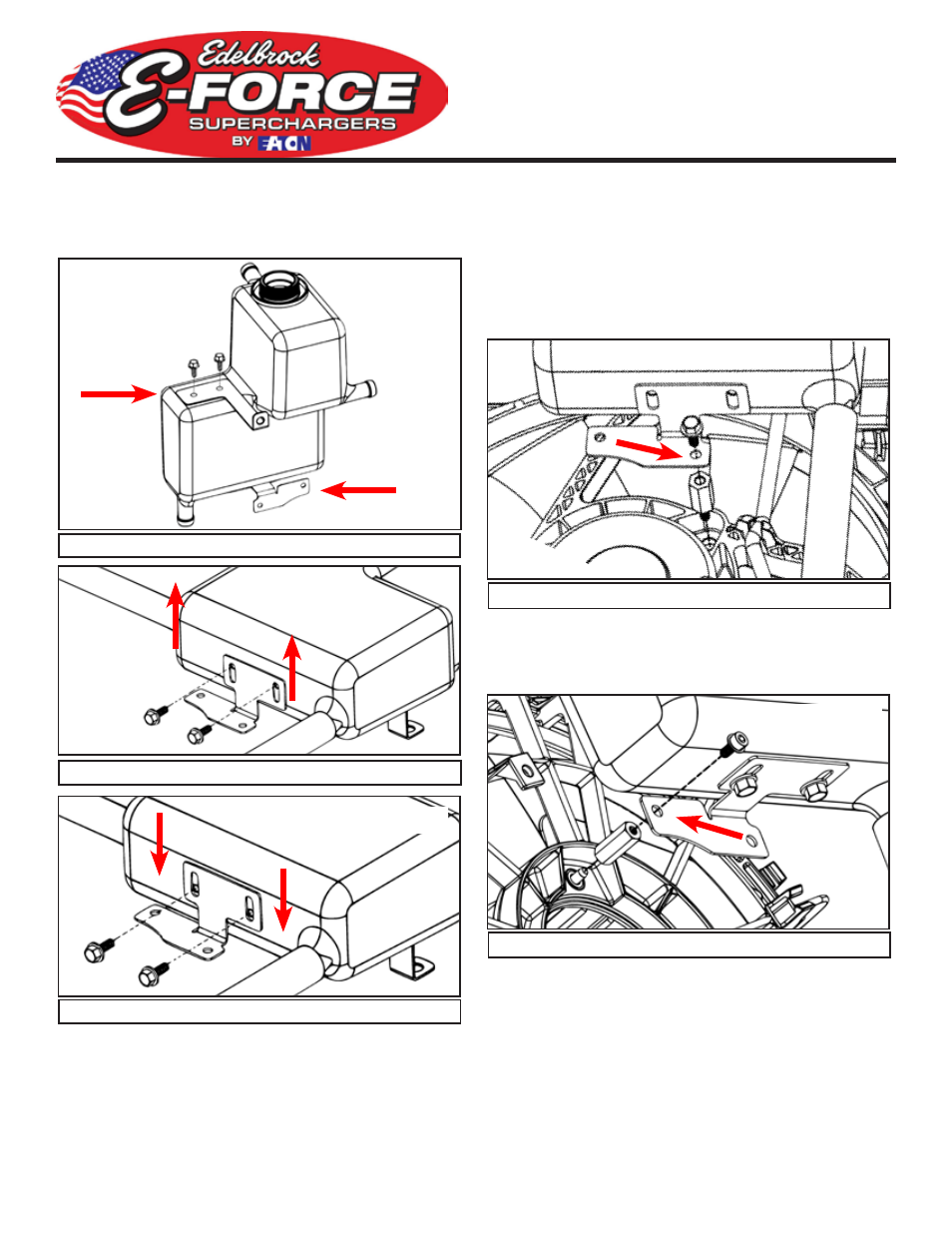

101. Mount the brackets, supplied in Bag #2, to the
intercooler reservoir with the M6 x 16mm bolts located in
Bag #2. Refer to figures 2a & 2b for the specific orientation
of the lower bracket for each model year.

2010-’11

Figure - 2a

Figure - 1

2012-’13

Figure - 2b

102.

FOR 2010-‘11 MODEL YEARS ONLY Use a 10mm

socket to remove the upper-outside bolt from the back-
passenger side of the radiator fan; retain the bolt as it will
be re-used.

103.

FOR 2012-‘13 MODEL YEARS ONLY Use a 13mm

wrench to install the standoff stud supplied in Bag #2 in
place of the bolt which was just removed. See Figure 3a.

2010-’11

Figure - 3a

104.

FOR 2012 - ‘13 MODEL YEARS ONLY Use a 10mm

wrench to install the standoff, supplied in Bag #2, to the
stud located on the back of the radiator fan. See Figure 3b

2012-’13

Figure - 3b
