Edelbrock E-Force Supercharger System for

the 2010-2013 Camaro SS

Installation Instructions

Page 10

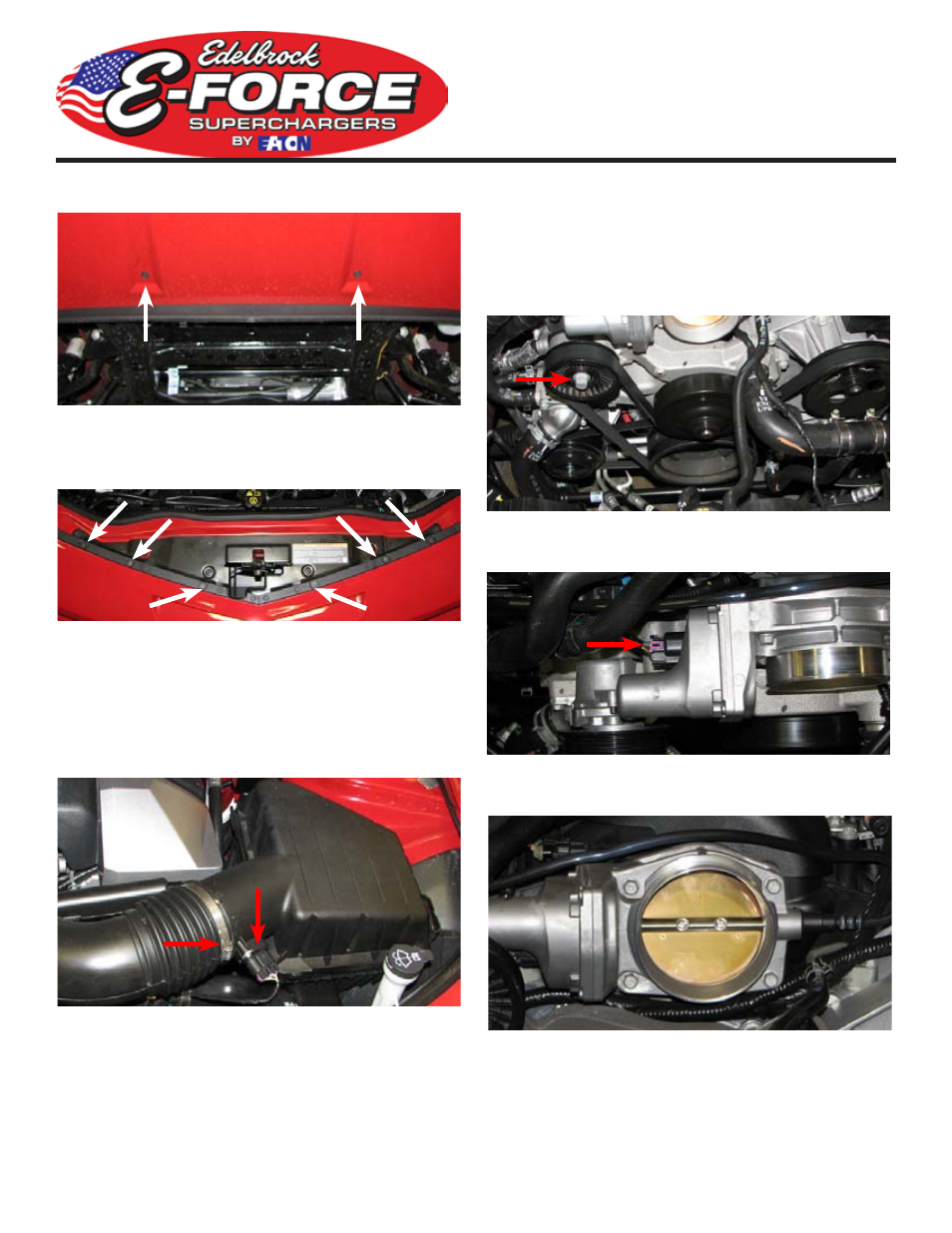

8. Use a 10mm socket to remove the two bolts retaining
the bottom of the fascia.

9. Use a panel puller to remove the six body pins holding
the top of the fascia then use a 10mm socket to remove the
bolt at each end of the top of the fascia.

10. The front fascia can now be removed by pulling it
forward off the vehicle. Set front fascia aside.

11. Remove the oil fill cap and remove the plastic engine
cover. Reinstall the oil fill cap.

12. Disconnect the Mass Airflow Sensor connector.

13. Use a flat head screwdriver to loosen the worm clamp
holding the inlet tube to the air box lid then remove the air
box lid by pushing the lock tabs back.

14. Disconnect the passenger side PCV tube from the valve
cover then use a flat head screwdriver to loosen the worm
clamp retaining the air intake tube to the throttle body.
Remove the air intake tube and PCV hose.

15. Use a 15mm socket and a breaker bar to loosen the
tensioner and remove the serpentine belt.

16. Disconnect the throttle body control connector on the
passenger side of the throttle body.

17. Use a 10mm socket to remove the four bolts retaining
the throttle body and set it aside.
