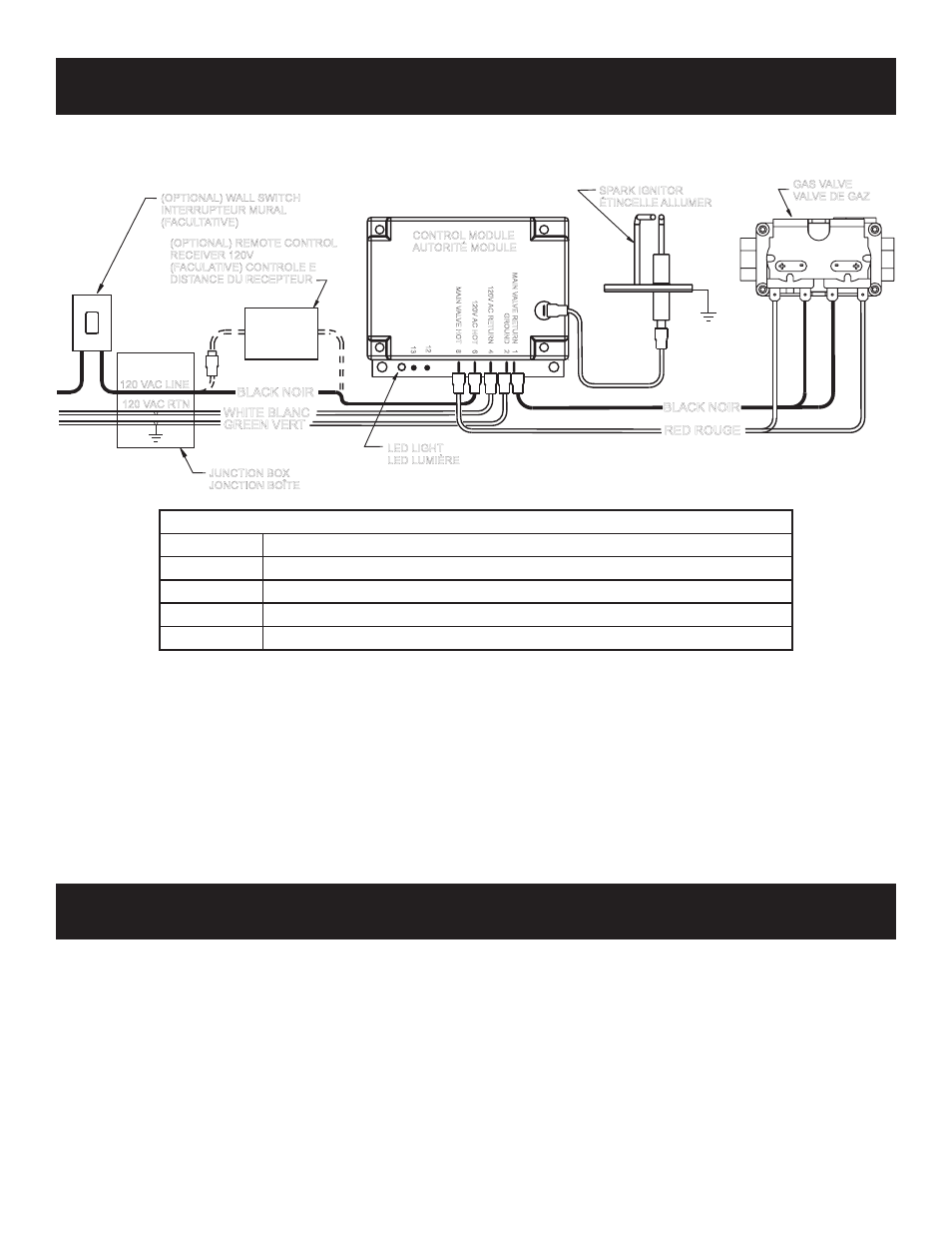

DIRECT IGNITION WIRING DIAGRAM
LED LIGHT
LED LUMIÈRE
BLACK NOIR
GREEN VERT
WHITE BLANC
RED ROUGE
BLACK NOIR
GAS VALVE
VALVE DE GAZ (OPTIONAL) WALL SWITCH
INTERRUPTEUR MURAL
(FACULTATIVE)
120 VAC LINE
120 VAC RTN
JUNCTION BOX
JONCTION BOÎTE
SPARK IGNITOR
ÉTINCELLE ALLUMER
(OPTIONAL) REMOTE CONTROL
RECEIVER 120V
(FACULATIVE) CONTROLE E
DISTANCE DU RECEPTEUR
MAIN
VA
LV
E
RETURN
1
12 13
GROUND
2
120V
AC
RETURN
4
120V
AC
HOT
6
MAI
N
VAL
VE
HOT
8
CONTROL MODULE
AUTORITÉ MODULE
OR THERMOSTAT
LED CODES
Steady ON Normal operation, power ON to control
2 Flashes 3 unsuccessful ignition trials
3 Flashes Main burner flame failed 4 times during a single heating cycle
4 Flashes Interrupt power for 5 seconds to reset control
Steady Flash Flame detected out of sequence
OPTIONAL REMOTE CONTROL
Electric (120 volt) Operated Remote Control (FREC)
1. Disconnect 3-prong power cord from receptacle.
2. Remove wire from 120 VAC hot terminal on control
module.
3. Connect female terminal from receiver onto 120 VAC hot
terminal on control module.
4. Connect remaining wire from remote control (male
terminal) to (female terminal) on power cord removed
from control module (step 2).
Figure 61
5. Insert electric remote control power cord plug into the
junction box on the right side of fireplace.
6. Connect 3-prong plug into receptacle. See wiring diagram
on page 53.
