23552-4-0408 Page 16

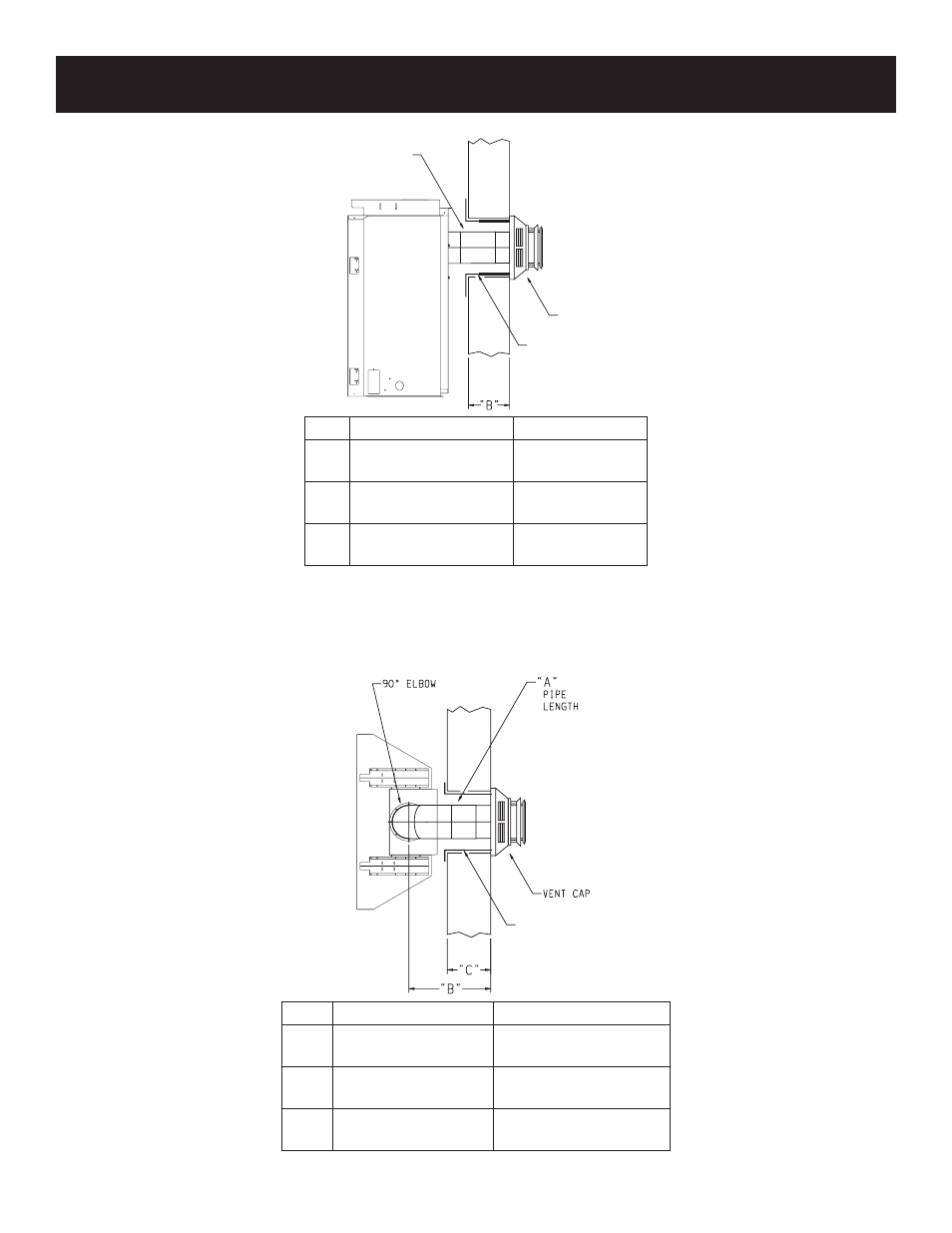

HORIZONTAL ONLY, STRAIGHT OUT THE BACK
Figure 16
VERTICAL, 90° ELBOW TO HORIZONTAL OUT THE WALL
Figure 17
VENT CAP
A"
PIPE LENGTH
WALL FIRESTOP/
THIMBLE
"
"A" "B" Models
6" 5 1/8" to 6 1/2"
(130 mm to 165 mm)
DVD 32,36,42,48
9" 8 1/8" to 9 1/2"
(206 mm to 241 mm)
DVD 32,36,42
12" 11 1/8" to 12 1/2"
(283 mm to 317 mm)
DVD 32,36,42
WALL FIRESTOP/
THIMBLE
"A" "B" "C"
6" 11 1/4" to 12 3/4"
(286 mm to 324 mm)
4 3/4" to 6 1/4"
(121 mm to 159 mm)
9" 14 1/4" to 15 3/4"
(362 mm to 400 mm)
7 3/4" to 9 1/4"
(197 mm to 235 mm)
12" 17 1/4" to 18 3/4"
(438 mm to 476 mm)
10 3/4" to 12 1/4"
(273 mm to 311 mm)
INSTALLATION (continued)
