Standing pilot wiring diagram – Empire Comfort Systems DVD32FP3 User Manual

Page 40

background image

23552-4-0408

Page 40

Figure 60

(OPTIONAL) THERMOSTAT

(OPTIONAL) WALL SWITCH

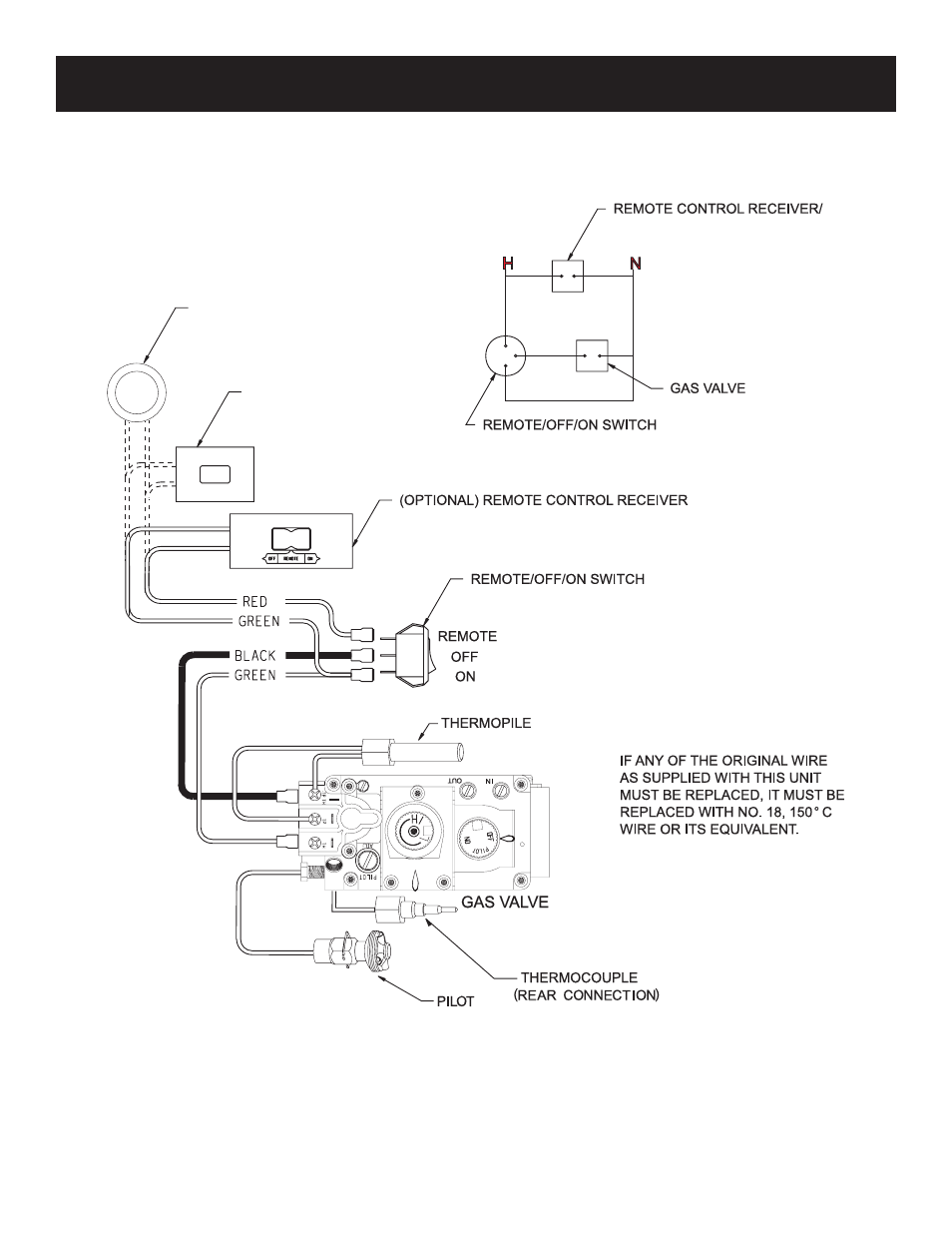

STANDING PILOT WIRING DIAGRAM
