Venting fireplace - top (continued) – Empire Comfort Systems DVD32FP3 User Manual
Page 20
23552-4-0408
Page 20
B
C
A
CENTER OF ELBOW
STRAIGHT OUT
(MINIMUM)
D
C
B
V
H
MAXIMUM HORIZONTAL
RUN WITH NO VERTICAL
RISE AND 90° ELBOW
MAXIMUM HORIZONTAL
RUN WITH MINIMUM
VERTICAL RISE AND
90° ELBOW
minimum
Figure 25
Figure 26
FIREPLACE
SERIES
HARD ELBOW DIMENSIONS
"A"
"B"
"C"
"D"
DVD32FP
41-1/2"
(1054 mm)
4"
(102 mm)
6"
(152 mm)
9 1/8"
(232 mm)
DVD36FP
41-1/2"
(1054 mm)
4"
(102 mm)
6"
(152 mm)
9 1/8"
(232 mm)
DVD42FP
43-1/2"
(1105 mm)
4"
(102 mm)
6"
(152 mm)
9 1/8"
(232 mm)
DVD48FP
43-1/2"
(1105 mm)
4"
(102 mm)
6"
(152 mm)
9 1/8"
(232 mm)
FIREPLACE
SERIES
FLEX PIPE 90 DEGREE BEND
"A"
"B"
"C"
"D"
DVD32FP
43"
(1092 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD36FP
43"
(1092 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD42FP
45"
(1143 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)
DVD48FP
45"
(1143 mm)
4-1/2"
(114 mm)
6-1/2"
(165 mm)
9 1/8"
(232 mm)

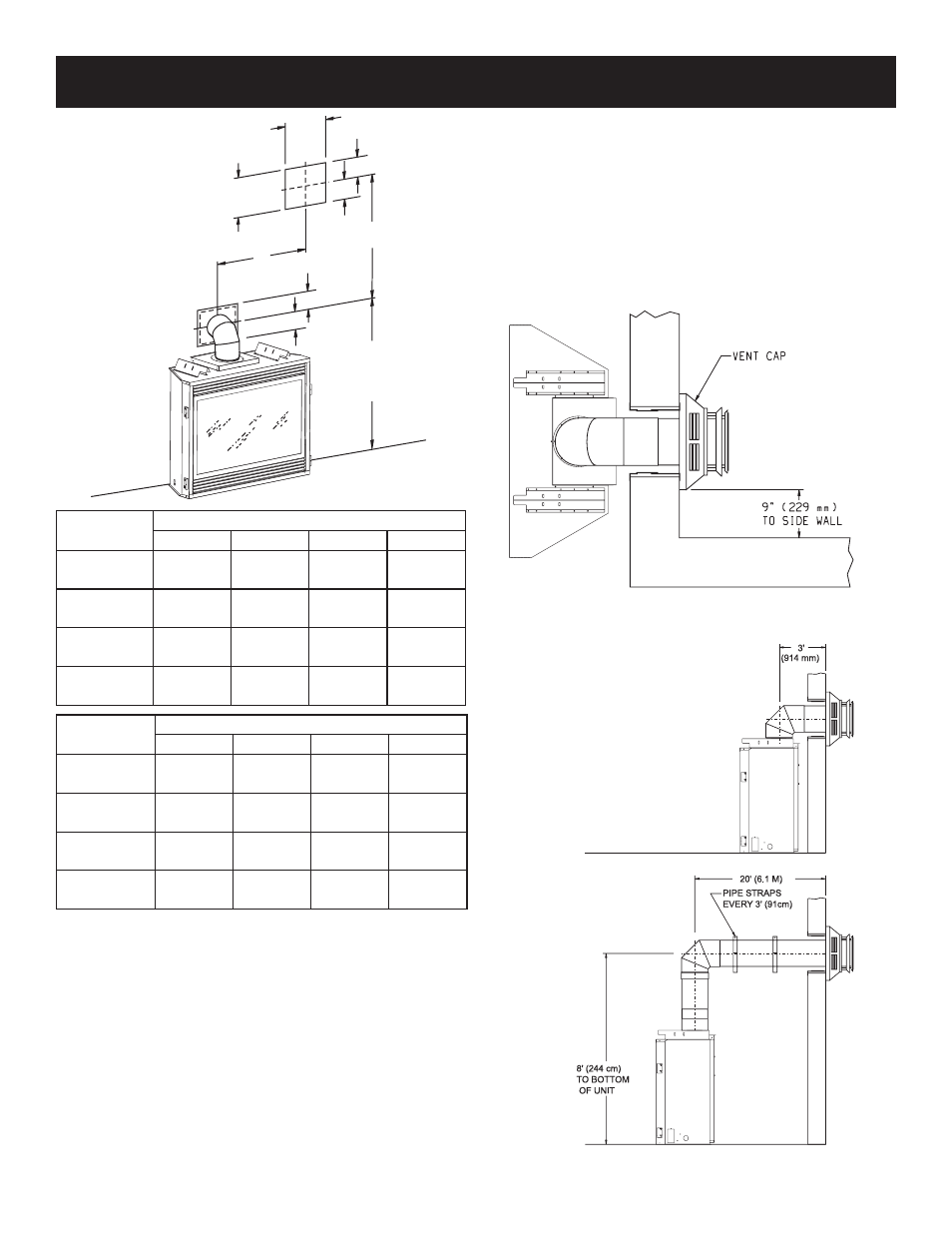

Figure 24
MINIMUM HOLE LOCATION DIMENSIONS FOR THROUGH
THE WALL HORIZONTAL INSTALLATIONS WITH 90 DEGREE
ELBOW OFF TOP OF FIREPLACE
SEE FIGURE 20 ON PAGE 18 FOR PERMISSIBLE "H" AND "V"
DIMENSIONS.
VENTING FIREPLACE - TOP (continued)
Positioning the Fireplace
Determine the exact position of the appliance so the direct vent
termination will be centered (if possible) between two (2) studs. This
will avoid any extra framing. All vent kit pipes should be assembled
on the unit after the unit is moved into the final position.
Cutting the Hole (Figures 24)
After the fireplace has been positioned in its permanent location,
the hole through the exterior wall of the house can be cut. This hole
must be 10" (254mm) high x 10" (254mm) wide with its center
line determined by the amount of vertical rise and horizontal run
of the termination. (See Figure 24) When locating the hole it must
be noted that the bottom of the cap must be 12" (305mm) above the
ground level, and top of the cap must be no less than 18" (457mm)
below a combustible projection, and no closer than 9" (229mm) to
any wall running parallel to vent termination. (See Figure 25)
