FX40HR MOTORIZED TREADMILL
Visit us at: www.evofitness.com
5

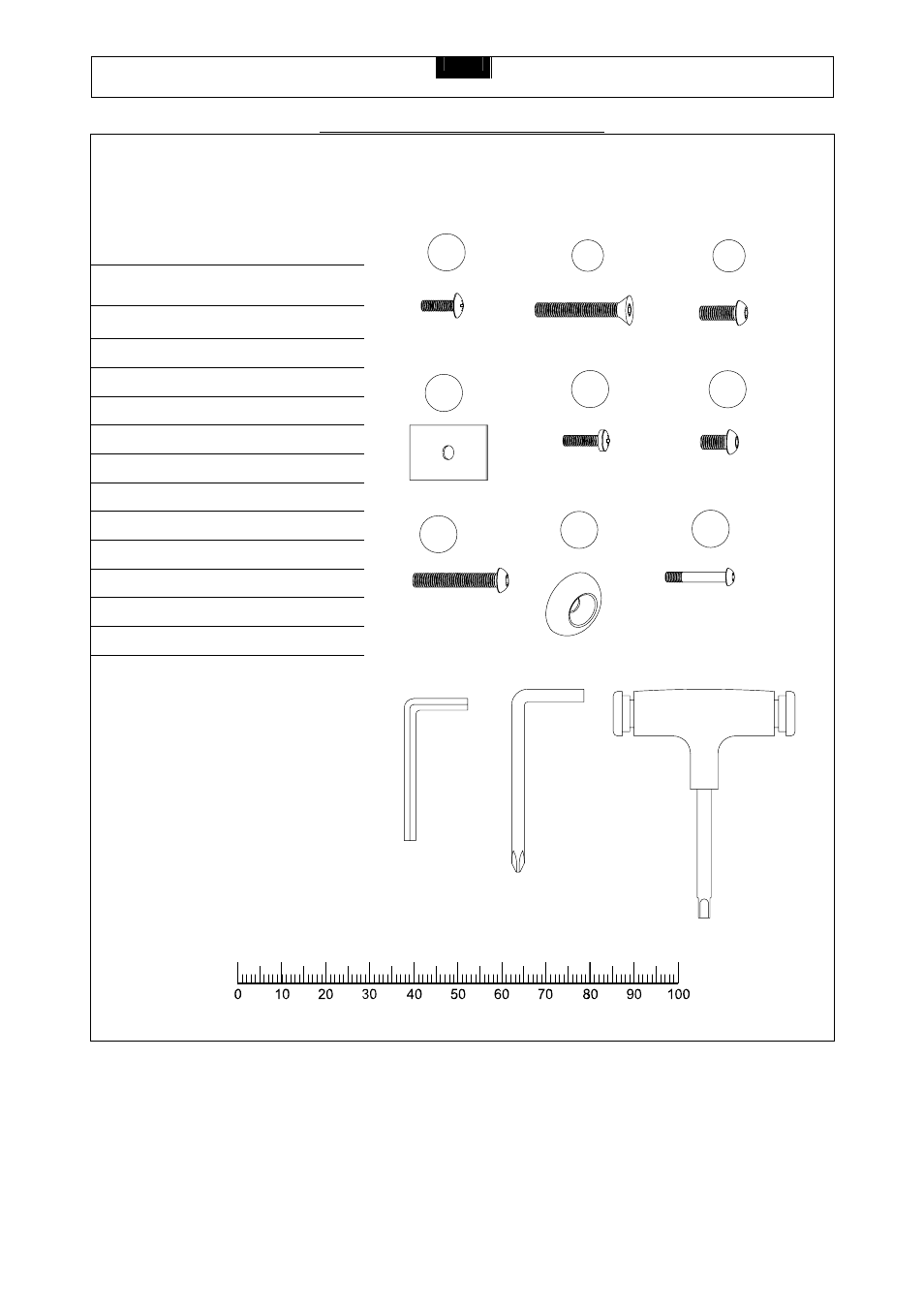

HARDWARE COMPARISON CHART
Hardware chart:
For your convenience, we have identified the hardware used in the assembly of this product. This chart is provided to
help you identify those items that may be unfamiliar to you.
NO. DESCRIPTION QTY.
9
M6 x 15mm
Screw 4
13
M8 x 50mm Allen Head
Bolt
4
17 #8 x 19mm Screw 8
21 Plastic Cover 2
22 M6 x 20mm Screw 2
23 M8 x 19mm Bolt 4
109 M8 x 76mm Bolt 2
110 Metal Cap 2
119 Handlebar Fixing Plate 2
132 M6 x 55mm Bolt 2
A Wrench 1
B Screw Driver 1
C Allen Wrench 1
110
22
17
109
21
9
23
A B C
132
13
MILIMETERS
