FX40HR MOTORIZED TREADMILL
Visit us at: www.evofitness.com
12
ASSEMBLY
STEP 2:
NOTE: YOU WILL NEED THE HELP OF ANOTHER PERSON IN ORDER TO COMPLETE STEP 2 OF THE
ASSEMBLY PROCEDURE.
First remove the M6 x 55 Bolt (132) and 6 x 13mm Washer (133) from Base Frame (34).

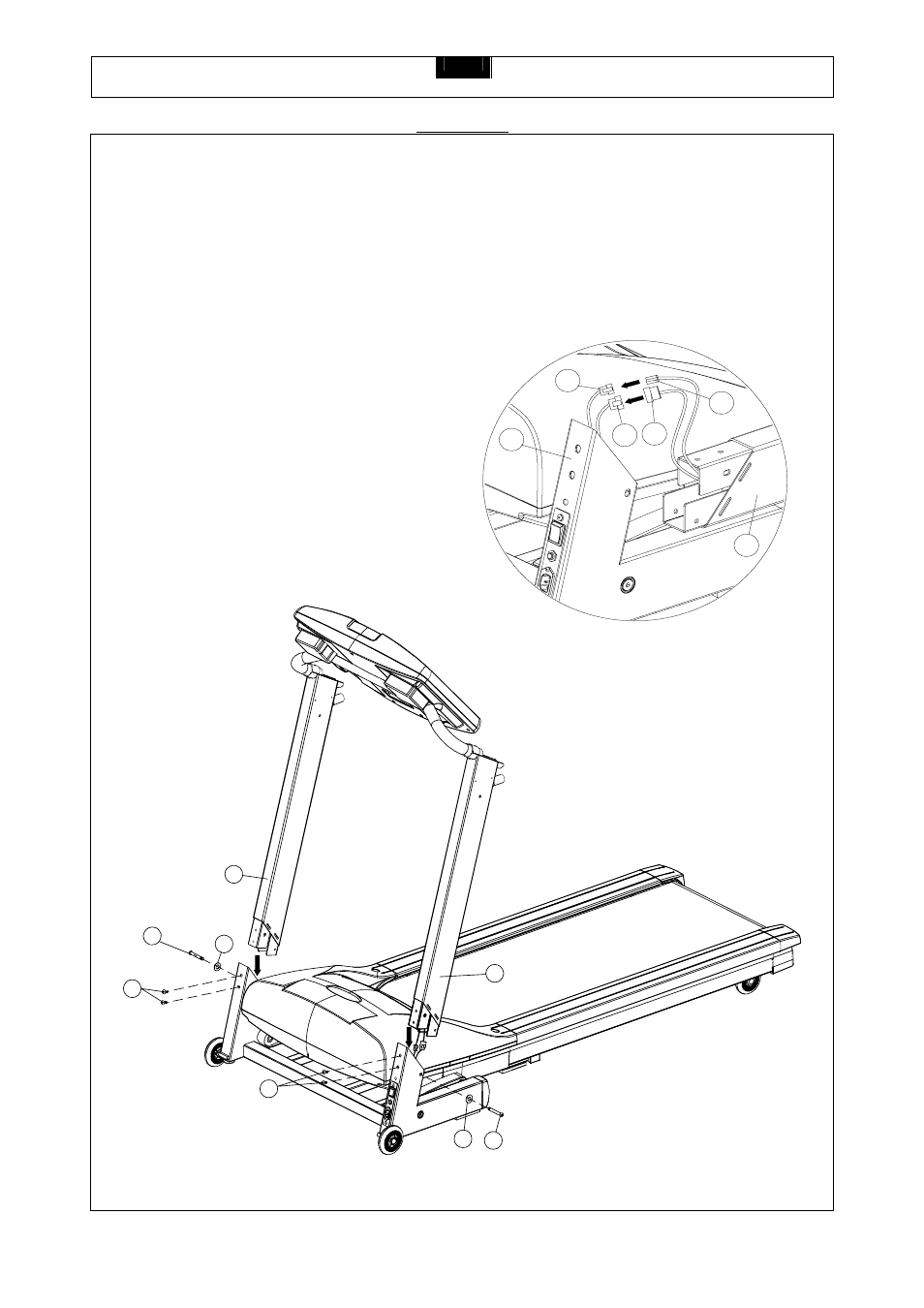

Connect the wires from the Left Upright (19) and Base Frame (34) as FIG.2 shown. Attach the Left Upright (19) and
Right Upright (20) to the Base Frame (34) and secure in place using four M8 x 15 Bolt (23), two M6 x 55mm Bolt
(132) and two 6 x 13mm Washer (133).
23
23
132
19
20
132
133
133
FIG.2
34
19
129
128 130
131
