FX40HR MOTORIZED TREADMILL
Visit us at: www.evofitness.com
16
ASSEMBLY
STEP 6:

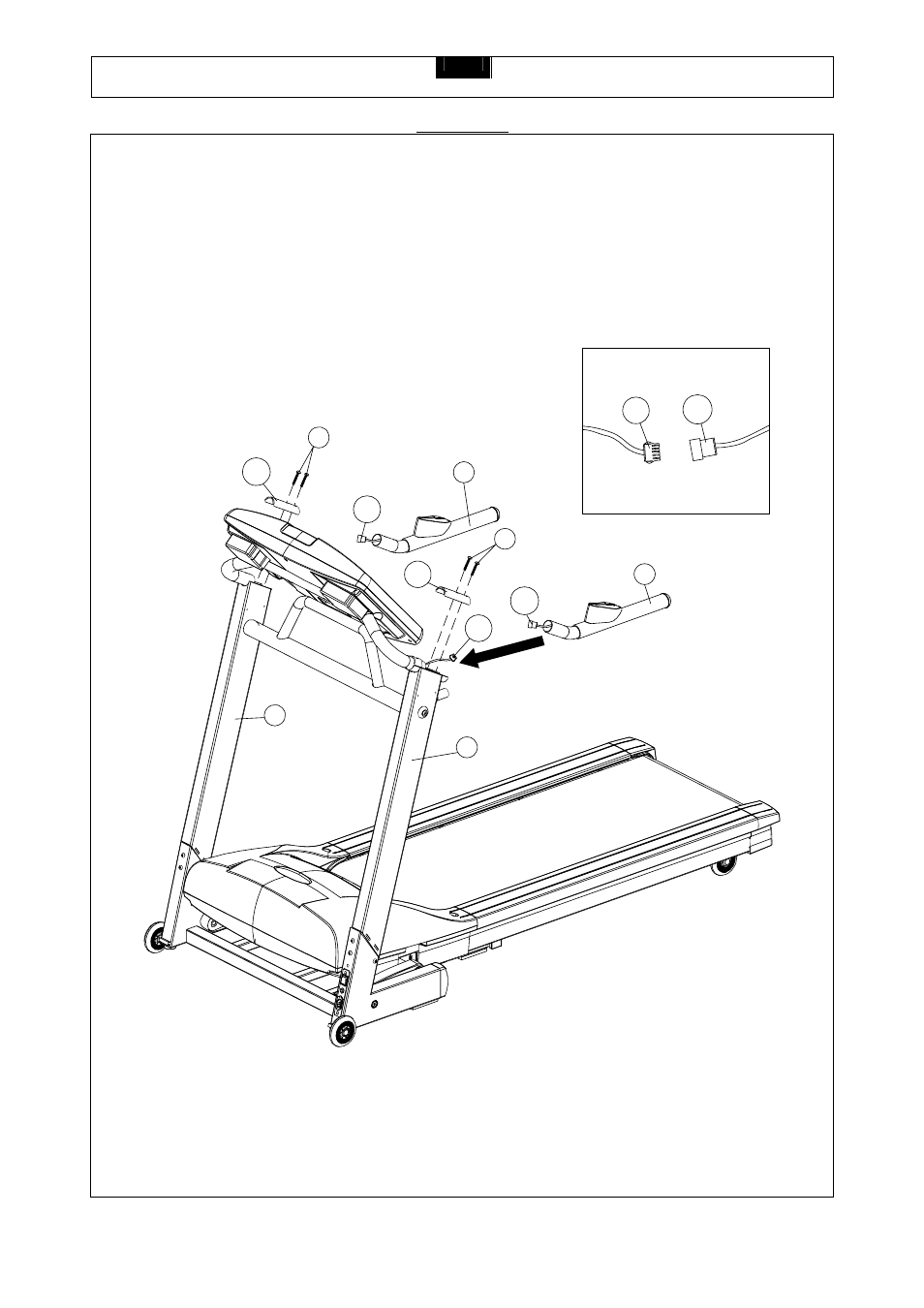

First connect the wires between the Left Handlebar (14) and
Console Support Tube (8) as shown then attach the Left
Handlebar (14) to the Left Upright (19) using one Handlebar Fixing Plate (119) and two M8 x 50 Bolts (13). Repeat
this procedure for the Right Handlebar (15) and Right Upright (20).
13
13
14
15
122
119
122
119
19
20
121
121
122
