FX40HR MOTORIZED TREADMILL
Visit us at: www.evofitness.com
18
ASSEMBLY

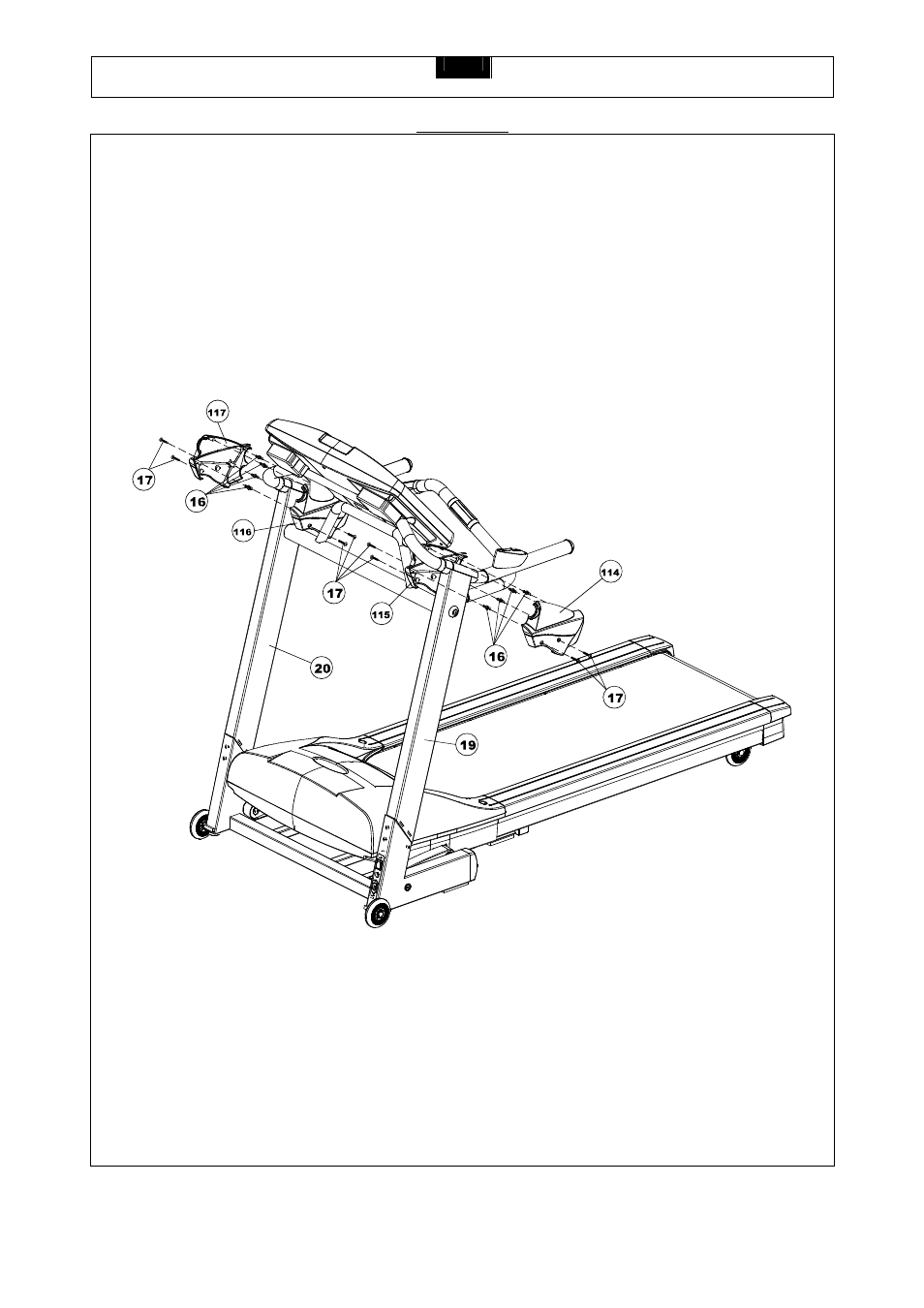

STEP 8:
Attach the Handlebar Rear End Cap – Left #1 (114) and Handlebar Rear End Cap – Left #2 (115) to Left Upright (19)
using Plastic Fixing Insert (
16) and four #8 x 18 Screw (17).
Attach the Handlebar Rear End Cap – Right #1 (117) and Handlebar Rear End Cap – Right #2 (116) to Right Upright
(20)
using Plastic Fixing Insert (1
6) and four #8 x 18 Screw (17).
