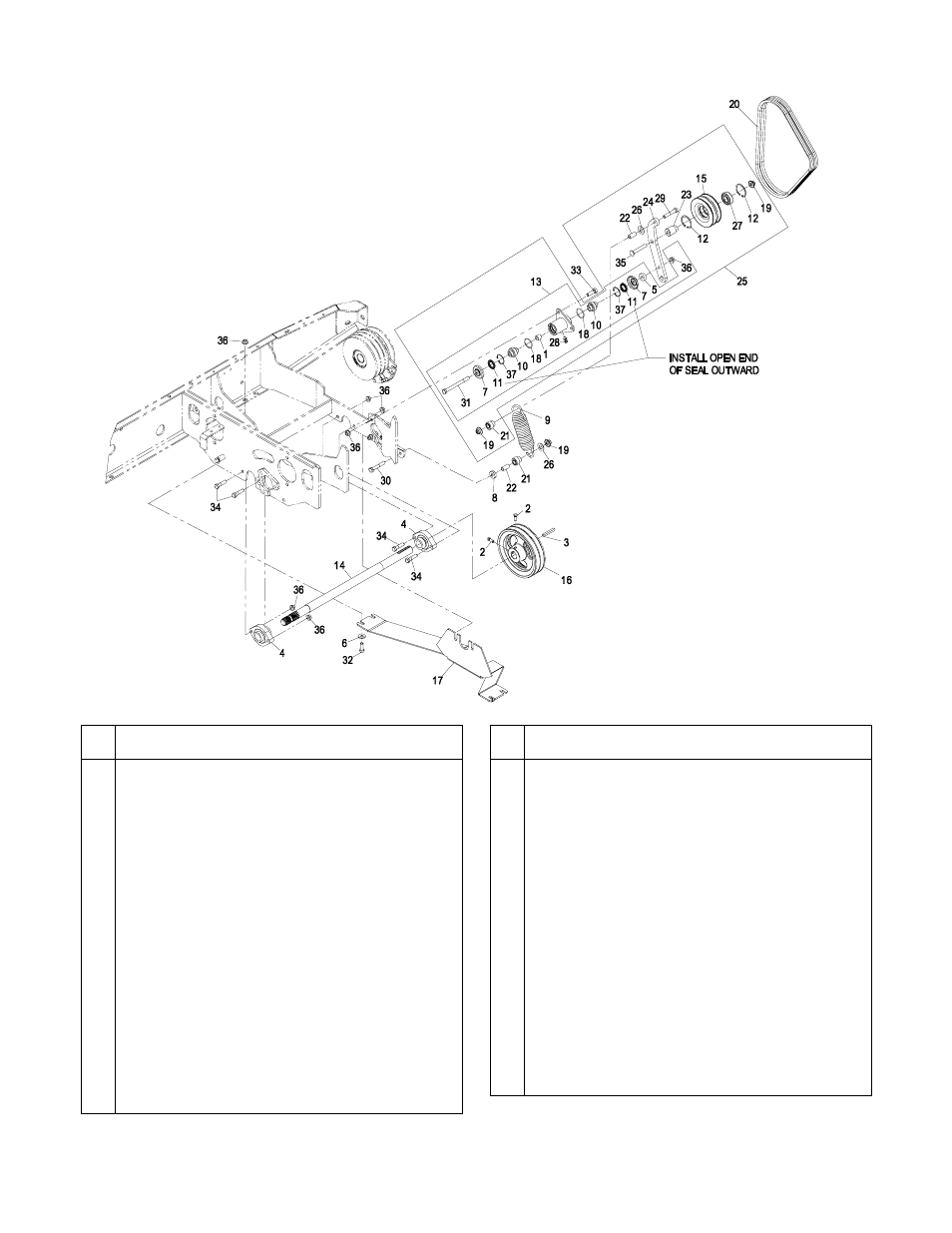

PTO DRIVE GROUP
7
Item
Part No.
DESCRIPTION
Qty.
1 1-413088 Spacer ...................................................1
2▲ 1-803050 Setscrew, 5/16-18 x 3/4 .........................2
3 5-1336 Key, Machine 1/4 x 1/4 x 2 .....................1
4 92-8799 Bearing, Flanged....................................2
5 94-4685 Spacer, Idler ..........................................1
6 98-5975 Washer, Spring Disc 3/8 ........................4
7 103-2916 Guard, Top.............................................2
8 103-3186 Spacer, Guide Bracket...........................1
9 103-3330 Spring, Extension...................................1
10 103-3504 Bearing, Spherical..................................2
11 103-3506 Seal, Single Lip......................................2
12 32151-13 Ring, Retaining ......................................2
13 103-6409 Asm, Pump Idler ....................................1
14 103-6779-03 Shaft, Line .............................................1
15 103-6813 Pulley, Idler ............................................1
16 103-6814 Sheave ..................................................1
17 103-8366-03 Guard,
Linedrive ....................................1
18 106-7159 O-Ring ...................................................2
19
109-6658 Nut, Nyloc 3/8-16 Flg .............................3
Item
Part No.
DESCRIPTION
Qty.
20 109-7588 Belts, Matched Pair ............................... 2
21 109-8752 Bushing, Plastic ..................................... 2
22 109-8753 Spacer ................................................... 2
23
109-8833 Spacer, Idler Bearing ............................. 1
24 109-8838 Arm, Idler............................................... 1
25 109-8876 Asm, Linedrive Idler............................... 1
26 112-9771 Washer, Teflon ...................................... 2
27 251-347 Bearing, Ball Deep Groove .................... 1
28 302-40 Zerk, 90° 1/4-28..................................... 1
29 323-10 Screw, HH 3/8-16 x 2............................. 1
30 323-11 Screw, HH 3/8-16 x 2 1/4....................... 1
31 323-17 Screw, HH 3/8-16 x 4 1/4....................... 1
32 323-6 Screw, HH 3/8-16 x 1............................. 4
33 323-7 Screw, HH 3/8-16 x 1 1/4....................... 3
34 323-8 Screw, HH 3/8-16 x 1 1/2....................... 4
35 3231-31 Bolt, Carriage 3/8-16 x 2 1/2 .................. 1
36 3290-357 Nut, Whizlock 3/8-16 ............................. 12
37 32120-10 Ring, Retaining ...................................... 2
Exmark black touch up spray paint – Gloss black
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on setscrew, item #2.
