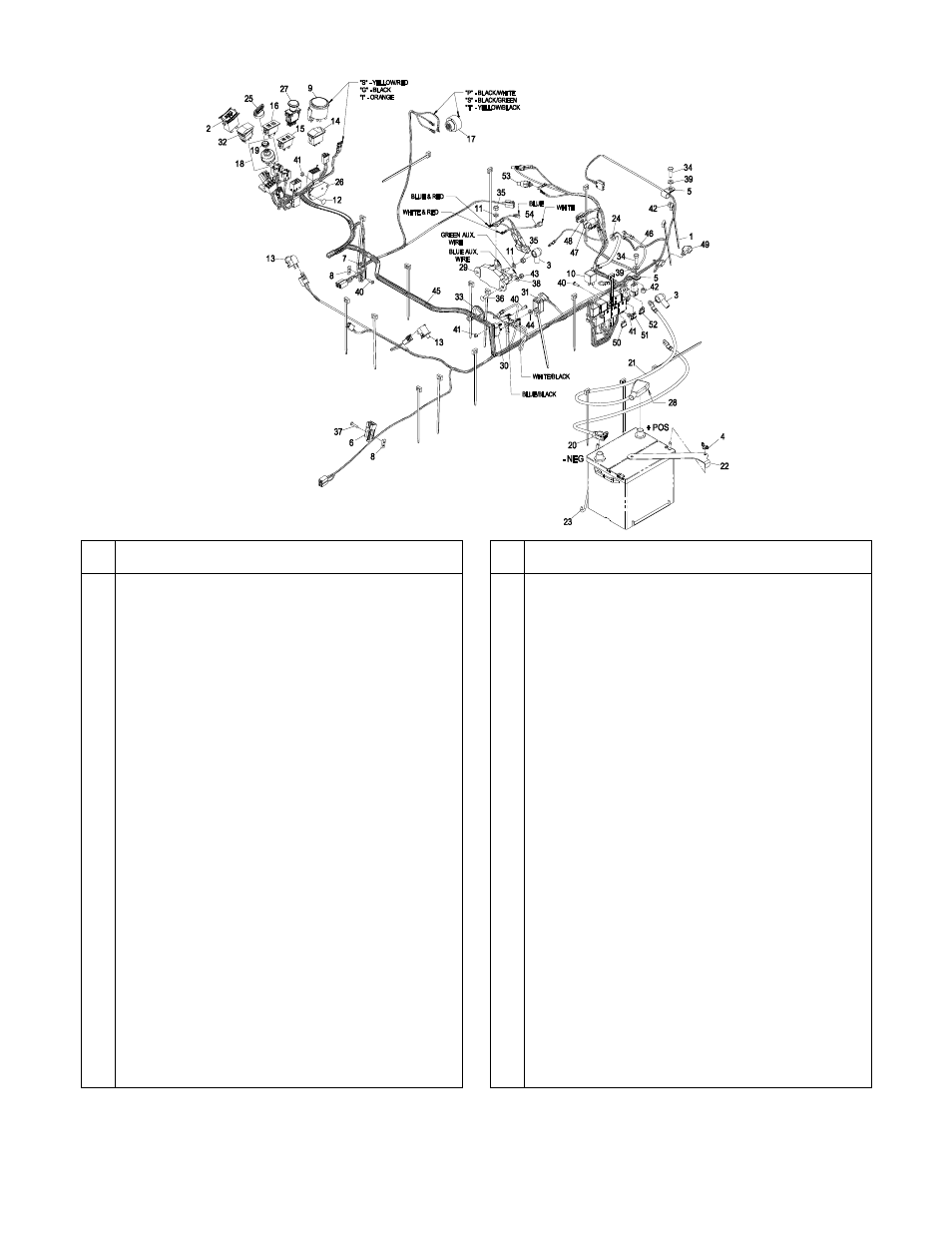

ELECTRICAL GROUP
17
Item
Part No.
Description
Qty.
1 1-303335 Tie, Cable 7 15/16 (Large) .....................20
2 1-513374 Meter, Engine Hours ..............................1
3 1-543393 Insulator, Solenoid .................................2
4 1-543792 Wingnut, Nyloc 1/4-20............................2
5 1-603727 Clip, Loom .............................................2
6 1-633110 Switch ....................................................1
7 1-633111 Switch ....................................................1
8 1-633181 Plate,
Tapped ........................................2
9 1-643021 Gauge, Temperature..............................1
10 1-643275 Relay, 12VDC 40 Amp...........................4
11 1-805005 Washer, Lock 5/16 Heavy......................4
12 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
13 82-2190 Switch ....................................................2
14 109-4813 Switch ....................................................1
15 100-8070 Cluster,
Lights........................................1
16 100-8071 Cluster, Lights........................................1
17 103-0205 Alarm, Dual Tone 12VDC.......................1
18 109-4736 Asm, Switch W/Nut................................1
19 103-0498 Nut, Ignition............................................1
20 103-1159 Cable, Ground (-) ...................................1
21● 109-7607 Cable, Battery (+)...................................1
22 109-1898-03 Strap, Battery.........................................1
23 103-1312 Bolt, Hold Down .....................................2
24 103-1349 Cable, Engine Ground............................1
25 103-2106 Key, Exmark Logo..................................1
26 103-5218 Module, Seat Delay................................1
27 103-5221 Switch, PTO...........................................1
Item
Part No.
Description
Qty.
28 103-1340 Insulator, Battery ................................... 1
29 109-0742 Contactor, Reversing Polarity ................ 1
30 109-2398 Breaker, Circuit 40A............................... 1
31 109-2571 Cover, Circuit Breaker ........................... 1
32 110-0811 Switch.................................................... 1
33 240-3
Grommet ............................................... 1
34 322-5 Screw, HH 5/16-18 x 1........................... 2
35 3219-2 Nut, Hex 5/16-24.................................... 4
36 3229-2 Bolt, Carriage 1/4-20 x 1 ........................ 2
37 3250-27 Screw, PPH #10-24 x 7/8....................... 2
38 3256-22 Washer, 1/4 SAE................................... 2
39 3256-23 Washer, 5/16 SAE................................. 2
40 3290-500 Screw, PPH #10-24 x 5/8....................... 6
41 3296-2 Nut, Nyloc #10-24 .................................. 6
42 3296-29 Nut, Nyloc 5/16-18 ................................. 2
43 3296-42 Nut, Nyloc 1/4-20................................... 2
44 32149-8 Nut-Keps 10-32 Unf YZ ......................... 2
45♦ 109-1212 Harness, Wiring..................................... 1
46♦ 109-2589 Harness, Auxiliary Hydraulics ................ 1
47 1-643178 Cap, Insulator ........................................ 1
48 33013-00 Nut, Whizlock M8-1.25........................... 1
49 100-4918 Diode ..................................................... 3
50 109355
Fuse, 15A .............................................. 1
51 1-816001 Fuse, 20 Amp ........................................ 1
52 103-1368 Fuse, 40 Amp ........................................ 1
53■ 103-7886 Sender, Temperature............................. 1
54♦ 109-4433 Harness, Diode...................................... 1
Exmark black touch up spray paint – gloss black.
X Use dielectric grease on all wiring harness connectors.
„ Use Teflon Pipe sealant on Pipe threads on temperature sending unit
● Includes items 3 and 28.
