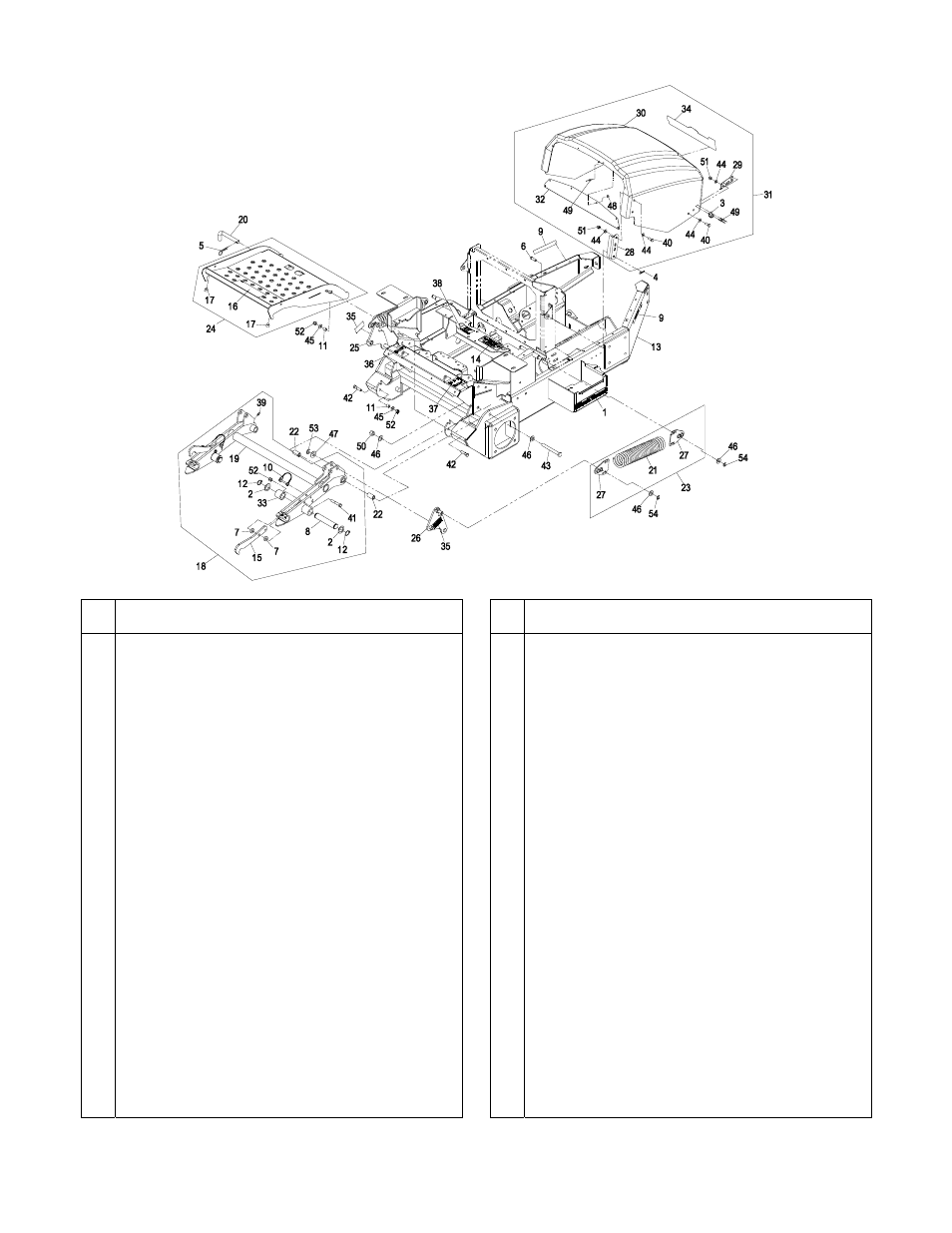

MAIN FRAME GROUP (cont.)
5
Item
Part No.
DESCRIPTION
Qty.
1 1-513747 Decal, Battery ........................................1
2 1-523157 Washer ..................................................4
3 1-643189 Keeper,
Rubber Latch ............................2
4 1-806003 Hairpin, Cotter........................................2
5 1-806005 Hairpin, Cotter........................................1
6 1-808285 Pin, Clevis 3/8 x 1 1/8 ............................2
7 5-0652 Spacer ...................................................4
8 93-2699 Pin .........................................................2
9 98-4361 Decal, Warning ......................................2
10 100-1663 Pin .........................................................2
11 103-1166 Spacer ...................................................2
12 32151-36 Ring,
Retaining ......................................4
13 109-2764 Asm, Main Frame W/Decals ..................1
14 103-7218 Decal, Pump Fan Warning.....................1
15 103-9727 Latch, Hitch............................................2
16 107-2112 Decal, Danger........................................1
17 107-8042 Bumper, Rubber.....................................2
18 109-0075 Asm, Hitch .............................................1
19 109-0080-03 Wld, Hitch ..............................................1
20 109-0325 Pin, Full Fold..........................................1
21 109-0411 Spring ....................................................2
22 109-0435 Bushing..................................................4
23 109-0450 Asm,
Spring ...........................................2
24 109-2772 Asm, Floorpan W/Decals .......................1
25 109-2773 Asm, Spring Bellcrank W/Decals (RH)...1
26 109-2774 Asm, Spring Bellcrank W/Decals (LH) ...1
27 109-0634 Wld, Spring Anchor................................4
Item
Part No.
DESCRIPTION
Qty.
28 109-3461-03 Arm, Pivot.............................................. 2
29 109-1257-03 Hook, Hood............................................ 2
30 109-3198 Hood W/Decal ....................................... 1
31 109-2858 Asm, Hood............................................. 1
32 109-1990-03 Screen, Hood......................................... 1
33 109-2004 Roller, Lock Lever.................................. 2
34 109-2114 Decal, Frontrunner................................. 1
35 109-2355 Decal, Spring Loaded ............................ 2
36 109-2356 Decal, Motion Control ............................ 1
37 109-2357 Decal, Motion Cntl/Park Brake............... 1
38 109-2396 Decal, Pump Drive Release................... 1
39 302-19 Zerk, 1/4-28 Str...................................... 2
40 322-4 Screw, HH 5/16-18 x 7/8........................ 8
41 323-11 Screw, HH 3/8-16 x 2 1/4....................... 2
42 323-8 Screw, HH 3/8-16 x 1 1/2....................... 2
43 325-18 Screw, HH 1/2-13 x 4 1/2....................... 2
44 3256-23 Washer, 5/16 SAE................................. 16
45 3256-24 Washer, 3/8 SAE................................... 2
46 3256-26 Washer, 1/2 SAE................................... 8
47 3256-27 Washer, 5/8 SAE................................... 2
48 3269-10 Washer.................................................. 6
49 3269-24 Rivet ...................................................... 10
50 3296-23 Nut, Nyloc 1/2-13................................... 2
51 3296-29 Nut, Nyloc 5/16-18 ................................. 8
52 3296-39 Nut, Nyloc 3/8-16................................... 4
53 32120-19 E-Ring ................................................... 2
54 32120-47 Ring,
Retaining ...................................... 4
Exmark red touch up paint (spray paint - P/N 1-850337 - .6 oz liquid bottle - P/N 103-9140).
Exmark black touch up spray paint – Gloss black
