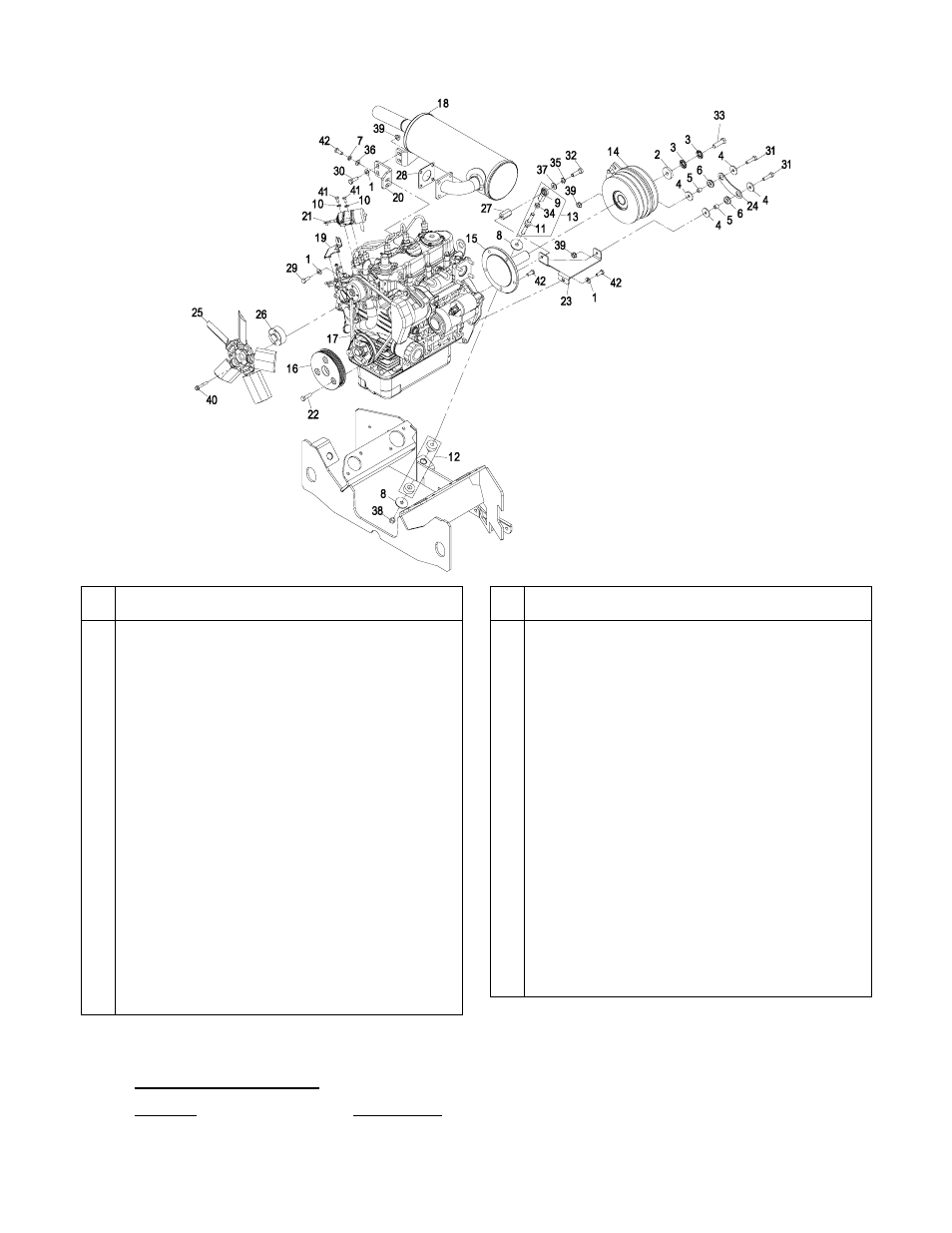

ENGINE GROUP
11
Item
Part No.
Description
Qty.
1 1-303334 Washer, Spring Disc 5/16 ......................4
2 1-543610 Washer ..................................................1
3
1-603610 Washer, Spring Disc 7/16 ......................2
4 1-613235 Washer ..................................................4
5 1-633545 Spacer ...................................................2
6 1-633630 Grommet................................................2
7
1-805005 Washer, Lock 5/16 Heavy......................2
8 93-6099 Washer ..................................................2
9 103-0608 Balljoint ..................................................1
10 1-805004 Washer, Lock 1/4 Heavy........................2
11 103-3567 Link, Rear A-T Axial ...............................1
12 103-3568 Isolator, A-T ...........................................1
13 103-3745 Asm, RR A-T .........................................1
14 109-6627 Kit, Clutch ..............................................1
15 103-6773 Shaft, Flywheel ......................................1
16 103-6774 Sheave ..................................................1
17 109-2901 Belt ........................................................1
18X 109-2855 Kit, Muffler .............................................1
19 108-5922 Bracket, Throttle Support .......................1
20 109-0787-03 Bracket, Muffler Mounting ......................1
21 109-1211 Solenoid, Fuel........................................1
22V 33114-030 Screw, HH M8-1.25 x 30mm ..................3
Item
Part No.
Description
Qty.
23 109-2361-03 Bracket, Clutch Anchor .......................... 1
24 109-2362 Link, Clutch............................................ 1
25 109-2587 Fan ........................................................ 1
26 109-2675 Spacer,
Fan........................................... 1
27 109-2763 Spacer, A-T ........................................... 1
28 109-2783 Gasket, Exhaust .................................... 1
29 322-4 Screw, HH 5/16-18 x 7/8........................ 1
30 322-5 Screw, HH 5/16-18 x 1........................... 2
31 322-6 Screw, HH 5/16-18 x 1 1/4..................... 2
32 323-7 Screw, HH 3/8-16 x 1 1/4....................... 1
33V 3212-6 Screw, HH 7/16-20 x 1 1/2..................... 1
34 3220-3 Nut, Jam 3/8-24 ..................................... 1
35 3253-5 Washer, Lock 3/8 Heavy........................ 1
36 3256-23 Washer, 5/16 SAE................................. 2
37 3256-24 Washer, 3/8 SAE................................... 1
38 3296-6 Nut, Nyloc 3/8-24................................... 1
39 32128-20 Nut, Whizlock 5/16-18 ........................... 4
40V 33103-040 Screw, HH FLG M6-1 x 40mm ............... 4
41 33113-012 Screw, HH M6-1 x 12mm....................... 2
42V 33114-020 Screw, HH M8-1.25 x 20mm .................. 8
43 103-9891 Spacer ................................................... 1
Exmark black touch up spray paint – gloss black.
V
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #22, #33, #40 & #42
X Includes item #28.
Kubota Replacement Parts List
(Refer to Engine Owner’s Manual)
Description Kubota Part No.
Engine Oil Filter....................................15853-3243
