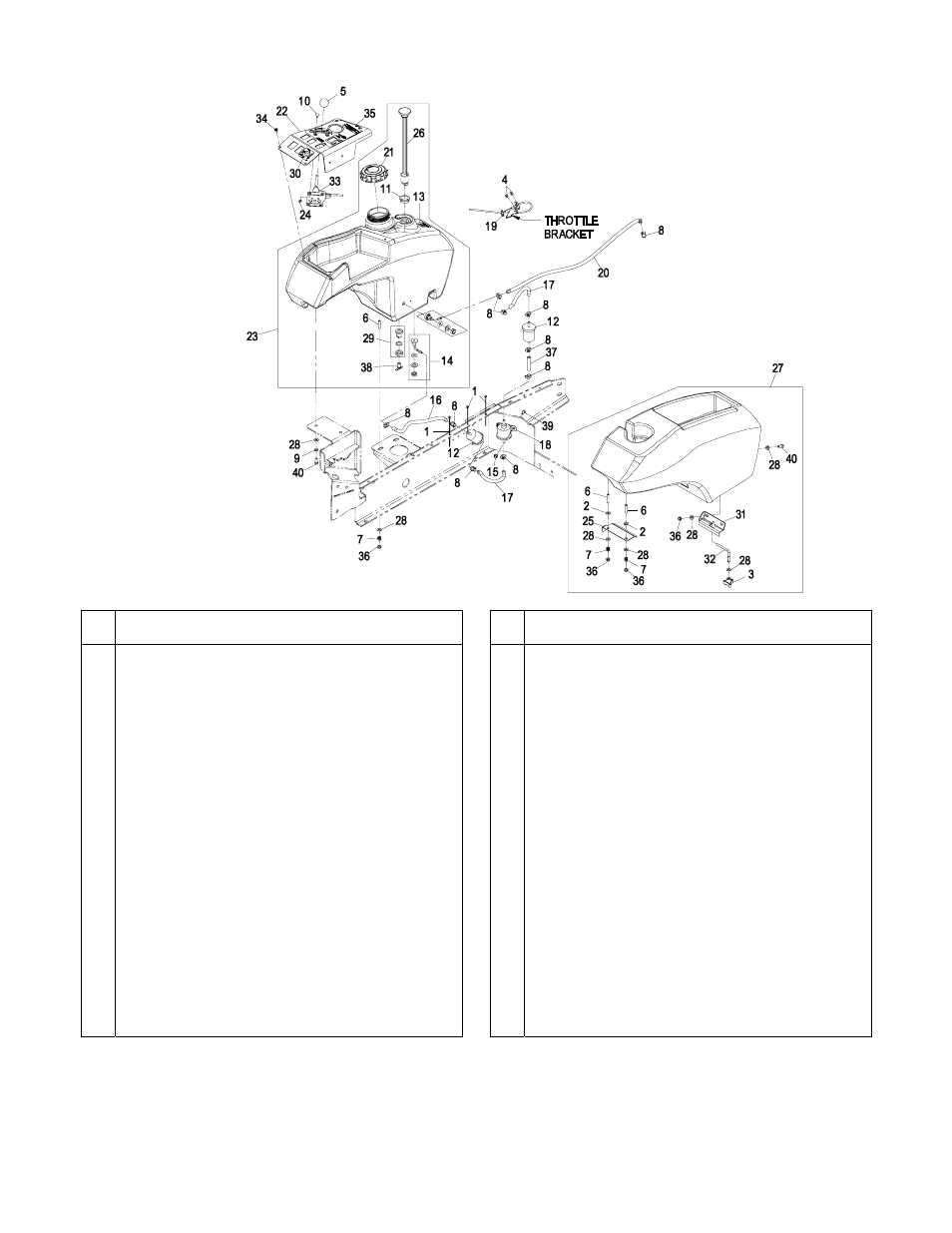

FUEL GROUP
10
Item
Part No.
Description
Qty.
1 1-303287 Tie, Cable 5 1/2 (Small) .........................3
2 1-303334 Washer, Spring Disc 5/16 ......................2
3 1-323385 Knob, 3 Prong........................................1
4 3220-1 Nut, Jam 1/4-28 .....................................2
5 1-603175 Knob, Ball ..............................................1
6Q 1-633023 Stud, Fuel Tank .....................................4
7 1-633349 Spring, Compression .............................4
8 2412-108 Clamp, Hose ..........................................10
9 1-805005 Washer, Lock 5/16 Heavy......................2
10 1-807513 Bolt, Carriage #10-24 x 1/2 ....................2
11 95-8972 Grommet................................................1
12 98-7612 Filter, Fuel..............................................2
13 103-1636 Decal, Diesel Only .................................1
14V 109-6627 Fitting, Fuel Bulkhead ............................2
103-2784 O-Ring ...................................................1
15 32128-33 Nut, Whizlock 1/4-20..............................2
16 110-8752 Hose, Fuel Line 14"................................1
17 110-4111 Hose, Fuel Line 7 1/2"............................2
18 107-0122 Pump, Fuel ............................................1
19 108-5928 Swivel, Cable Stop.................................1
20 109-0284 Hose, Fuel Line 29"................................1
Item
Part No.
Description
Qty.
21 109-0347 Cap, Fuel (Diesel).................................. 1
22 109-2776 Asm, Console W/Decals........................ 1
23 109-4478 Asm, Fuel Tank ..................................... 1
24 3296-2 Nut, Nyloc #10-24 .................................. 2
25 109-1202 Hook, Fender......................................... 1
26 109-1213 Gauge, Fuel........................................... 1
27 109-1226 Asm, Fender.......................................... 1
28 3256-23 Washer, 5/16 SAE................................. 11
29 109-4482 Asm, Fitting 1/4" Npt.............................. 1
109-4483 O-Ring ................................................... 1
30 109-2358 Decal, Ignition........................................ 1
31 109-2572 Bracket, Fender ..................................... 1
32 109-2652 Bolt, Fender........................................... 1
33 109-2660 Cable, Throttle ....................................... 1
34X 109-2661 Screw, PPH #10-24 x 1/2....................... 4
35 109-2698 Decal, Console ...................................... 1
36 3296-47 Nut, Nyloc 5/16-18 Thin ......................... 6
37 110-0047 Hose, Fuel Line 2 3/8" ........................... 1
38 304-46 Valve, Draincock 1/4.............................. 1
39 321-3 Screw, HH 1/4-20 x 5/8.......................... 2
40 322-3 Screw, HH 5/16-18 x 3/4........................ 4
Exmark black touch up spray paint – Gloss black
Q
Use Pro-Lock, Retaining Type (P/N 1-840023, .5ml tube) on stud threads, item #6 going into the tank.
V Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on fuel fitting, item #14.
X Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.
