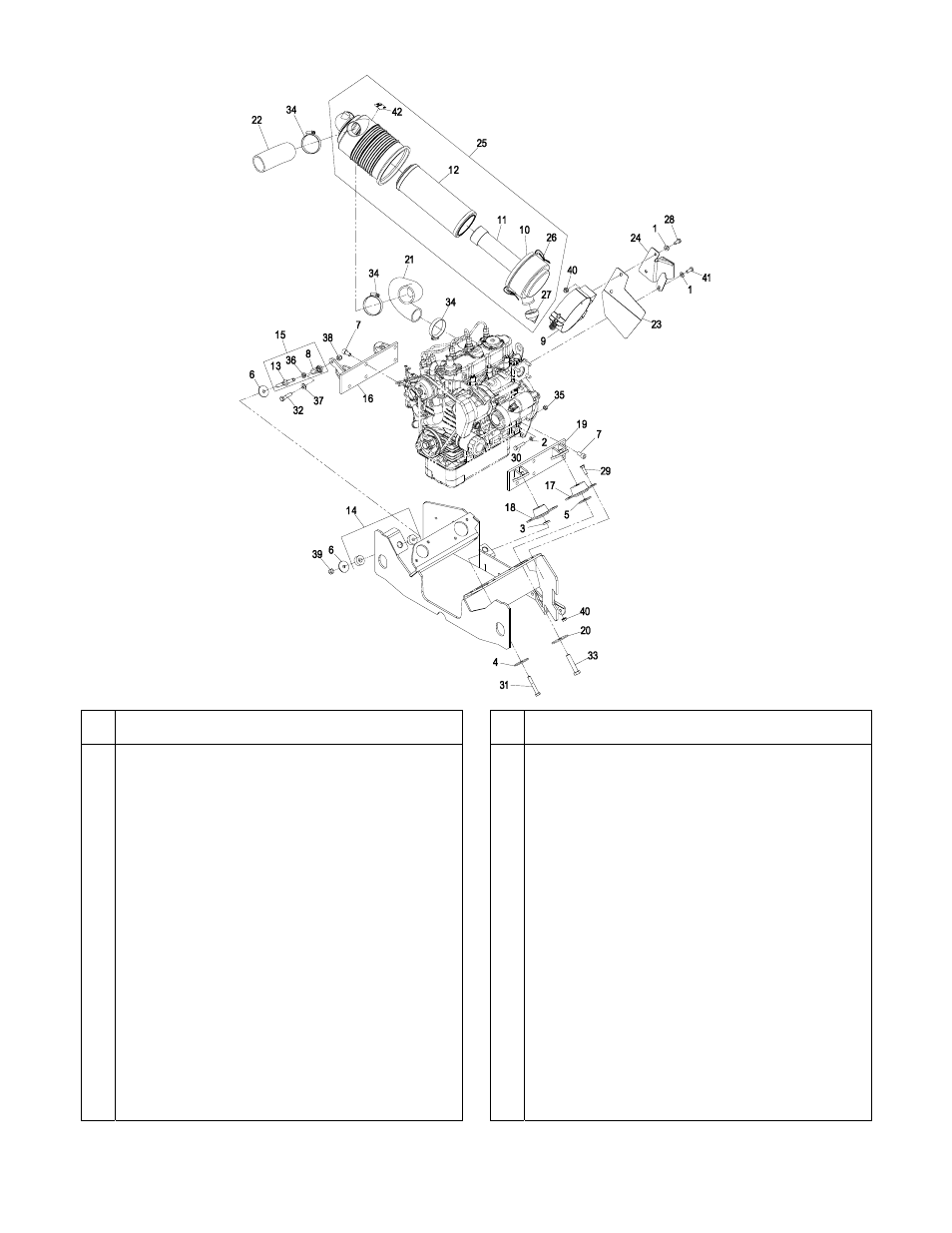

ENGINE GROUP (cont.)
12
Item
Part No.
Description
Qty.
1 1-303334 Washer, Spring Disc 5/16 ......................3
2 1-805005 Washer, Lock 5/16 Heavy......................1
3 66-6480 Washer ..................................................2
4 83-1040 Washer ..................................................2
5 86-1990 Washer ..................................................2
6 93-6099 Washer ..................................................2
7V 98-9322 Screw, SH M10-1.25 x 20mm ................10
8 103-0608 Balljoint ..................................................1
9
103-1058 Bracket, Air Filter ...................................1
10 103-1060 Cover, Air Filter W/Latch........................1
11 103-1326 Filter, Safety Air .....................................1
12 103-1327 Filter, Air ................................................1
13 103-3567 Link, Rear A-T Axial ...............................1
14 103-3568 Isolator, A-T ...........................................1
15 103-3745 Asm, RR A-T .........................................1
16 103-6743-03 Wld, Engine Bracket (RH)......................1
17 103-1022 Isolator, Rear .........................................2
18 103-2613 Isolator, Side..........................................2
19 103-6824-03 Wld, Engine Bracket (LH) ......................1
20 109-1245 Washer ..................................................2
21 109-1832 Hose,
Air Cleaner...................................1
Item
Part No.
Description
Qty.
22 109-1977 Hose, Air Intake ..................................... 1
23 109-2003-03 Shield, Air Cleaner................................. 1
24 109-2019-03 Wld, Bracket Air Cleaner ....................... 1
25 109-3539 Asm, Air Cleaner ................................... 1
26 99-3174 Latch, Nelson Air Cleaner ...................... 2
27 109-2820 Ejector ................................................... 1
28
322-4 Screw, HH 5/16-18 x 7/8........................ 2
29 322-5 Screw, HH 5/16-18 x 1........................... 8
30 322-7 Screw, HH 5/16-18 x 1 1/2..................... 1
31V 323-12 Screw, HH 3/8-16 x 2 1/2....................... 2
32 323-8 Screw, HH 3/8-16 x 1 1/2....................... 1
33V 325-10 Screw, HH 1/2-13 x 2 1/2....................... 2
34 2412-42 Clamp, Hose.......................................... 3
35 3217-6 Nut, Hex 5/16-18.................................... 1
36 3220-3 Nut, Jam 3/8-24 ..................................... 1
37 3256-24 Washer, 3/8 SAE................................... 1
38 3296-39 Nut, Nyloc 3/8-16................................... 1
39 3296-6 Nut, Nyloc 3/8-24................................... 1
40 32128-20 Nut, Whizlock 5/16-18 ........................... 10
41V 33114-020 Screw, HH M8-1.25 x 20mm .................. 1
42 110-0806 Decal, No Starting Fluid......................... 1
Exmark black touch up spray paint – gloss black.
V
Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on screws, item #7, #31, #33 & #41
