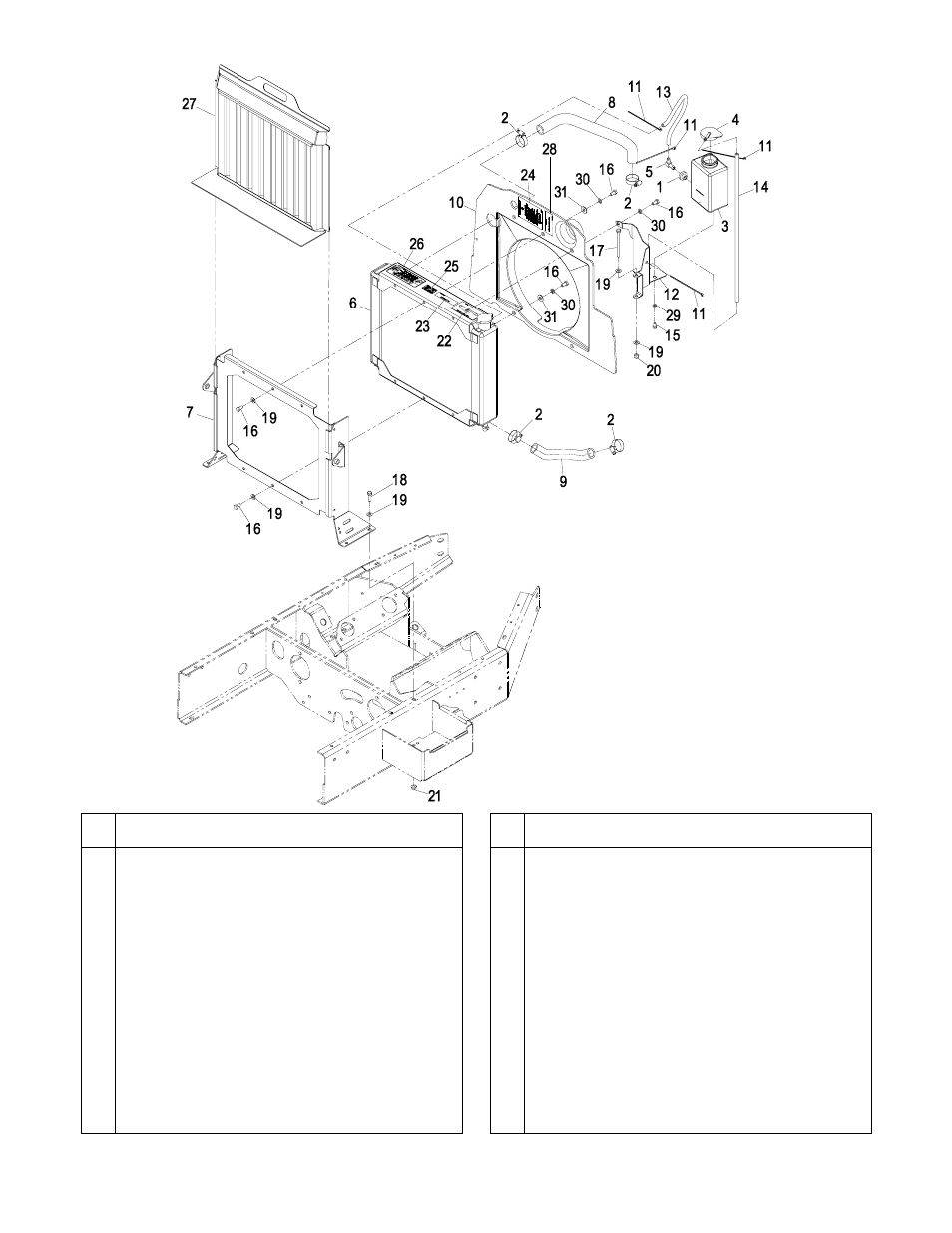

COOLING GROUP

13



































Item


Part No.


Description


Qty.

1

1-513645

Bushing, Fuel Valve ...............................1

2 1-633989 Clamp ....................................................4
3 1-643163 Tank,

Overflow.......................................1

4

1-643164

Cap, Overflow Tank ..............................1

5 1-643259 Fitting,

Elbow .........................................1

6 109-2768 Asm,

Radiator

W/Decals........................1

1-643161 Cap,

Radiator.........................................1

7

103-8332-03 Wld, Radiator Support............................1

8

103-8824

Hose, Upper Radiator ............................1

9

103-8825

Hose, Lower Radiator ............................1

10 109-3497 Asm,

Shroud

W/Decals..........................1

11

1-303287

Tie, Cable 5 1/2 (Small) .........................4

12 109-2209-03 Bracket,

Overflow

Bottle.........................1

13

109-2221

Hose, .31 ID x 14"..................................1

14

109-2669

Hose, .25 ID x 22"..................................1

15

321-2

Screw, HH 1/4-20 x 1/2 ..........................2

Item


Part No.


Description


Qty.

16

322-2

Screw, HH 5/16-18 x 5/8........................ 11

17

322-23

Screw, HH 5/16-18 x 3 3/4..................... 1

18

322-5

Screw, HH 5/16-18 x 1........................... 4

19 3256-23

Washer,

5/16

SAE................................. 12

20

3296-29

Nut, Nyloc 5/16-18 ................................. 1

21 32128-20 Nut,

Whizlock

5/16-18 ........................... 4

22 1-643339 Decal,

Belt Routing................................ 1

23 98-5954

Decal,

Danger........................................ 1

24 103-0223 Decal,

Shell

Coolant .............................. 1

25 103-2076 Decal,

Caution ....................................... 1

26 103-5881 Decal,

Guard ......................................... 1

27 109-3147 Asm,

Radiator

Screen............................ 1

28 110-3842 Decal,

Antifreeze ................................... 1

29 3253-3

Washer,

Lock

1/4 .................................. 2

30 3253-4

Washer,

Lock

5/16................................. 5

31 3256-3

Washer,

5/16

Std................................... 4

Exmark black touch up spray paint – gloss black.
