2. INTRodUCTIoN & SPECIFICATIoNS
3. ASSEMBLY
unpack the heater and check contents. should there be any
damaged or missing parts contact your sealey Dealer
immediately.
3.1 ASSEMBLING FRAME ANd WHEELS FoR AB7081/AB7081SS
3.1.1 slide axle through wheel support frame, slide a bushing and flat
washer (A) to each end of the axle.
3.1.2 Install wheels with valve stem on the outside, slide flat washer (B)
onto the axle and then insert a cotter pin and bend the legs of the
pin with pliers to secure. snap the wheel caps onto the flat
washer (B).
3.1.3 Place heater on wheel support frame ensuring that the air inlet
is by the wheels and place the heater onto the frame lining up
the holes on the fuel tank flange with holes on the wheel
support frame.
3.1.4 Place handle on fuel tank flange and line up with the wheel
support frame fixing holes. Insert bolts provided through the fuel
tank flange and both frames and secure finger tight only with nuts
and washers provided.
3.1.5. When assembly is complete, securely tighten all nuts.

WARNING! do NoT use AB7081 / AB7081ss without the support
frame fully assembled.
3.2 ASSEMBLING ToP HANdLE
3.2.1 Align the holes in the handle with the holes in the upper housing.
Insert and tighten the screws provided with a cross headed
screwdriver as shown in fig.4.
3.3 ASSEMBLING THE CABLE TIdIES FoR AB458 & AB708
3.3.1 Mount the cable tidies onto either end of the panel on the other
side of the heater from the main control panel, as shown in fig.1.
Hook the two tabs on each moulding into the holes at either end
of the panel. the tongue on each moulding should now be lying
on the face of the panel. secure each moulding in place with a
screw through the tongue and into the ready made holes in the
panel.

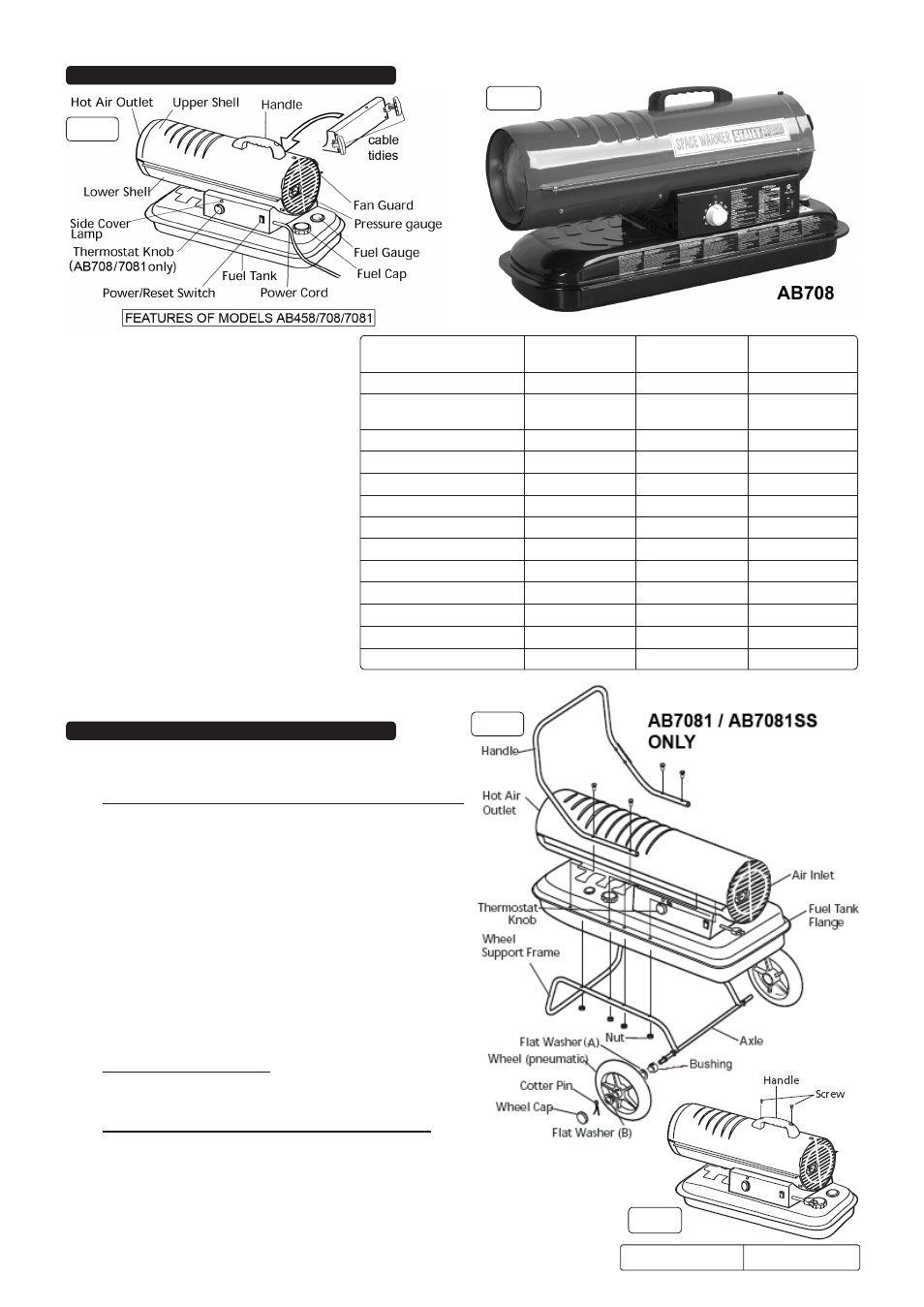

fig. 1
ModEL AB458.V2 AB708.V2
AB7081.V2 /
AB7081SS
Btu/hr output (kW) 45000 (13.2) 70000 (20.5) 70000 (20.5)
fuel oil Paraffin / Kerosene
/ Diesel
Paraffin / Kerosene
/ Diesel
Paraffin / Kerosene
/ Diesel
Maximum operating hours 14hr 9hr 9hr
fuel tank capacity (Litres) 19.0 19.0 19.0
Electrical Input 230V 5A 230V 5A 230V 5A
Power cable (mtr) 2.1 2.1 2.1
Automatic shut off Yes Yes Yes
net/gross Weight (Kg) 12.7/14.57 12.7/14.5 15/17.8
transport wheels no no Yes
Air flow (cfm) 170 240 240
Pump pressure PsI ±10% 3 3.7 3.7
Heated Volume 8800ft³/249mtr³ 13600ft³/385mtr³ 13600ft³/385mtr³
consumption (Litre per hour) 1.3 2.0 2.0
Our range of paraffin, kerosene and diesel heaters
represent excellent value for money. Workshop tried
and tested, the range includes two economy portable
models, AB458 and AB708 which are both supplied
without wheels. A wheeled version of the AB708 is
available as model AB7081.
All models except AB458 have an adjustable
thermostat which cuts in as the temperature set is
reached. these are dual fuel models running on
either paraffin, kerosene or diesel. All models are
fitted with a fuel tank gauge and heavy duty filler
caps. A specially designed burner head in a stainless
steel combustion chamber ensures a more thorough
burn of fuel which means greater fuel economy and
maximum heating effect. the compressor is
protected by extra large filter elements.
The AB heaters are fitted with a flame-out device
which cuts the fuel supply when the flame is
inadvertently extinguished.
WARNING! This heater is not suitable for use
with Bio-Diesel; use of Bio-Diesel will damage
the filter and seals. Damage caused by use of
Bio-Diesel will not be covered by warranty.
fig.1
fig.2
fig.4
fig.3
Original Language Version AB458.V2, AB708.V2,
AB7081.V2, AB7081ss Issue no: 4 - 19/04/12
