FLASH Upgrade
Mode Switch Bank Settings and Options B-5
B.3.2 Installing the FLASH Module
To install a FLASH module, refer to Figure B-3 and proceed as follows:
1. With the FLASH module oriented as shown in Figure B-3 , insert the FLASH module down
between the connector.
2. Pivot the FLASH module downward so the connector clips align with the two side notches of
the FLASH module and the connector clips lock the FLASH module into place.

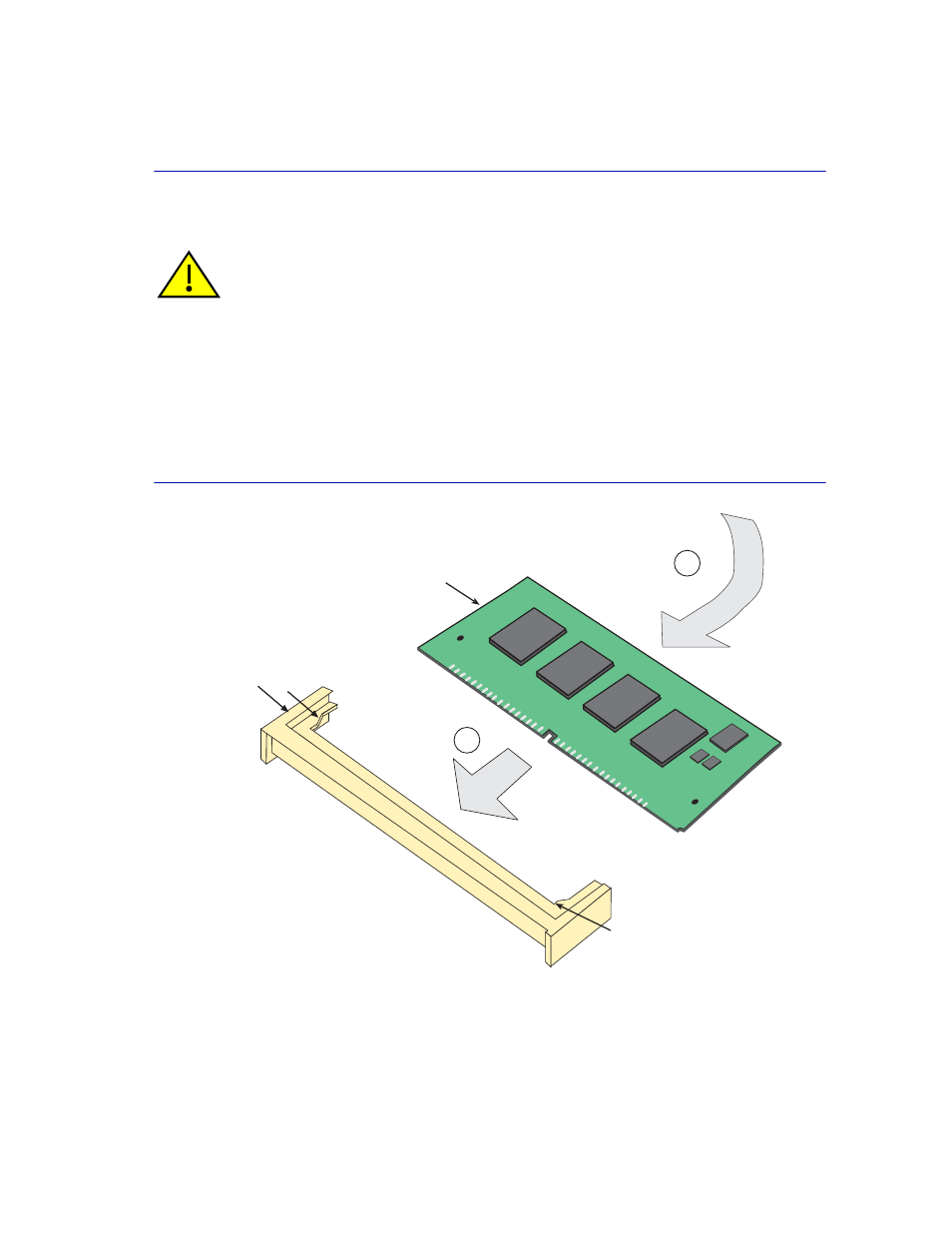

Figure B-3 Installing the FLASH
CAUTION: Observe all antistatic precautions when handling sensitive electronic
equipment.
Flash
1
2
Connector
Clip
Clip
3387_11
