ELECTRO-VOICE ® XLC TM Rigging Manual 4

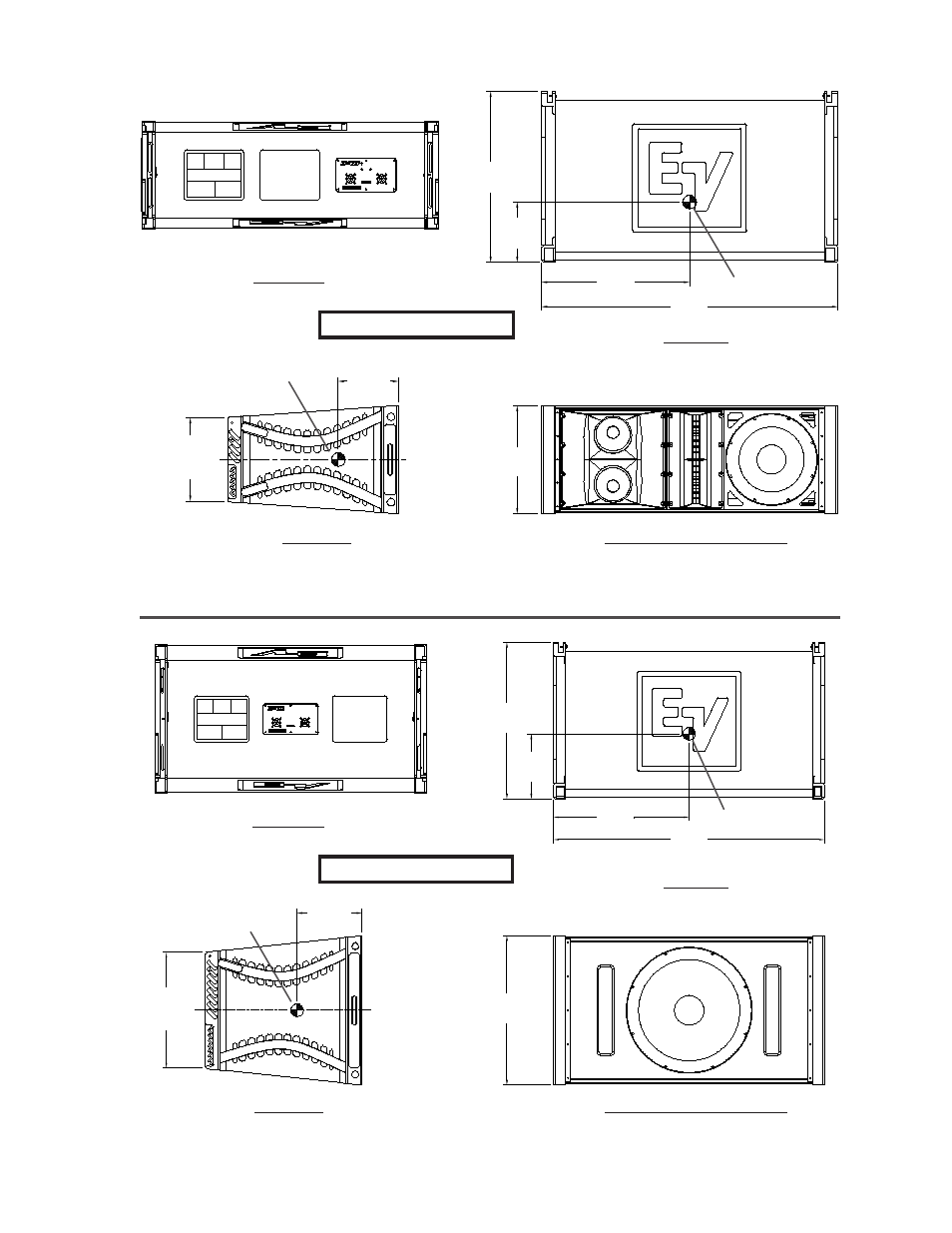

Figure 1b: XLC-127+ Loudspeaker System
Front View (Without Grille)
Weight: 111 lb (50.3 kg)
Top View
14.25in
(362mm)
Center of Gravity
Side View
Rear View
Center of Gravity
7.94in
(202mm)
Ref
22.50in
(572mm)
19.56in
(497mm)
39.00in
(991mm)
CL
11.02in
(280mm)
Cent.
Figure 1c: XLC-118 Loudspeaker System
Front View (Without Grille)
Weight: 120 lb (54.4 kg)
Top View
21.44in
(545mm)
Center of Gravity
Side View
Rear View
16.64in
(423mm)
Cent.
9.38in
(238mm)
Ref
9.38in
(238mm)
22.50in
(572mm)
19.50in
(495mm)
39.00in
(991mm)
CL
7.94in
(202mm)
Center of Gravity
