ELECTRO-VOICE ® XLC TM Rigging Manual 17
These guidelines provide a simplified rating for typical arrays based on the:
1. Vertical angle of each enclosure
2. Total weight of that enclosure plus all of the enclosures and rigging hung below it.
3. Angles of the force components on the front button bars and the rigging frames relative to the
enclosures.
4. Angles of the force components on the rear swing arms, quick-release pins and rigging frames
relative to the enclosures.

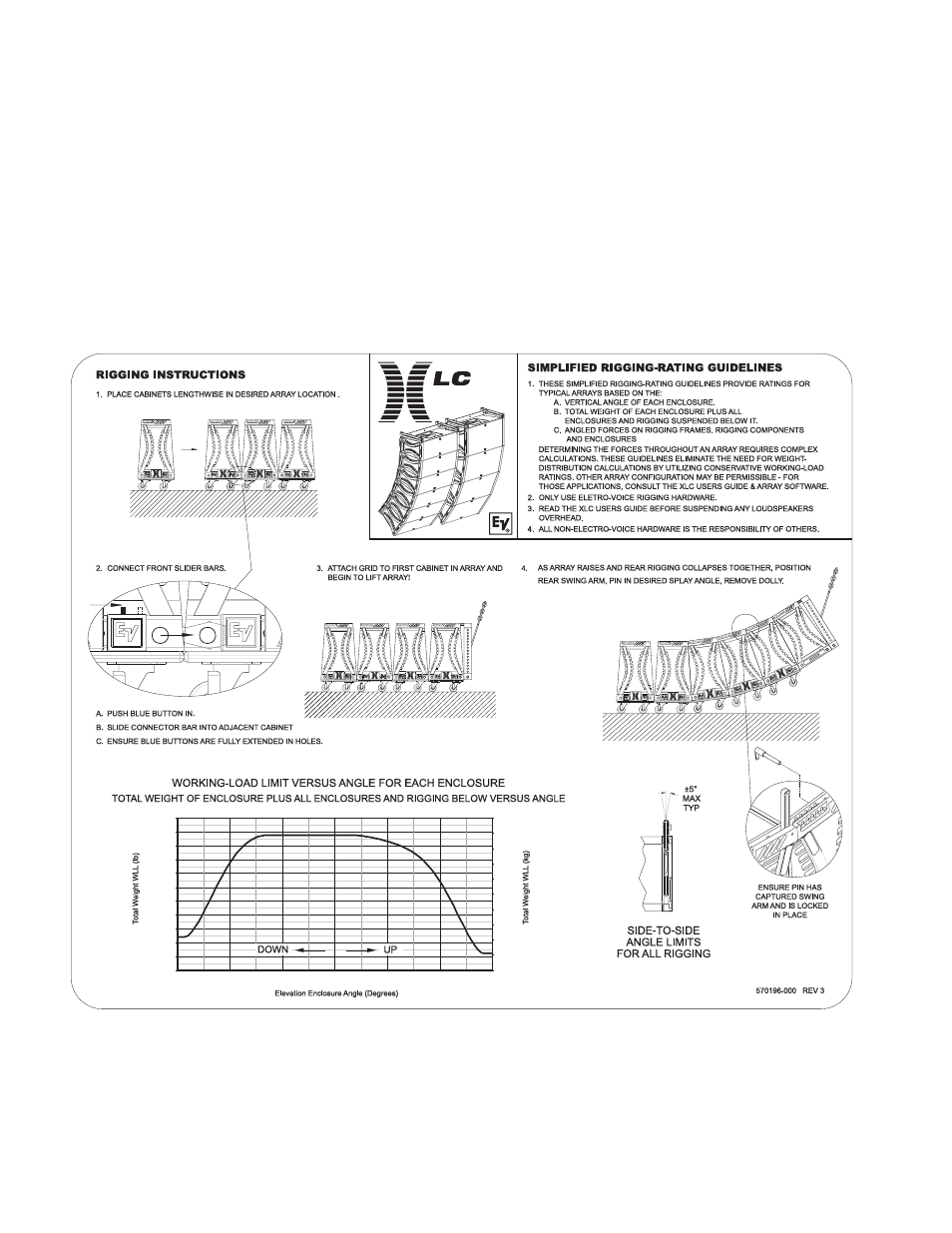

Figure 7:
Simplified XLC Rigging-Rating Guidelines
0
200
400
600
800
1000
1200
1400
1600
1800
2000
2200
0
200
400
600
800
1000
100
300
500
700
900
-90 -60 -30 -0 30 60 90
