Thank you for purchasing EAW products

I f y o u h a v e q u e s t i o n s a b o u t D S A R e p a c k a g i n g p l e a s e c o n t a c t t h e E AW S e r v i c e D e p a r t m e n t b y o n e o f t h e m e t h o d s b e l o w, o r b y e - m a i l
a t s e r v i c e @ e a w . c o m .

O n e M a i n S t r e e t , W h i t i n s v i l l e, M A 0 1 5 8 8 t e l 8 0 0 9 9 2 5 0 1 3 / 5 0 8 2 3 4 6 1 5 8 f a x 5 0 8 2 3 4 8 2 5 1 we b w w w. e aw. c o m

EAW P/N RD0172 (A) 13SEPT04

E AW i s t h e w o r l d w i d e t e c h n o l o g i c a l a n d m a r k e t l e a d e r i n t h e d e s i g n a n d m a n u f a c t u r e o f h i g h - p e r f o r m a n c e , p r o f e s s i o n a l l o u d s p e a k e r s y s t e m s .

5. If returning the product to EAW or to an authorized EAW distributor, include

in the shipping carton:
a. If under warranty, proof of the original delivery date or a copy of the

original sales receipt.

b. A description of the suspected defect or malfunction and the conditions,

if any, which caused the problem.

c. A return address.

6. Install and secure the cover (A or C).

7. If being returned to EAW, write the RA number so it is prominently

displayed on the outside of the shipping carton. Any products received
without an assigned RA number that is clearly visible upon arrival at
EAW will be refused.

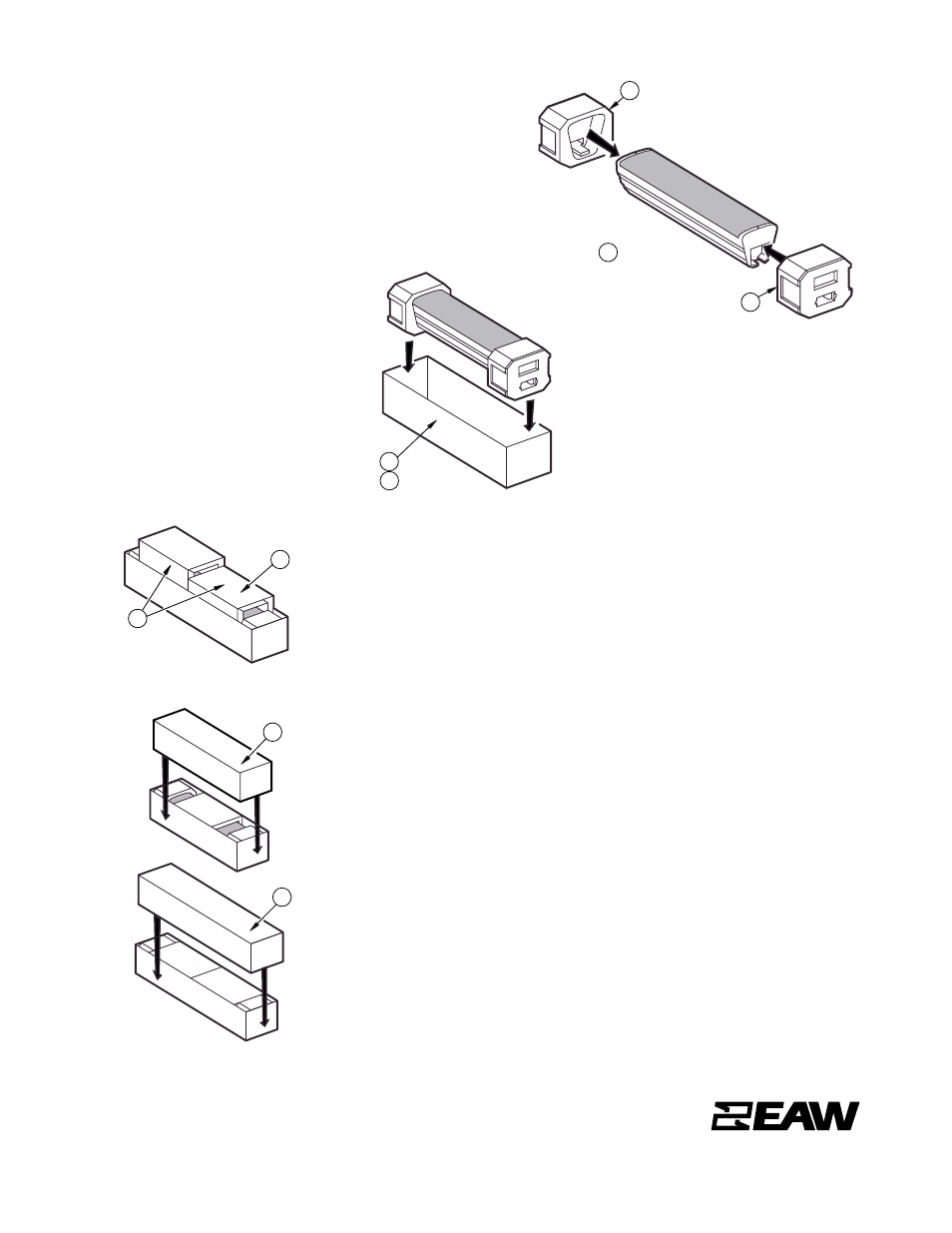

Repackaging the DSA Loudspeakers

NOTE: For clarity these instructions do not show
the poly bag (G) around the loudspeaker.

1. Place loudspeaker to be reshipped into the poly bag.

2. Insert a foam end cap (E) onto each end of the loudspeaker

B

D

FOR DSA230

FOR DSA250

C

DSA250

LOUDSPEAKER

REPACKAGING

A

DSA230

LOUDSPEAKER

REPACKAGING

3. Lay the loudspeaker/poly bag

/end caps face up into the box.

The DSA230 and the DSA250 loudspeakers differ in length. They are both
secured in the their packaging by similar parts. The longer DSA250 requires
two cardboard top pads (F) and the shorter DSA230 requires only one.

4. Insert the top pad/s (F) over the cradled loudspeaker.

1 TOP PAD REQUIRED FOR

PACKAGING THE SHORTER

DSA230 LOUDSPEAKER

F

2 TOP PADS REQUIRED

FOR PACKAGING THE

LONGER DSA250 LOUDSPEAKER

F

POLY BAG, ITEM G,

NOT SHOWN

FOR CLARITY

G

E

E
