7

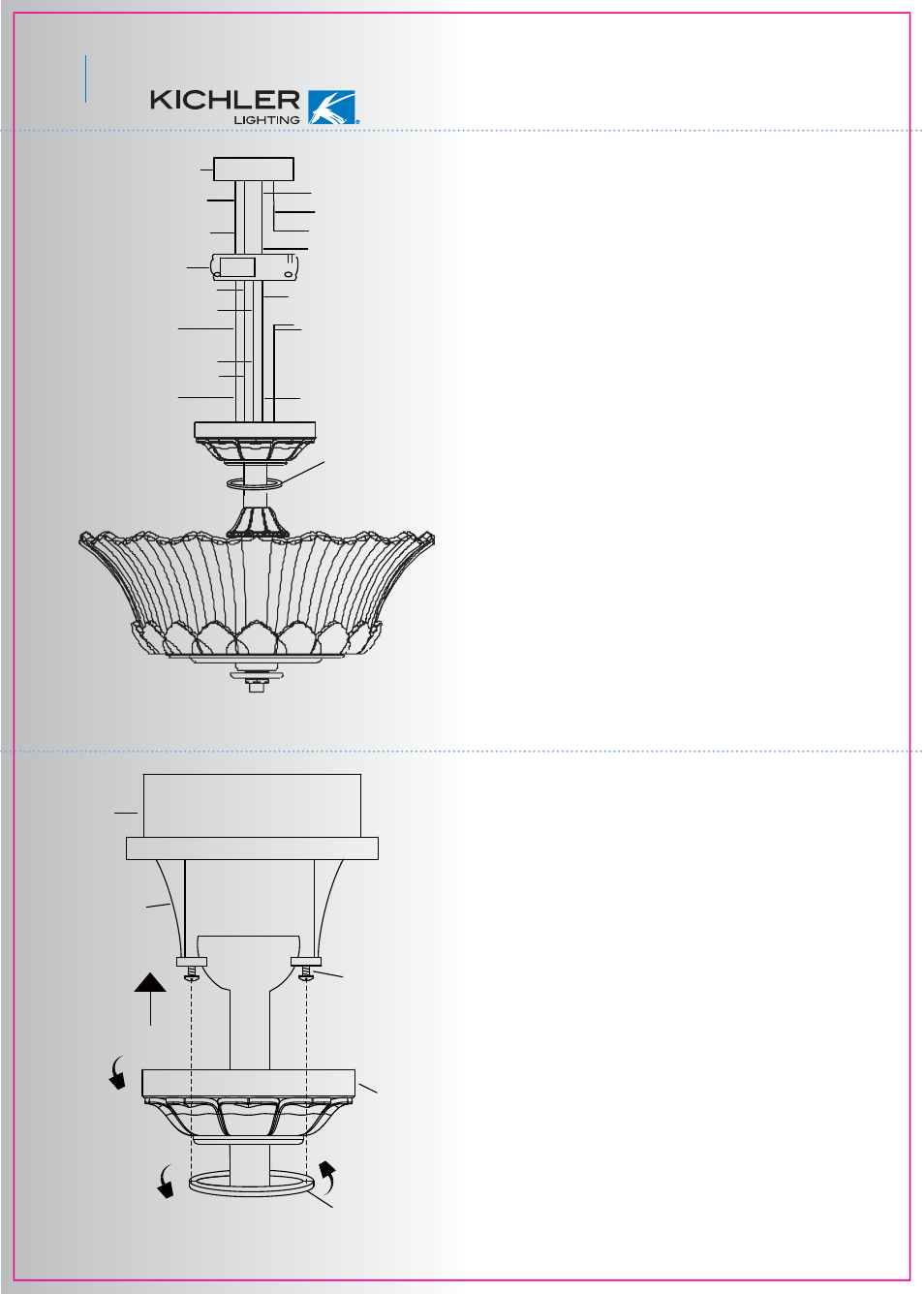

Fig. 15
Fig. 16
8. INSTALLING THE CEILING CANOPY
Step 2. Slide the canopy up to ceiling fan and
onto the two screws on hanger bracket.
Rotate the canopy clockwise and tighten the
two screws. Next, while holding the canopy
with one hand, slide the canopy cover over the
screws and rotate clockwise until tight.
Step 3. Receiver to House Supply Wires
Electrical Connections: Connect the black
(hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect
the white(neutral) wire from the ceiling to the
white wire marked "AC in N" from the Receiver.
Secure the wire connections with the plastic
wire nuts provided. (Fig. 15)
Step 4. If your outlet box has a ground wire
(green or bare copper) connect it to the fan
ground wires
Secure the wire connection with
a plastic nut provided.
NOTE: Carefully tuck the wire connections up
into the outlet box. (Fig. 15)
Warning: One last time, make sure the “Check
Tab” at the bottom of the hanger bracket is
properly seated in the “Registration Slot” on the
side of the hanger ball before attaching the
canopy to the bracket. Failure to properly seat
the “Check Tab” could damage the electrical
wires when to ceiling fan blade direction is
changed while the fan is running.
NOTE: The transmitting unit must be installed
at a maximum distance of 30 feet from the
ceiling fan for proper signal transmission
between the transmitting unit and the fan's
receiving unit.
Step 1. Make sure all of the electrical connec-
tions are tucked neatly into ceiling outlet box.
NOTE: You may need to adjust the canopy
mounting screws as necessary until the
canopy and canopy cover are have a snug fit.
(Fig.16)
white (neutral)
Ground Wire
White("AC IN N")
Copper (ground)
White("to motor N")
Green or bare
White (neutral)
Black (motor)
Orange
(For upper light)
Blue (for bottom light)
Black ("to motor L")
Receiver
Black("AC" IN L")
Black (hot)
Outlex box
Canopy cover
Orange
Blue
Outlet box
Hanger bracket
Screw
Canopy
Canopy cover
